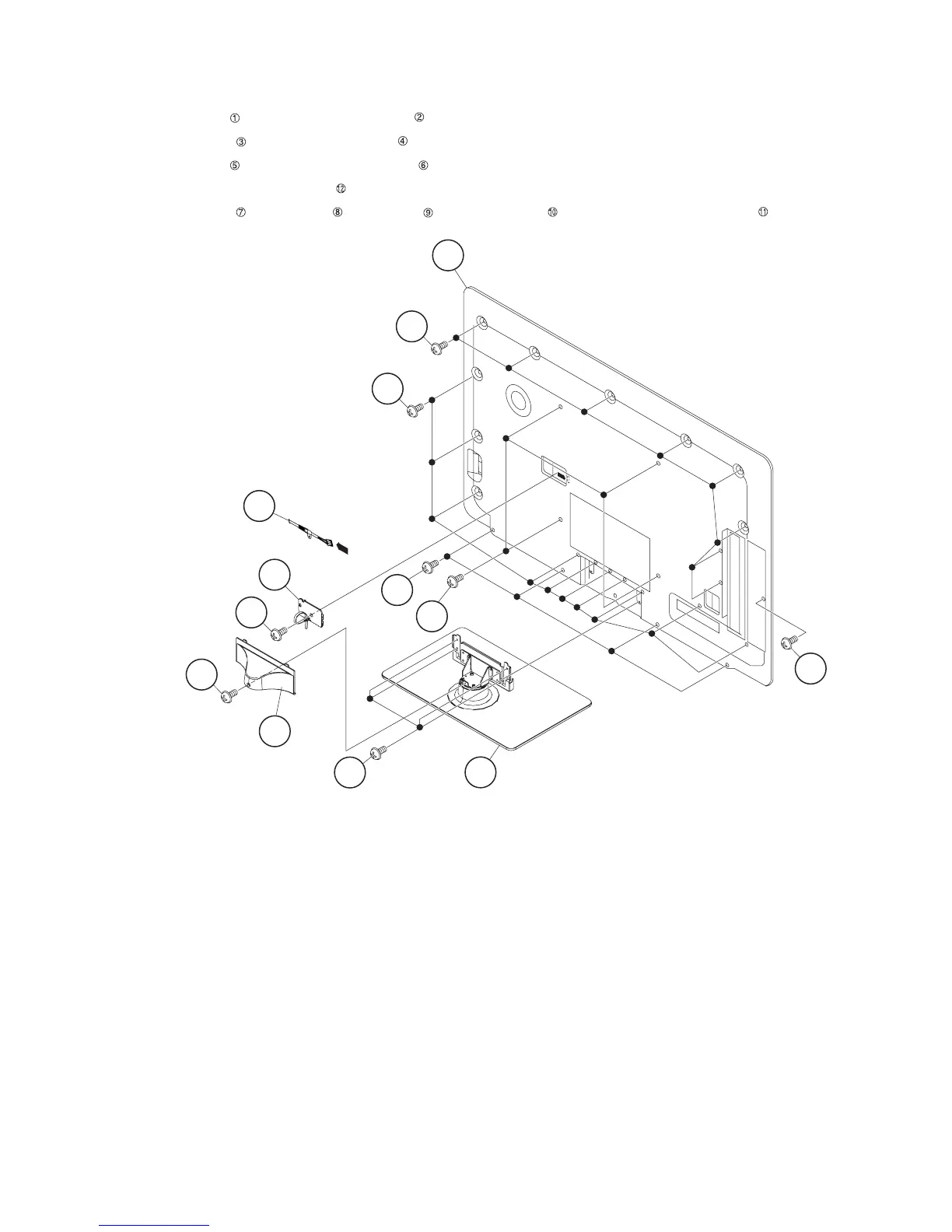

[3] REMOVING OF MAJOR PARTS (LC-52LE820E)
1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 1 lock screw and detach the Support Cover .
2. Remove the 4 lock screws and detach the Stand Unit .
3. Remove the 1 lock screw and detach the AC Cord Cover .
4. Disconnect AC wire and detach the AC Cord .
5. Remove the 4 lock screws , 4 lock screws , 1 lock screw and 18 lock screws and detach the Rear Cabinet Ass’y .
9
Rear Cabinet Ass'y
10
11
10
6AC Cord Cover
5
1
2Support Cover
4
Stand Unit
8
7
3
12AC Cord
[AC]
[AC]
