Sharp LC-40LE820E Service Manual

LC-40/46/52LE820E, LC-40/46LU820E
4 – 6

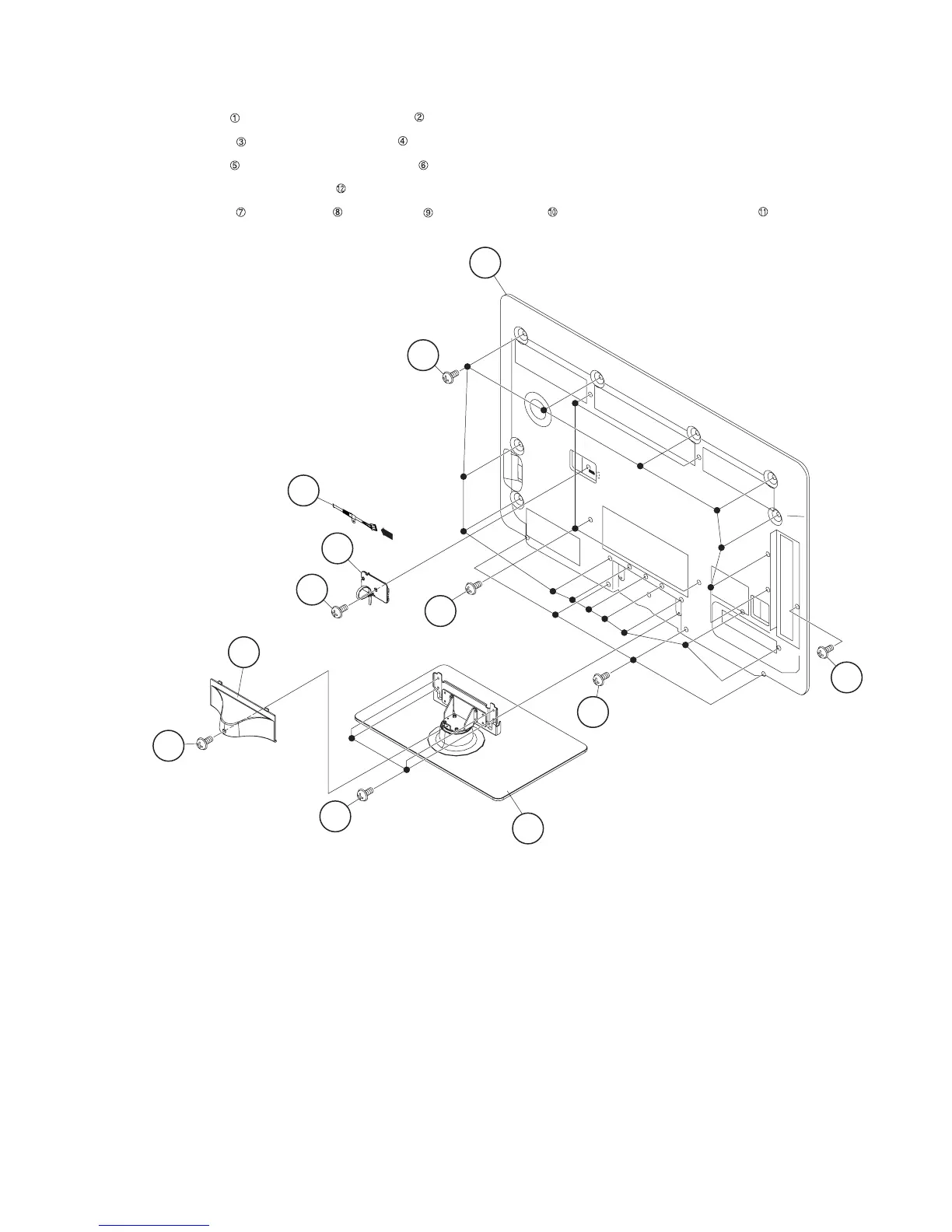

[2] REMOVING OF MAJOR PARTS (LC-46LE820E/LU820E)
1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 1 lock screw and detach the Support Cover .
2. Remove the 4 lock screws and detach the Stand Unit .
3. Remove the 1 lock screw and detach the AC Cord Cover .
4. Disconnect AC wire and detach the AC Cord .
5. Remove the 4 lock screws , 4 lock screws , 1 lock screw and 16 lock screws and detach the Rear Cabinet Ass’y .
[AC]
9
Rear Cabinet Ass'y
10
11
6AC Cord Cover
5
2Support Cover
3
4 Stand Unit
7
8
1
12AC Cord
[AC]
