Sharp LC-40LE820E Service Manual

LC-40/46/52LE820E, LC-40/46LU820E
2 – 1
LC-40LE820E
Service Manual
CHAPTER 2. Handling Notes LCD Module

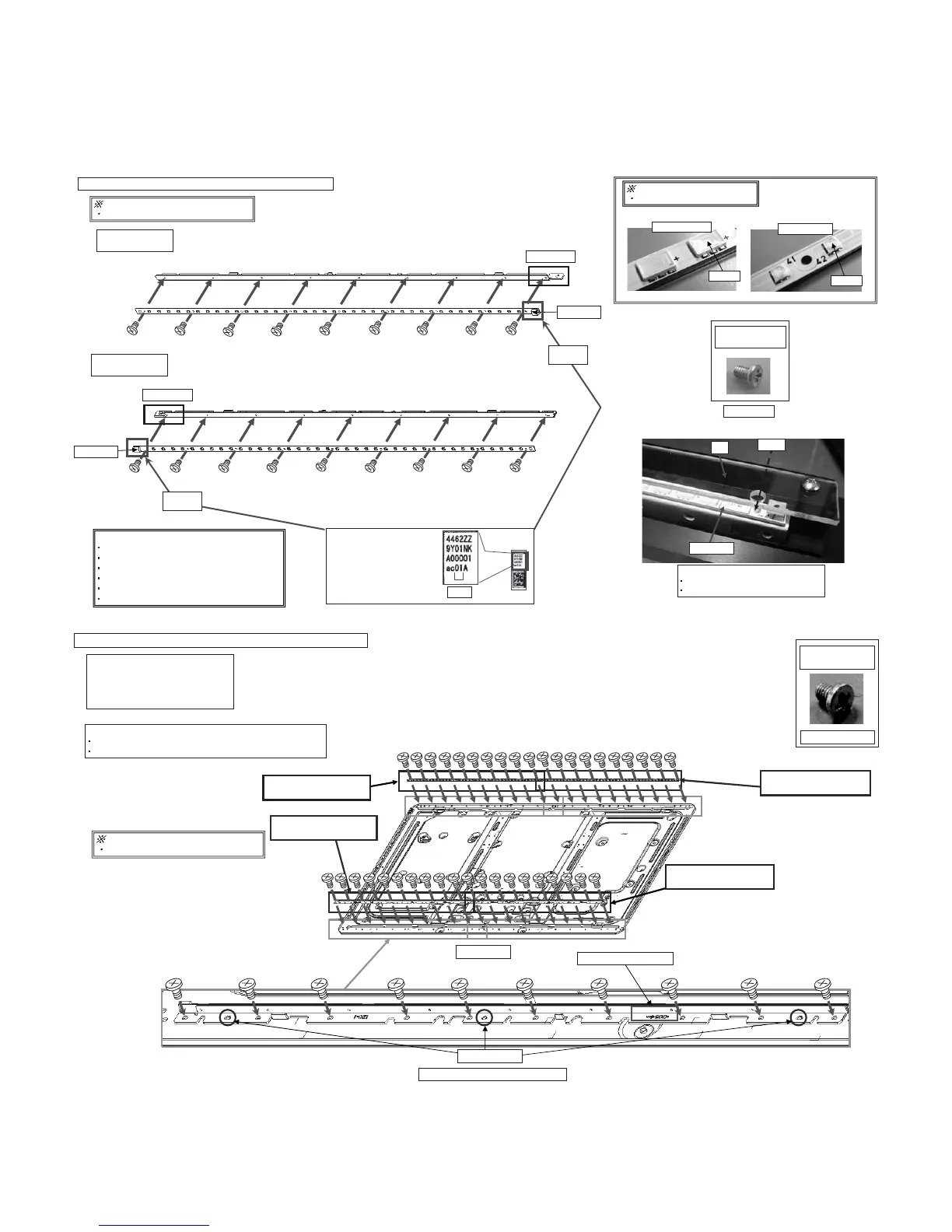

[1] Fix the LED-PWB at the LED PWB Angle
1. LC-40LE820E/LU820E
1. Fix the LED-PWB at the LED-PWB Angle with Screw.
Screw x36
LX-SZ2203TPZZ
Angle(A) x2
LANGT0064TPZZ
Angle(B) x2
LANGT0065TPZZ
Use the JIG
Note
When fixing LED-PWB, Use the JIG.
Don't make a scratch at LED chips.
JIG
LED-PWB
Driver
connector
connector
cutting side
cutting side
important matter
Don't use different Rank of LED-PWB.
LED-Chip
LED-Chip
Use for other model
Use for this model
important matter
Don't mistake fitting LED-PWB.
Note
Use same rank LED-PWB in a module.
Use ionized air blowers.
Use conductive wristband or conductive shoes.
Use JIG for hold angle.
Don't touch LED surface as much as possible.
Don't touch LED with screw or driver bit.
Identify the LED rank by the
alpha-numerical description
of 2 digits.
(For example "01")
2 digits
reverse side
of connector
reverse side
of connector
?
1. Fix the LED-PWB Angle unit on BL-chassis with screw.
Note
When fixing LED unit, connector of LED-PWB is outside
Don't make a scratch at LED chips.
Fix the LED-PWB Angle unit order
1. Check the parts code.
2. Fit the LED-PWB Angle unit.
3. Check fitting positioning pin.
4. Fix them with screw.
important matter
Don't use different Rank of LED-PWB.
Screw x40
LX-BZ2103TPZZ
screw lock(Bule)
LED-PWB Angle unit (A)
(LANGT0064TPZZ)
LED-PWB Angle unit (B)
(LANGT0065TPZZ)
LED-PWB Angle unit (A)
(LANGT0064TPZZ)
LED-PWB Angle unit (B)
(LANGT0065TPZZ)
Check the parts code
S-PWB side
positioning pin
Check fitting positioning pin firmly.
