Sharp LC-40LE820E Service Manual

LC-40/46/52LE820E, LC-40/46LU820E
2

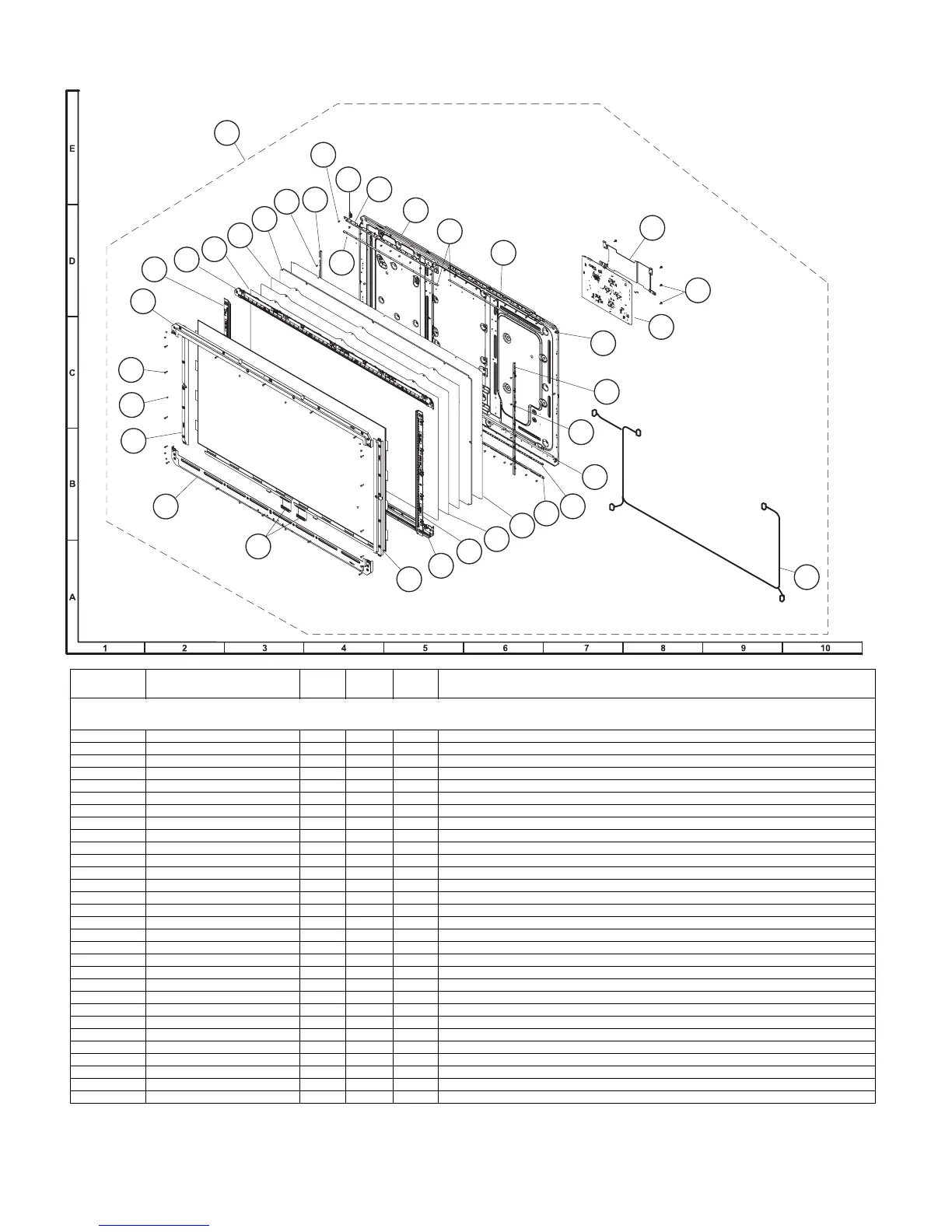

[1] LCD PANEL MODULE (LC-40LE820E/LU820E)
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[1] LCD PANEL MODULE (LC-40LE820E/LU820E)
1 R1LK400D3LWF0Y DL N P 40" LCD Panel Module Unit
2 CANGK4593TP01 N P Bezel Ass'y (Top)
3 CANGK4594TP01 N P Bezel Ass'y (Bottom)
4 CANGK4595TP01 N P Bezel Ass'y (L/R), x2
5 CHLDZ4419TP01 N P P Chassis Ass'y (Top)
6 CHLDZ4420TP01 N P P Chassis Ass'y (Bottom)
7 CHLDZ4421TP01 N P P Chassis Ass'y (L)
8 CHLDZ4422TP01 N P P Chassis Ass'y (R)
9 POFMD0381TPZZ N P DBEF Sheet
10 POFMA0924TPZZ N P Lens Sheet
11 PSLDK3253TPZZ N P Micro Lens Sheet
12 PLGPA0526TPZZ N P Light Guide Plate
13 PREFL3003TPZZ N P Reflection Sheet
14 QCNWN2441TPZZ N P LED Cable
15 LHLDWA300WJKZ N P Wire Holder, x3
16 LHLDZ4312TPZZ N P Cable Guide, x2
17 RUNTK4462TPZZ N P LED PWB Unit, x4
18 LANGT0064TPZZ N P LED PWB Angle A, x2
19 LANGT0065TPZZ N P LED PWB Angle B, x2
20 CCHSM0105TP01 N P BL Chassis Ass'y
21 PCUSG3392TPZZ N P Guide Cushion
22 RUNTK4512TPZC N P LCD CONTROL Unit
23 PRDARA886WJFW N P LCD CONTROL Unit Cover
24 QPWBM1007TPZZ N P CS-FFC, x2
25 LX-BZ2103TPZZ N P Screw, x8 (Cable Guide)
26 LX-BZ2103TPZZ N P Screw, x40 (LED PWB Angle)
27 LX-SZ2203TPZZ N P Screw, x36 (LED PWB Unit-LED PWB Angle)
28 XBPS730P08KS0 N P Screw, x6 (LCD CONTROl Unitx2/LCD CONTROL Unit Coverx4)
29 LX-EZ0002TPZZ N P Screw, x10 (Bezel-P Chassis)
30 LX-BZA369WJF7 N P Screw, x18 (Bezel-BL Chassis)
2
3
4
4
5
8
6
7
9
11
10
12
13
14
15
15
16
16
25
25
17
17
18
19
19
20
21
22
26
1
27
23
24
28
30
29
