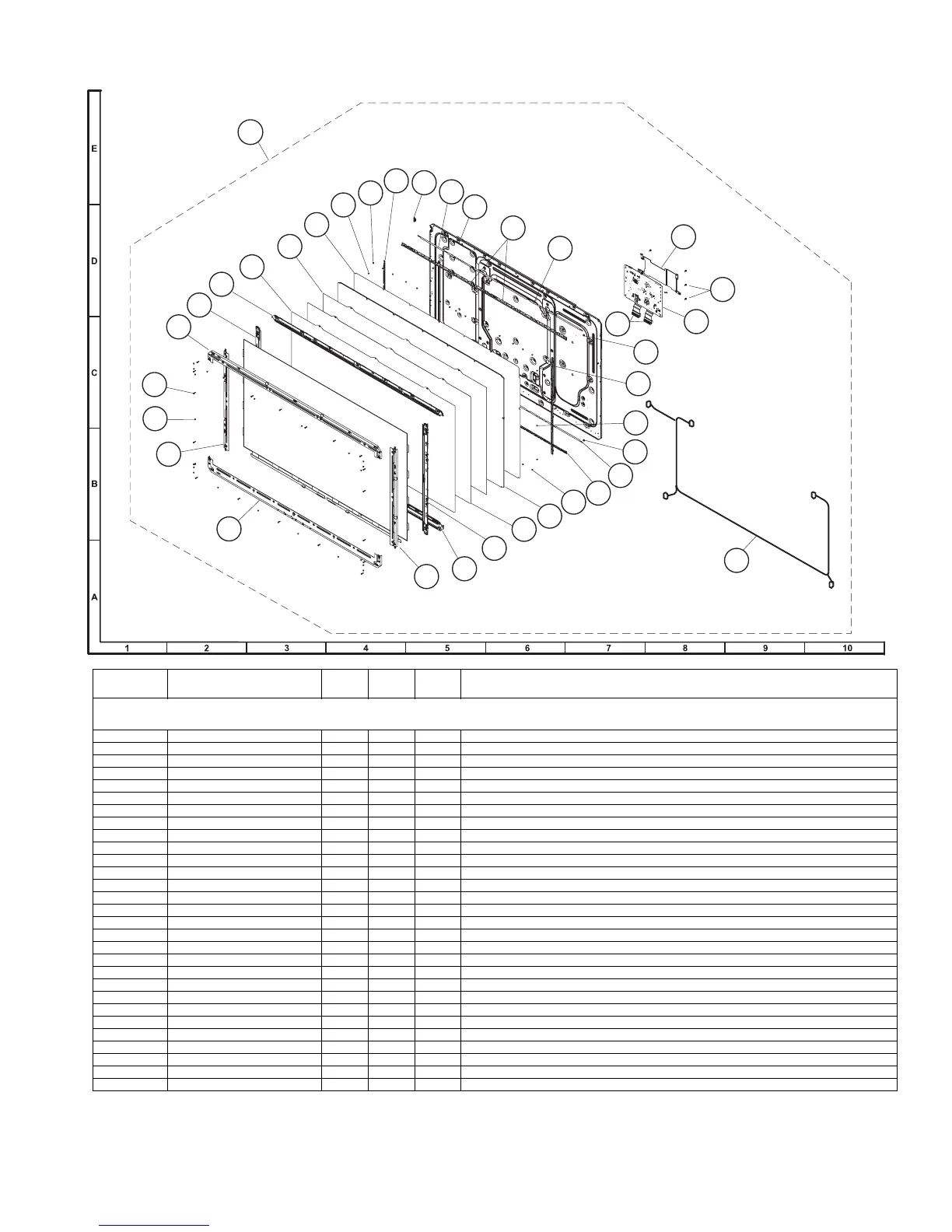

[2] LCD PANEL MODULE (LC-46LE820E/LU820E)
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[2] LCD PANEL MODULE (LC-46LE820E/LU820E)
1 R1LK460D3LWA0Y DY N P 46" LCD Panel Module Unit
2 CANGK4587TP01 N P Bezel Ass'y (Top)
3 CANGK4588TP01 N P Bezel Ass'y (Bottom)
4 CANGK4589TP01 N P Bezel Ass'y (L/R), x2
5 CHLDZ4411TP01 N P P Chassis Ass'y (Top)
6 CHLDZ4412TP01 N P P Chassis Ass'y (Bottom)
7 CHLDZ4413TP01 N P P Chassis Ass'y (L/R), x2
8 POFMD0380TPZZ N P DBEF Sheet
9 POFMA0923TPZZ N P Lens Sheet
10 PSLDK3251TPZZ N P Micro Lens Sheet
11 PLGPA0525TPZZ N P Light Guide Plate
12 PREFL2902TPZZ N P Reflection Sheet
13 QCNWN2440TPZZ N P LED Cable
14 LHLDWA300WJKZ N P Wire Holder, x3
15 LHLDZ4315TPZZ N P Cable Guide, x2
16 RUNTK4461TPZZ N P LED PWB Unit, x4
17 LANGT0060TPZZ N P LED PWB Angle A, x2
18 LANGT0061TPZZ N P LED PWB Angle B, x2
19 CCHSM0103TP01 N P BL Chassis Ass'y
20 PCUSG3392TPZZ N P Guide Cushion
21 RUNTK4437TPZE N P LCD CONTROL Unit
22 PRDARA886WJFW N P LCD CONTROL Unit Cover
23 QPWBM1040TPZZ N P CS-FFC, x2
24 LX-BZ2103TPZZ N P Screw, x8 (Cable Guide)
25 LX-BZ2103TPZZ N P Screw, x32 (LED PWB Angle)
26 XBPS730P08KS0 N P Screw, x6 (LCD CONTROl Unitx2/LCD CONTROL Unit Coverx4)
27 LX-EZ0002TPZZ N P Screw, x18 (Bezel-P Chassis)
28 LX-BZA369WJF7 N P Screw, x20 (Bezel-BL Chassis)
N LX-SZ2203TPZZ N P Screw, x44 (LED PWB Unit-LED PWB Angle)
