Sharp LC-40LE820E Service Manual

LC-40/46/52LE820E, LC-40/46LU820E
4 – 10

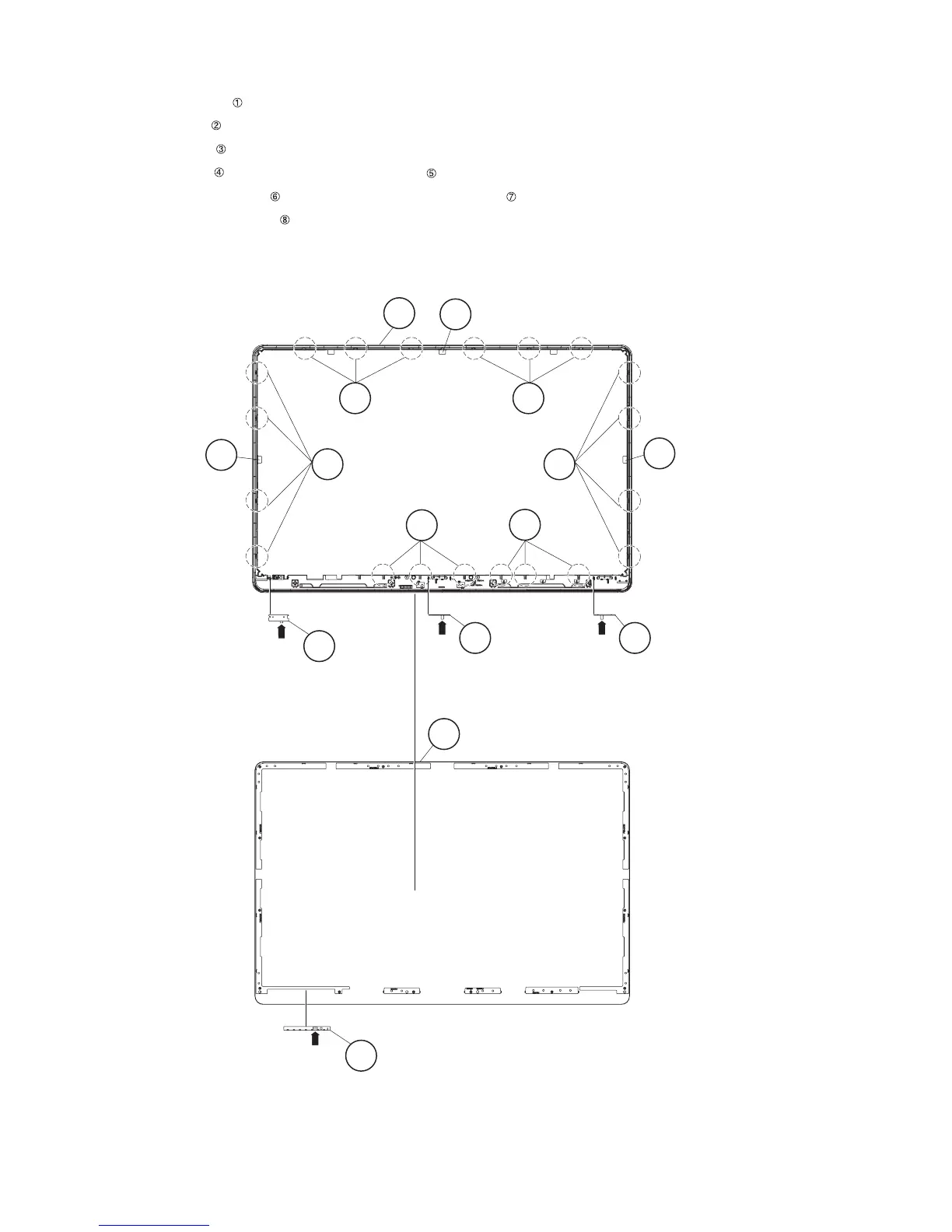

5. Removing of R/C, LED Unit, ICON Unit, LOGO Unit, Front Cabinet Ass’y, Glass Front Panel Ass’y, TOUCH
SENSOR Unit.
1. Detach the R/C, LED Unit . (RA)
2. Detach the ICON Unit . (R)
3. Detach the LOGO Unit . (RL)
4. Remove the 20 Hooks and detach the Front Cabinet Ass’y
5. Remove the 3 Double Side Tape and detach the Glass Front Panel Ass’y .
6. Detach the TOUCH SENSOR Unit . (RK)
NOTE: The TOUCH SENSOR Unit removed once is not reusable.
Front Cabinet Ass'y
Glass Front Panel Ass'y
3 LOGO Unit
[RL]
2 ICON Unit
[R]
1
R/C, LED
Unit
[RA]
8 TOUCH SENSOR Unit
[RK]
5
6
6
4 4
4
4
4
4
7
6
