Sharp LC-60LE810UN User Manual

LC-40/46/52/60LE810UN (1st Edition)
4 – 18

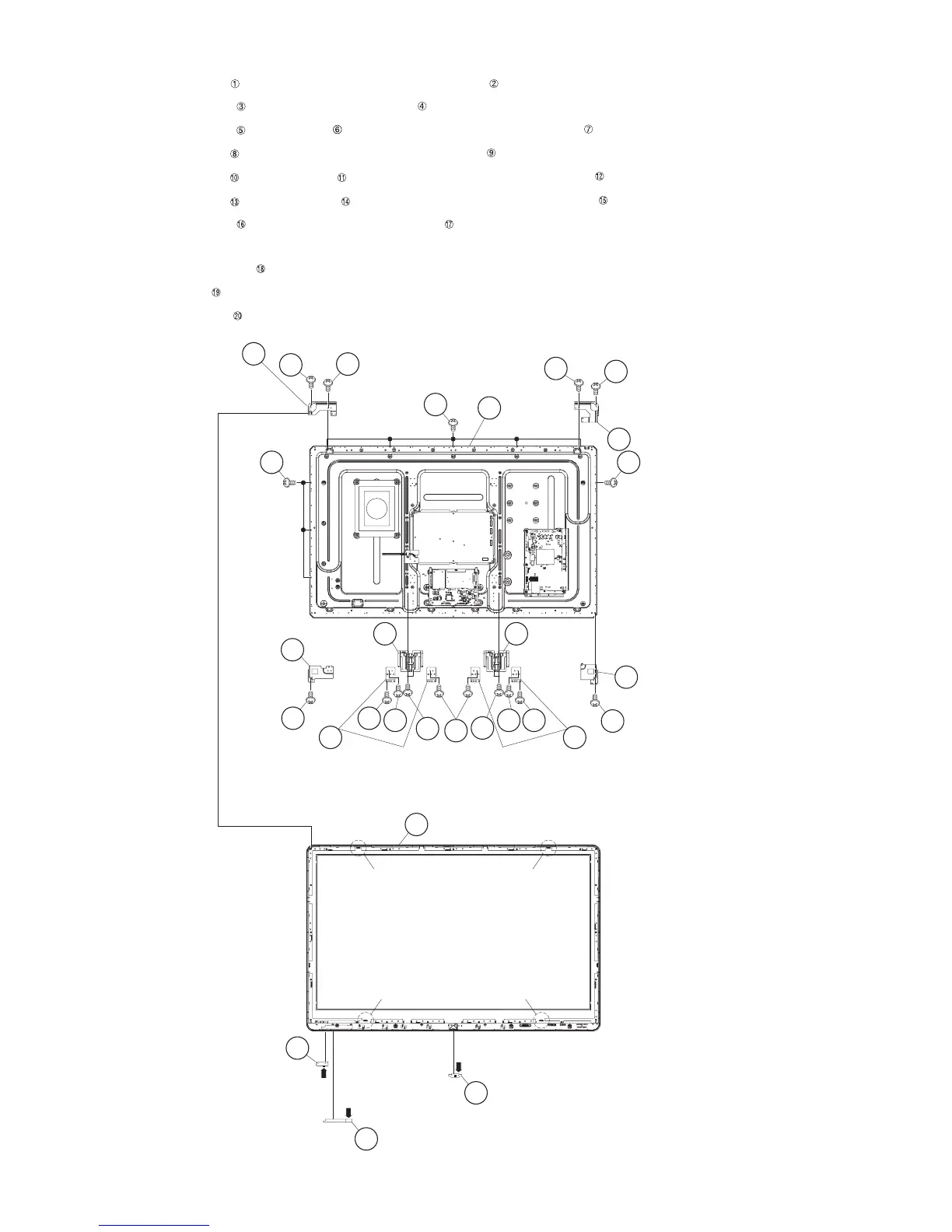

3. Removing of LCD Panel Module, TOUCH SENSOR Unit, ICON Unit, R/C, LED Unit, Front Cabinet Ass’y.
1. Remove the 1 lock screw and detach the LCD Fixing Metal Angle B-R .
2. Remove the 4 lock screws and detach the 2 Stand Angle .
3. Remove the 2 lock screws , 4 lock screws and detach the 4 Fixing Metal Angle B-MA .
4. Remove the 1 lock screw and detach the LCD Fixing Metal Angle B-L .
5. Remove the 1 lock screw and 1 lock screw and detach the LCD Fixing Metal Angle T-R .
6. Remove the 1 lock screw and 1 lock screw and detach the LCD Fixing Metal Angle T-R .
7. Remove the 9 lock screws and detach the LCD Panel Module .
8. Disconnect RA wire.
9. Detach the Touch Sensor Unit .
10.Detach the ICON Unit .
11.Detach the R/C, LED Unit .
19 ICON Unit
20
R/C,
LED Unit
19 TOUCH SENSOR Unit
17 LCD Panel
Module
[RI]
[RK]
[RA]
16 16
16
8 5
6
3
56
3
6
1
2 LCD Fixing
Metal Angle B-R
9
LCD Fixing
Metal Angle B-L
4 Stand
Angle
4
Stand
Angle
77
LCD Fixing
Metal Angle B-MA
LCD Fixing
Metal Angle B-MA
12
LCD Fixing Metal
Angle T-R
15
LCD
Fixing Metal
Angle B-L
15
13
11
10
[RA]
21 Front Cabinet Ass'y
Hook Hook
Hook Hook
