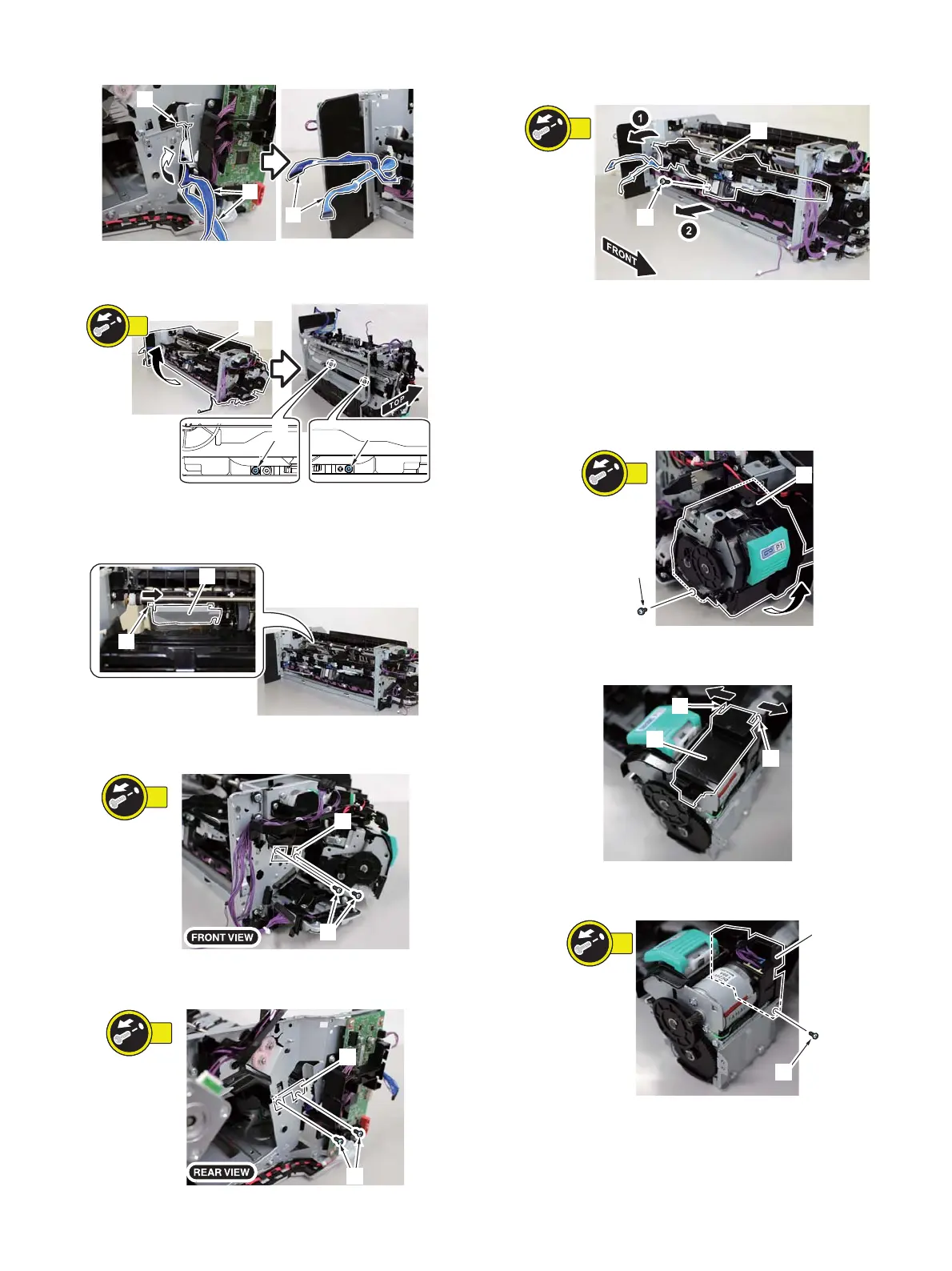

MX-FN27, MX-PN14 DISASSEMBLY AND ASSEMBLY 5 – 5
9) Put through the Cables [1] at the hole [2].
10) Rotate the machine [1] as shown below, and remove the 2 Screws
[2] of the Front/Rear Return Belt Guide.
11) Return the machine to its original position.
12) )Remove the Rear Return Belt Guide [1].
– 1 Boss [2]
13) Remove the Front Plate [1].
–2 Screws [2]
14) Remove the Rear Plate [1].
–2 Screws [2]
15) Remove the Proccessing Tray Unit [1].
– 1 Screws [2]
(3) Stapler Unit
a. Preparation
1) Remove the machine from the host machine.
2) Remove the Front Cover Unit.
b. Procedure
1) Remove the Stapler Unit [1] at the Stapler Mount.
– 1 Screws [2]
2) Remove the Cable Cover [1].
– 2 Claws [2]
3) Remove the PWB Holder [1].
– 1 Screw [2]
