MX-FN27, MX-PN14 OPERATIONAL DESCRIPTION 6 – 8

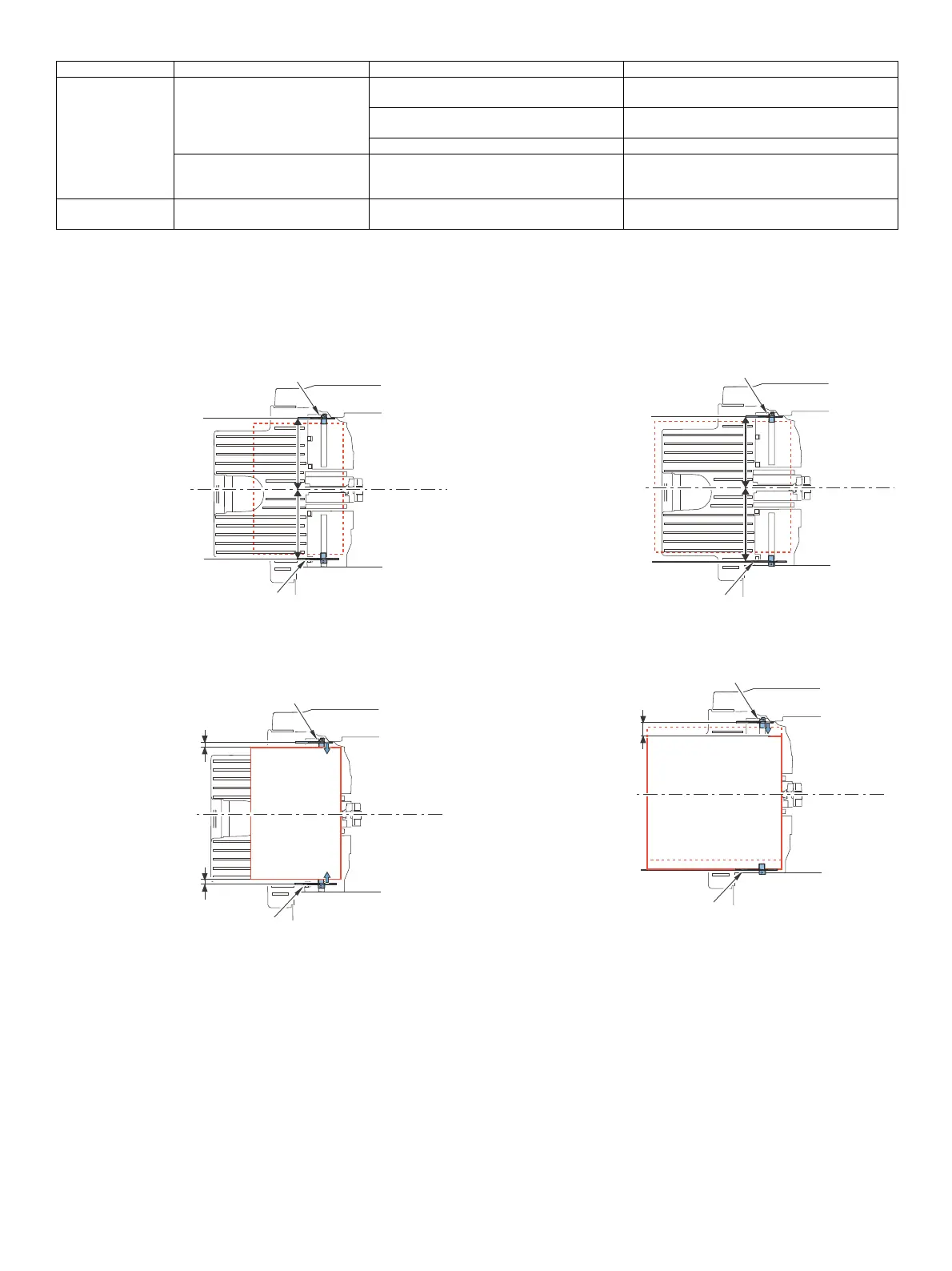

(2) Alignment Operation in Non-sort Mode
a. When the paper width is 297.0 mm or less (A4, LTR, etc.)
1) After the Delivery sensor (FNPS1) detects the trailing edge of the
paper, the front and rear alignment plates move to the wait posi-
tions (paper width + 5 mm).
2) Move the front and rear alignment plates to align the paper (cen-
ter alignment).
b. When the paper width is more than 297.0 mm (SRA3, 12X18)
1) After the Delivery sensor (FNPS1) detects the paper, the front and
rear alignment plates move to the wait positions (paper width + 20
mm and paper width + 5 mm, respectively).
2) Move the rear alignment plate to align the paper.
Operation Mode Paper size Alignment Position Remarks
Staple A3, B4, A4, A4R, B5, 11x17, LGL,
LTR, LTR-R, K, 16K, EXEC
Front 1-point stapling: Front end face of the
paper stack at 148.5 mm in front of the center
Center alignment is used for A4 and A3(paper width
297 mm).
Rear 1-point stapling: Rear end face of the paper
stack at 148.5 mm to the rear of the center
Center alignment is used for A4 and A3(paper width
297 mm).
2-point stapling: Center alignment
A3, A4 2-point stapling (For China government): Front
end face of the paper stack at 135.5 mm in front
of the center
Staple-free staple A3, A4, 11x17, LTR, 8K, 16K Front end face of the paper stack at 148.5 mm in
front of the center
Center alignment is used for A4 and A3(paper width
297 mm).
Rear Alignment Plate
Front Alignment Plate
End of Paper
+5 mm
Middle of Feeding Path
End of Paper
+5 mm
5 mm
5 mm
Rear Alignment Plate
Middle of Feeding Path
Front Alignment Plate
Rear Alignment Plate
End of Paper
+5 mm
Middle of Feeding Path
End of Paper
+20 mm
Front Alignment Plate
25 mm
Rear Alignment Plate
Middle of Feeding Path
Alignment Position
Front Alignment Plate
