MX-FN27, MX-PN14 OPERATIONAL DESCRIPTION 6 – 9
(3) Alignment Operation in Shift-sort Mode
a. When the paper length is 215.9 mm or less (A4, LTR, etc.)
1) After the Delivery sensor (FNPS1) detects the trailing edge of the
paper, the front and rear alignment plates move to the wait posi-
tions.
– Wait positions during front shift (front alignment plate position:
paper width + 40 mm, rear alignment plate position: paper width
+ 5 mm)
– Wait positions during rear shift (front alignment plate position:
paper width + +5 mm, rear alignment plate position: paper width
+ +10 mm)
2) Move the front and rear alignment plates to align the paper. (Do
not move the front alignment plate.)
– To improve the visibility when taking out the paper stack, move
the rear alignment plate to the front even when shifting to the
rear.

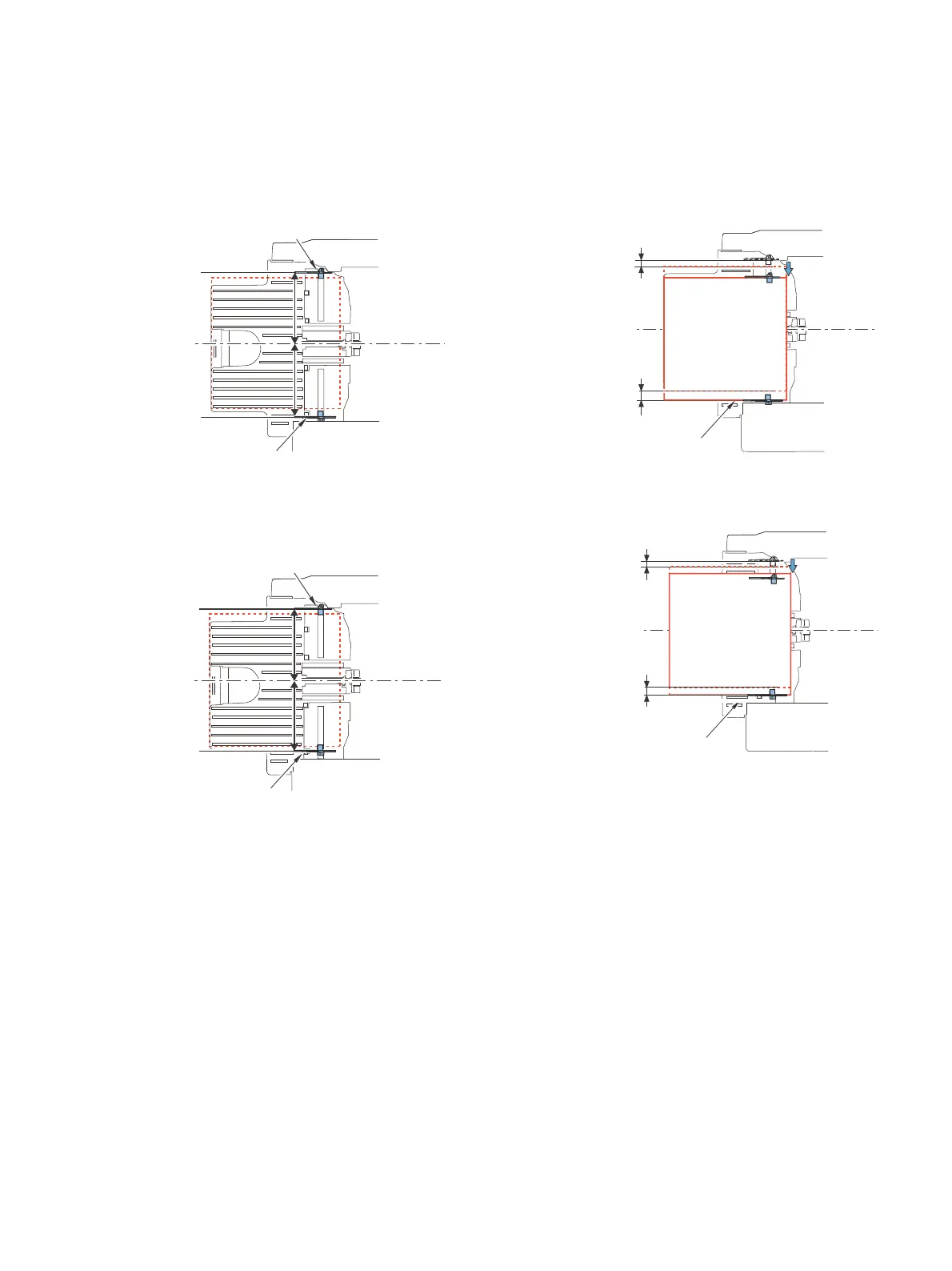

– Front shift
– Rear side
Rear Alignment Plate
End of Paper
+5 mm
Middle of Feeding Path
End of Paper
+20 mm
Front Alignment Plate
Rear Alignment Plate
End of Paper
+10 mm
Middle of Feeding Path
End of Paper
+5 mm
Front Alignment Plate
Front Alignment Position
Middle of Feeding Path
5 mm
20 mm
Rear Alignment Position
Middle of Feeding Path
5mm
10mm
