MX-FN27, MX-PN14 OPERATIONAL DESCRIPTION 6 – 10
b. When the paper length is more than 215.9 mm (A3, 11X17, etc.)
1) After the Delivery sensor (FNPS1) detects the trailing edge of the
paper, the front and rear alignment plates move to the wait posi-
tions.
– Wait positions during front shift (front alignment plate position:
paper width + +20 mm, rear alignment plate position: paper
width + 5 mm)
– Wait positions during rear shift (front alignment plate position:
paper width + +5 mm, rear alignment plate position: paper width
+ +10 mm)
2) Move the front and rear alignment plates to align the paper.
– During front shift, move only the rear alignment plate.(Do not
move the front alignment plate.)
– During rear shift, move only the front alignment plate.(Do not
move the rear alignment plate.)

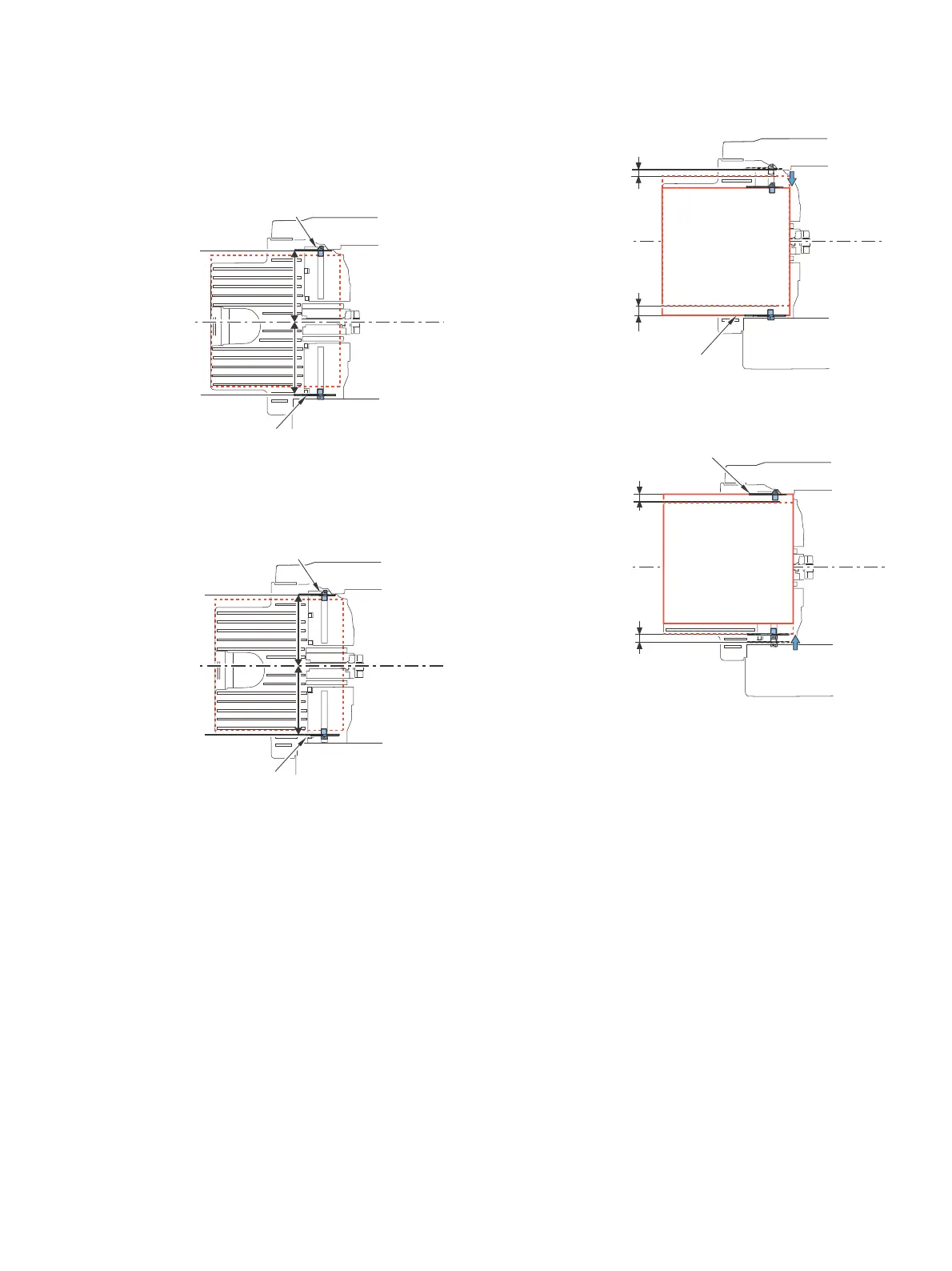

Rear Alignment Plate
End of Paper
+5 mm
Middle of Feeding Path
End of Paper
+20 mm
Front Alignment Plate
Rear Alignment Plate
End of Paper
+10 mm
Middle of Feeding Path
End of Paper
+5 mm
Front Alignment Plate
Front Alignment Position
Middle of Feeding Path
5 mm
20 mm
Rear Alignment Position
Middle of Feeding Path
10mm
5mm
