MX-FN27, MX-PN14 OPERATIONAL DESCRIPTION 6 – 11
(4) Alignment Operation in Staple Mode
1) After the Delivery sensor (FNPS1) detects the trailing edge of the
paper, the front and rear alignment plates move to the wait posi-
tions.Explanation for 2-point stapling will be omitted because it is
the same as the center alignment operation in Non-sort mode.
– Front 1-point stapling (front alignment plate position: paper
width position (148.5 mm), rear alignment plate position: paper
width + 5 mm)
– Rear 1-point stapling (front alignment plate position: paper
width + 5 mm, rear alignment plate position: center + 148.5
mm)
2) Move the front and rear alignment plates to align the paper.
(5) Alignment Operation in Staple-free Staple Mode
Explanation for staple-free staple mode will be omitted because it is
the same as the center alignment operation in Non-sort mode.

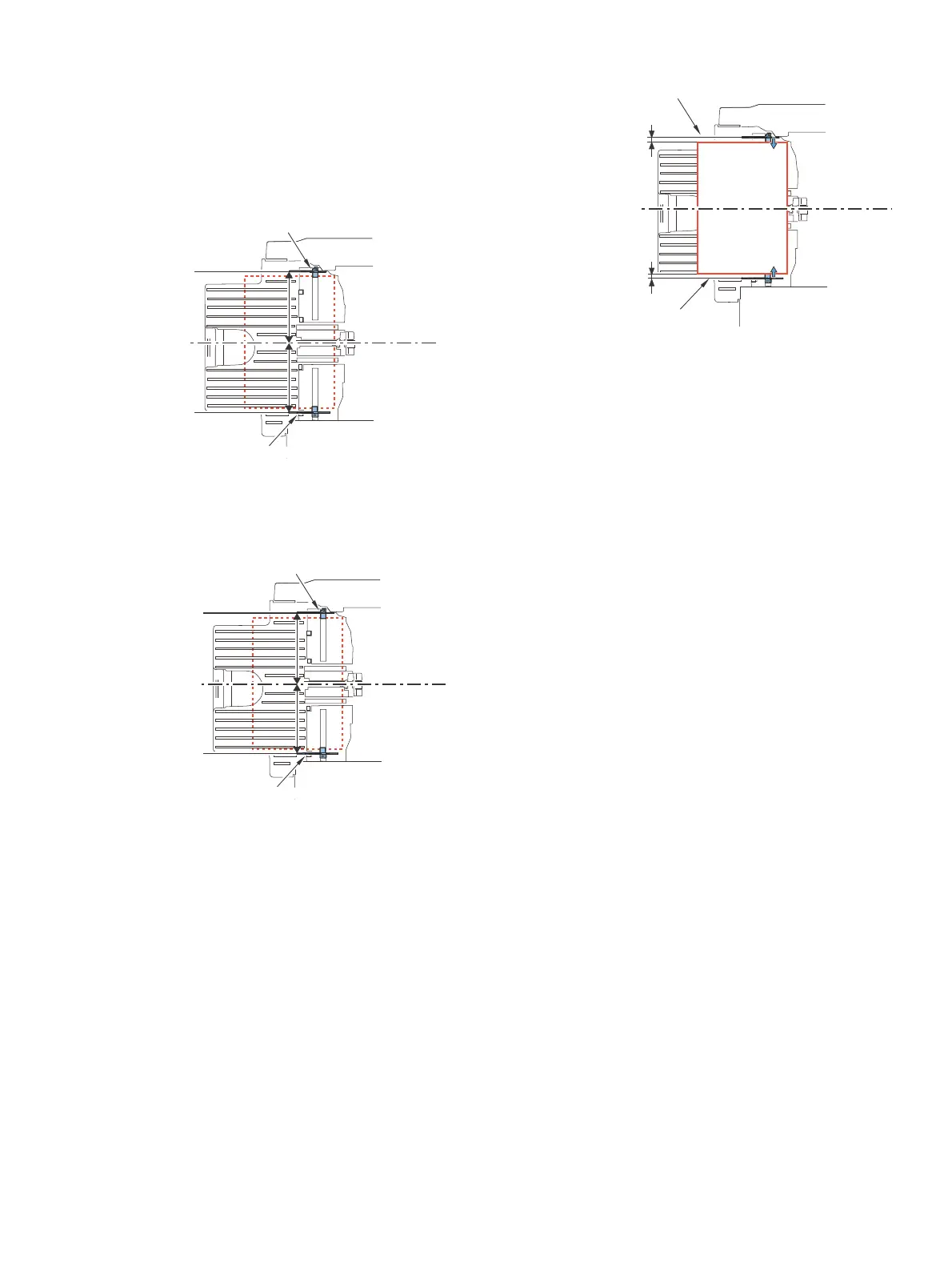

Rear Alignment Plate
End of Paper
+5 mm
Middle of Feeding Path
148.5 mm
Front Alignment Plate
Rear Alignment Plate
End of Paper
+5 mm
Middle of Feeding Path
148.5 mm
Front Alignment Plate
5mm
5mm
Middle of Feeding Path
Rear Alignment Position
Front Alignment Position
