MX-M350/M450 N/U MAINTENANCE AND DETAILS OF EACH SECTION 7 - 65

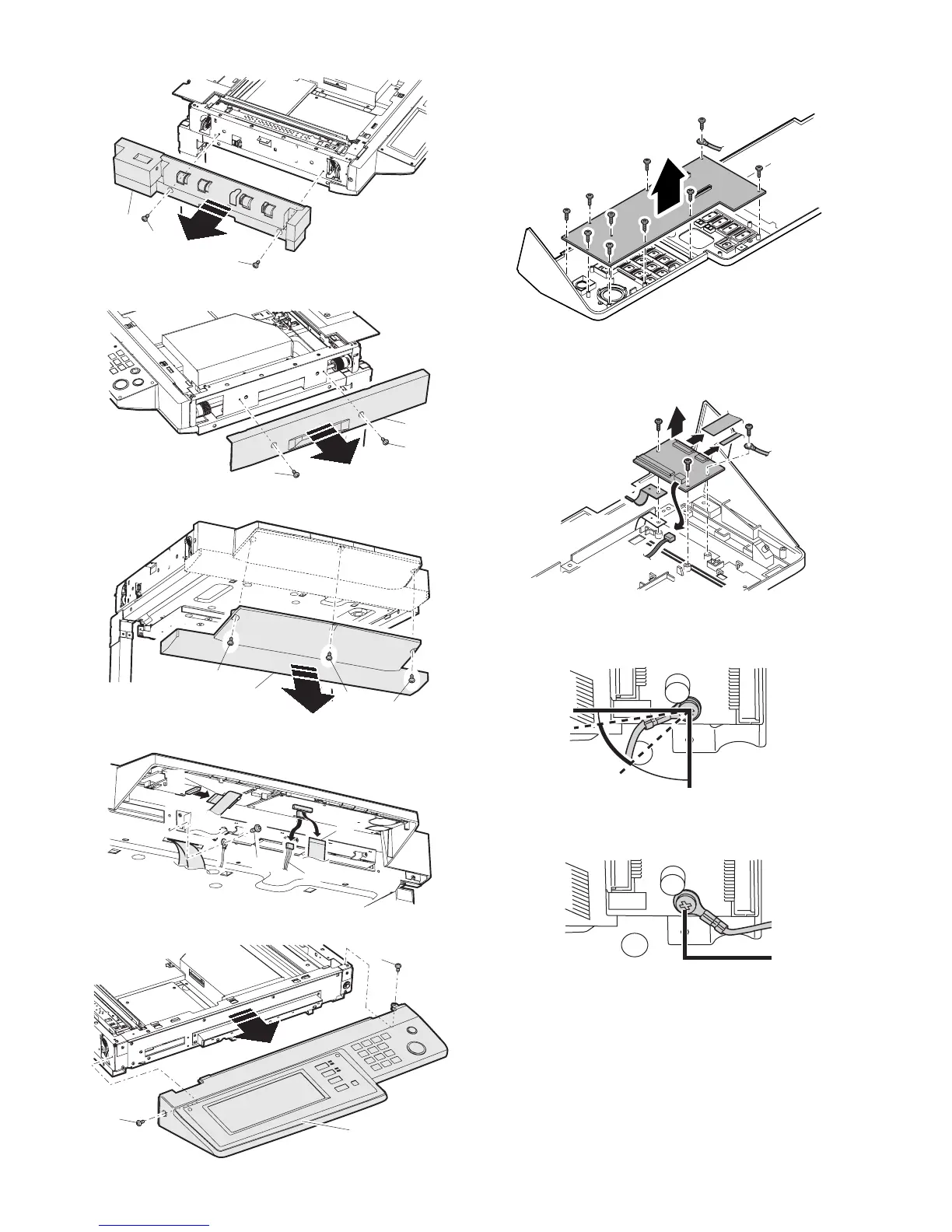

2) Remove the scanner left cabinet.
3) Remove the scanner right cabinet.
4) Remove the operation panel lower cabinet.
5) Remove the harnesses.
6) Remove the operation panel unit.
b-1. MFP operation PWB
1) Remove the earth terminal.
2) Remove the MFP operation PWB
b-1. LVDS PWB
1) Disconnect each cables.
2) Remove the LVDS PWB.
Note for installation
∗ Tighten the ground screw and ground connector as shown in the
below illustration. Improper placement will cause problems.
∗ Do not set the ground cable in this position.
1)
1)
2)
1)
2)
1)
1)
2)
1)
1)
1)
1)
2)
1)
1)
1)
2)
OK
NG
