MX-M503N MX-DEX8/DEX9 2 – 2

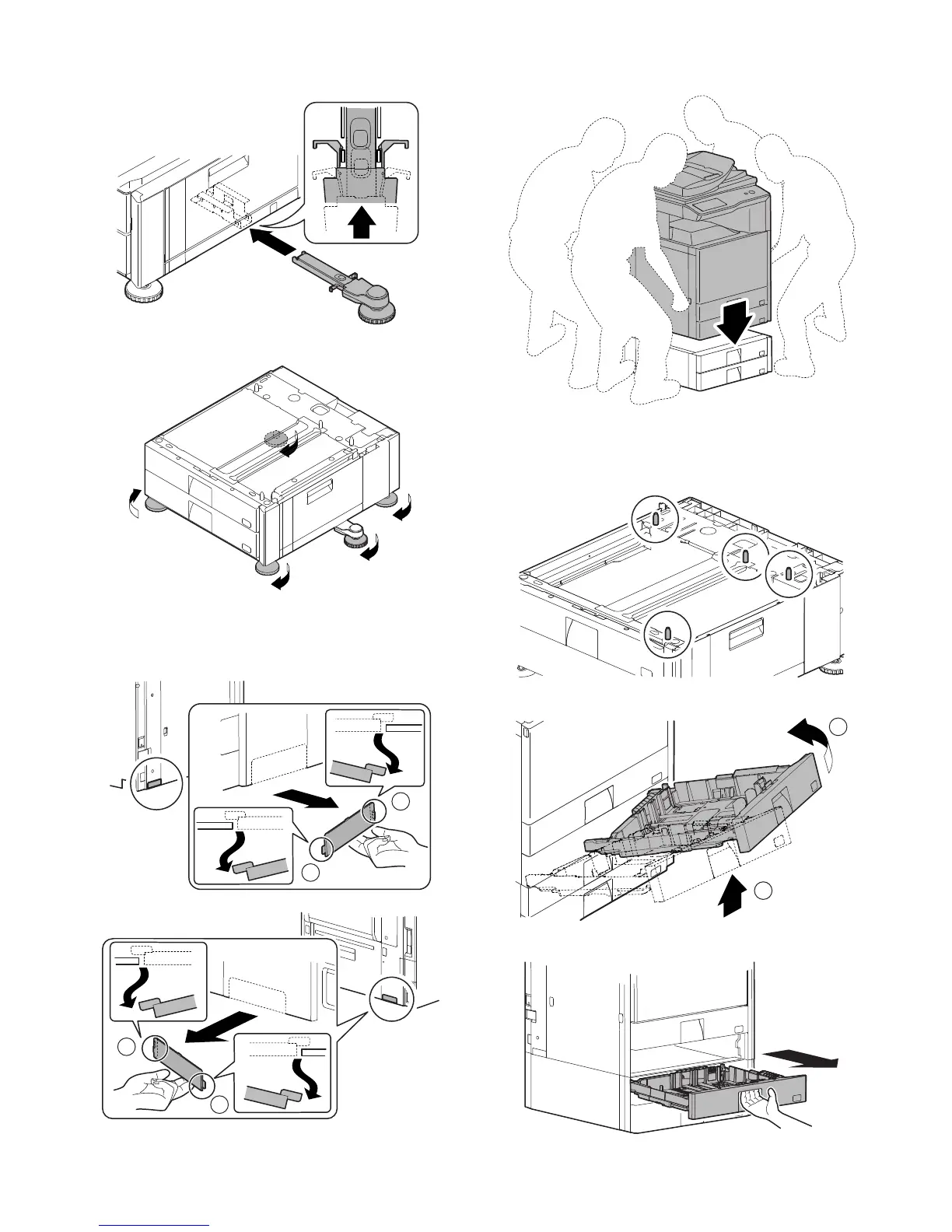

B. Installation of the adjuster
1) Install the right adjuster (package part No. 1) to the desk unit.
2) Turn each adjuster to fix the desk unit.
C. Connection of the main unit and the desk unit
1) Remove the connection plate covers of the both sides of the
main unit.
2) Put the main unit on the desk unit.
* Use man power of four persons or more to lift the main unit.
* Place the main unit on the desk unit slowly by fitting the
external lines. Check to insure that the positioning pin on the
top of the desk unit is securely engaged in the positioning
groove of the main unit.
3) Remove the No. 2 paper feed tray.
4) Pull out the No. 3 paper feed tray until it stops.
1
2
2
1
