MX-M503N MX-RBX3 6 – 1
MX-M503N
Service Manual
[6] MX-RBX3

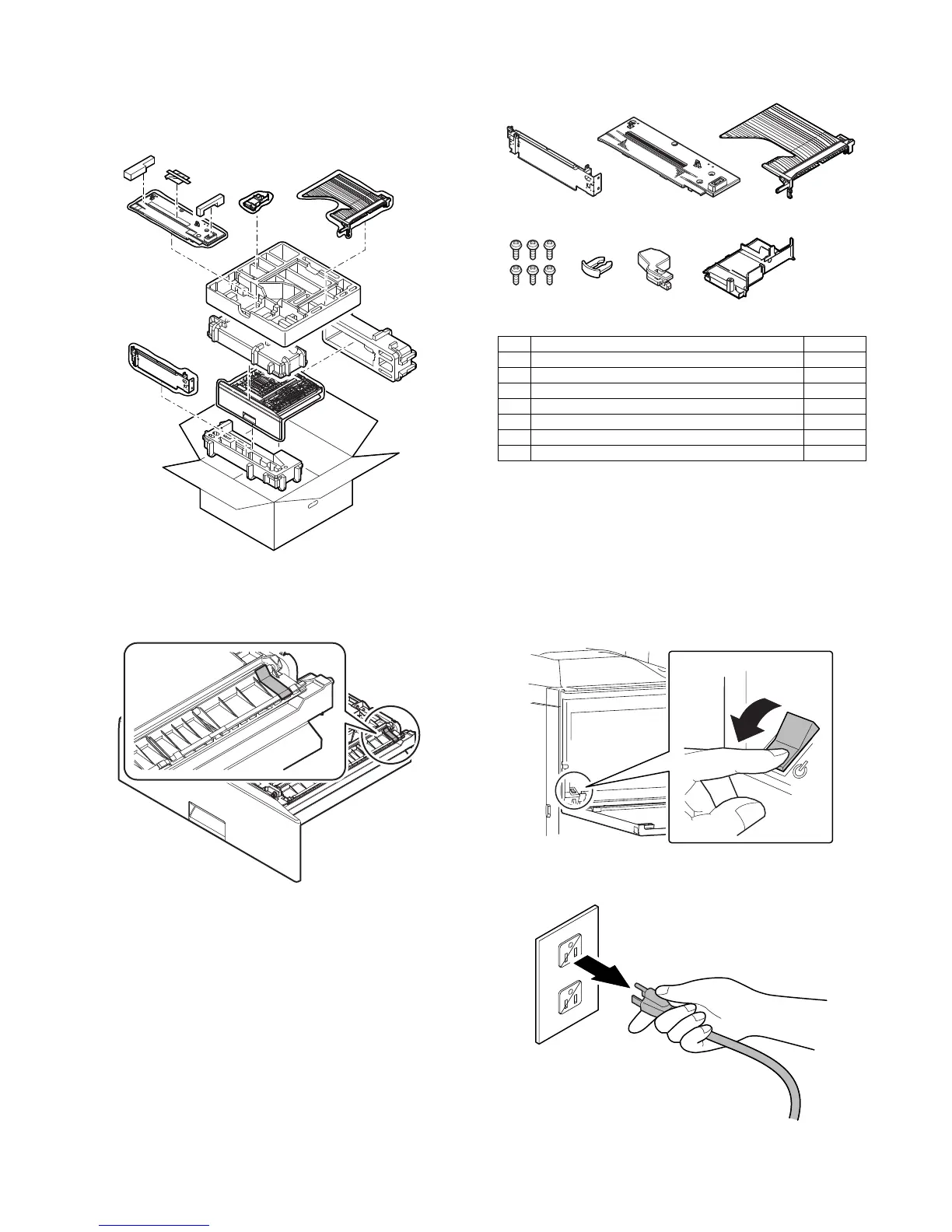

1. Unpacking
A. Removal of the interface pass unit
B. Removal of the fixing tape
1) Remove the fixing tape.
C. Check the packed items
1) Check that all the items are included in the package.
2. Installation
<Note before installation>
* Before starting installation, check to insure that the data lamp on
the operation panel does not light up or blink.
A. Turn off the power of the main unit
1) Turn OFF the power switch on the operation panel.
2) Open the front cabinet.
Turn OFF the power switch in the front cabinet of the main unit.
3) Disconnect the power plug of the main unit from the power out-
let.
No. Packed part names Quantity
1 Right cover plate 1
2 Interface left cabinet 1
3 Reverse tray 1
4 Fixing screw A 6
5 Resin clip 1
6 Reverse detection actuator 1
7 Front cabinet upper C 1
To Next Page
