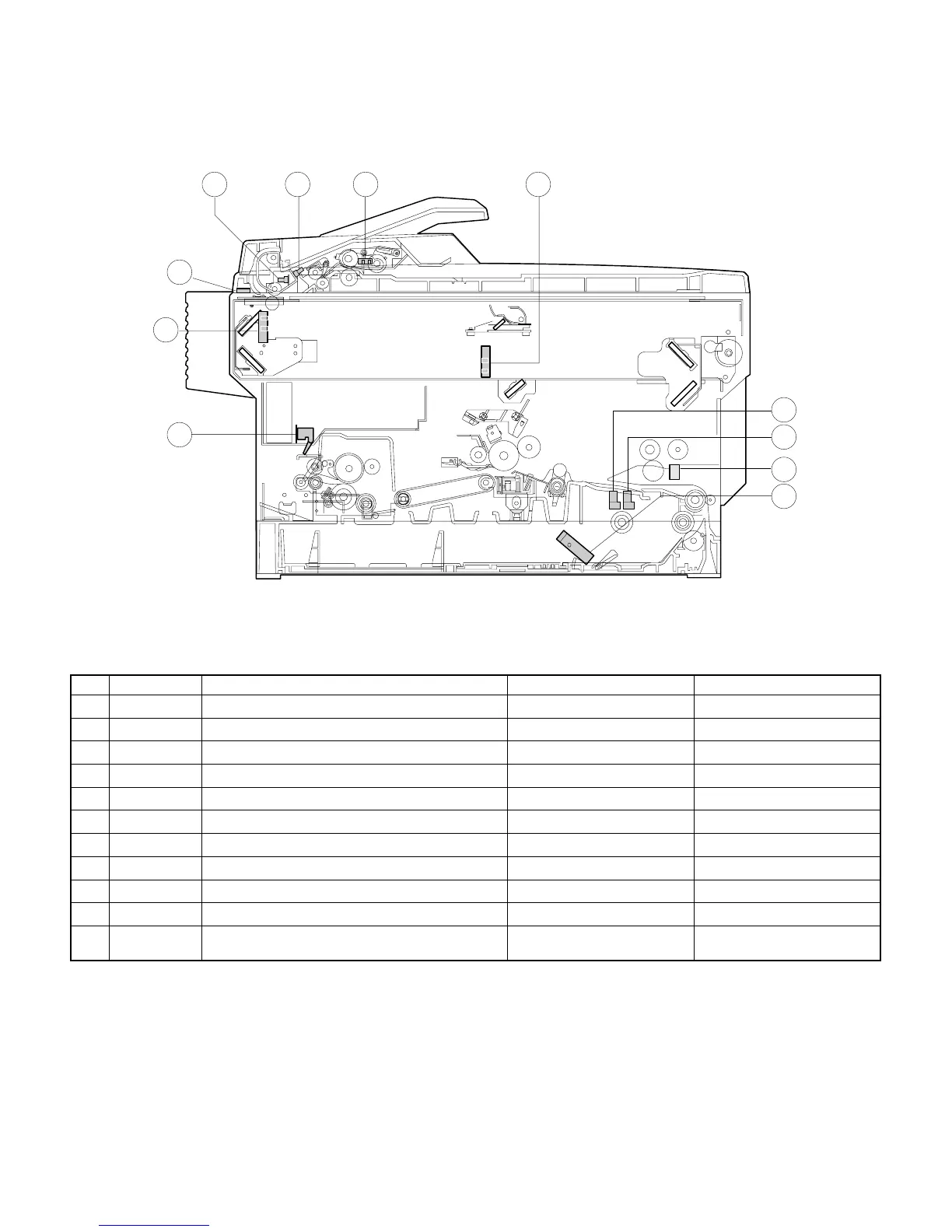

4. Switches, sensors, detectors (The SF-2514 as the typical example)
No. Abbreviation Function Type Operation
1
POD Paper out sensor Transmission photo sensor H when paper is sensed.
2
MHPS Mirror home position sensor Transmission photo sensor H at the home position.
3
SDSW SPF cover open/close sensor Lead switch H when the cover is open.
4
SPOD SPF document out sensor Transmission photo sensor L when paper is sensed.
5
SPPD SPF document transport sensor Transmission photo sensor H when paper is sensed.
6
SPFD SPF document set sensor Transmission photo sensor L when a document is set.
7
LHPD Lens home position sensor Transmission photo sensor H at the home position.
8
PWD Paper size (large/small) sensor Transmission photo sensor L with the large size.
9
PPD Paper transport sensor Transmission photo sensor L when paper is sensed.
F
CPED1 Tray paper empty sensor Transmission photo sensor H when paper is present.
G
PID (MFD1)
Paper sensor for Manual paper feed unit
(only single Manual Paper feed unit)
Transmission photo sensor L when the cover is open.
3
1
2
7
654
10
8
11
9
3 – 4
