Sharp SF-2314 Service Manual

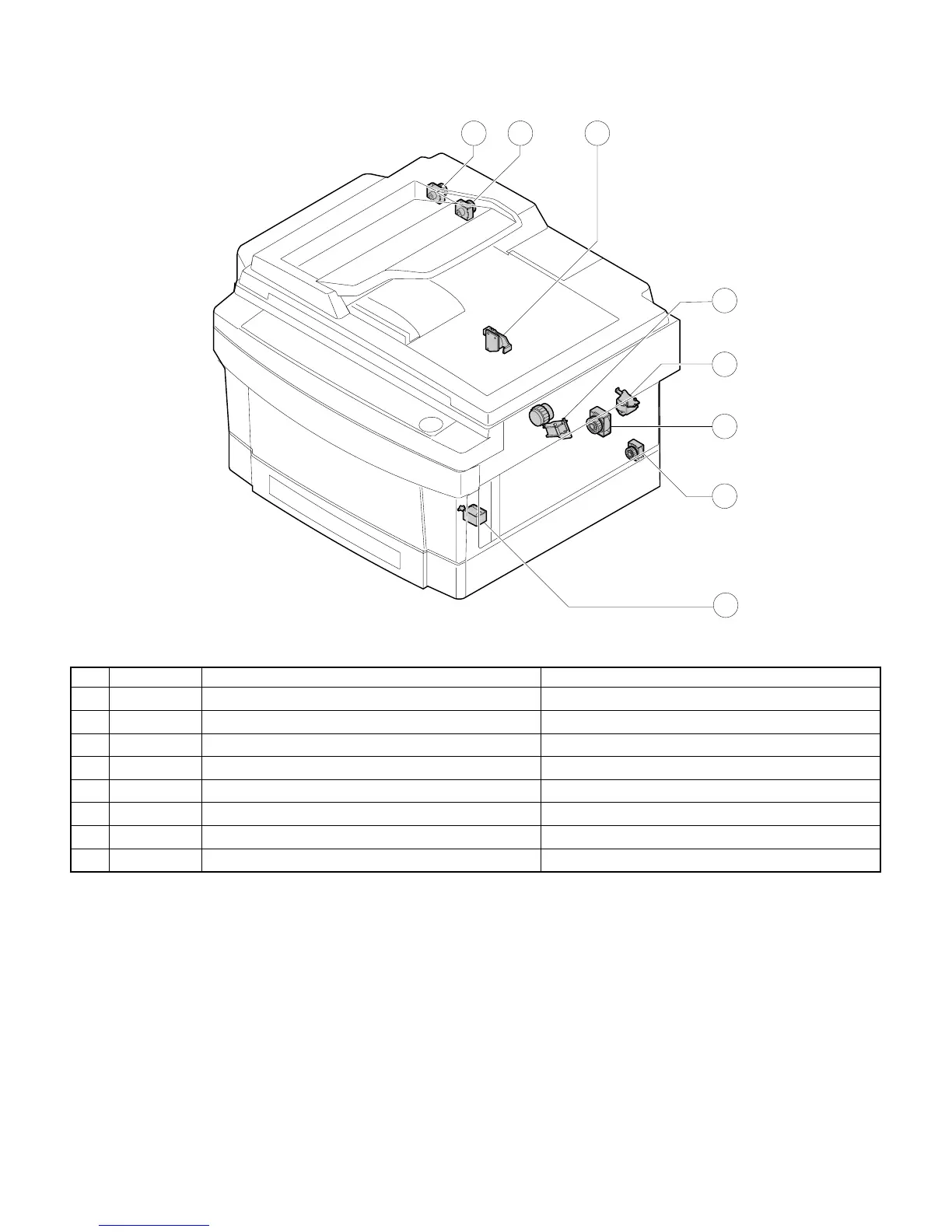

5. Clutches, solenoids (The SF-2514 as the typical example)
No. Abbreviation Name Function and operation
1
SRRC SPF resist roller clutch For SPF resist roller rotation
2
SPM SPF document transport clutch For SPF transport roller rotation
3
PSPS Paper separation solenoid For paper separation solenoid drive
4
RRC Resist roller clutch For resist roller rotation
5
TRC Transport roller clutch For transport roller rotation
6
MPFS Manual paper feed solenoid For takeup roller pressing
7
CPFC1 Tray paper feed clutch For paper feed roller rotation
8
SPFM Multi paper feed clutch For multi paper feed roller rotation
3
4
1 2
5
6
7
8
3 – 5
