Sharp SF-2314 Service Manual

5. SPF section

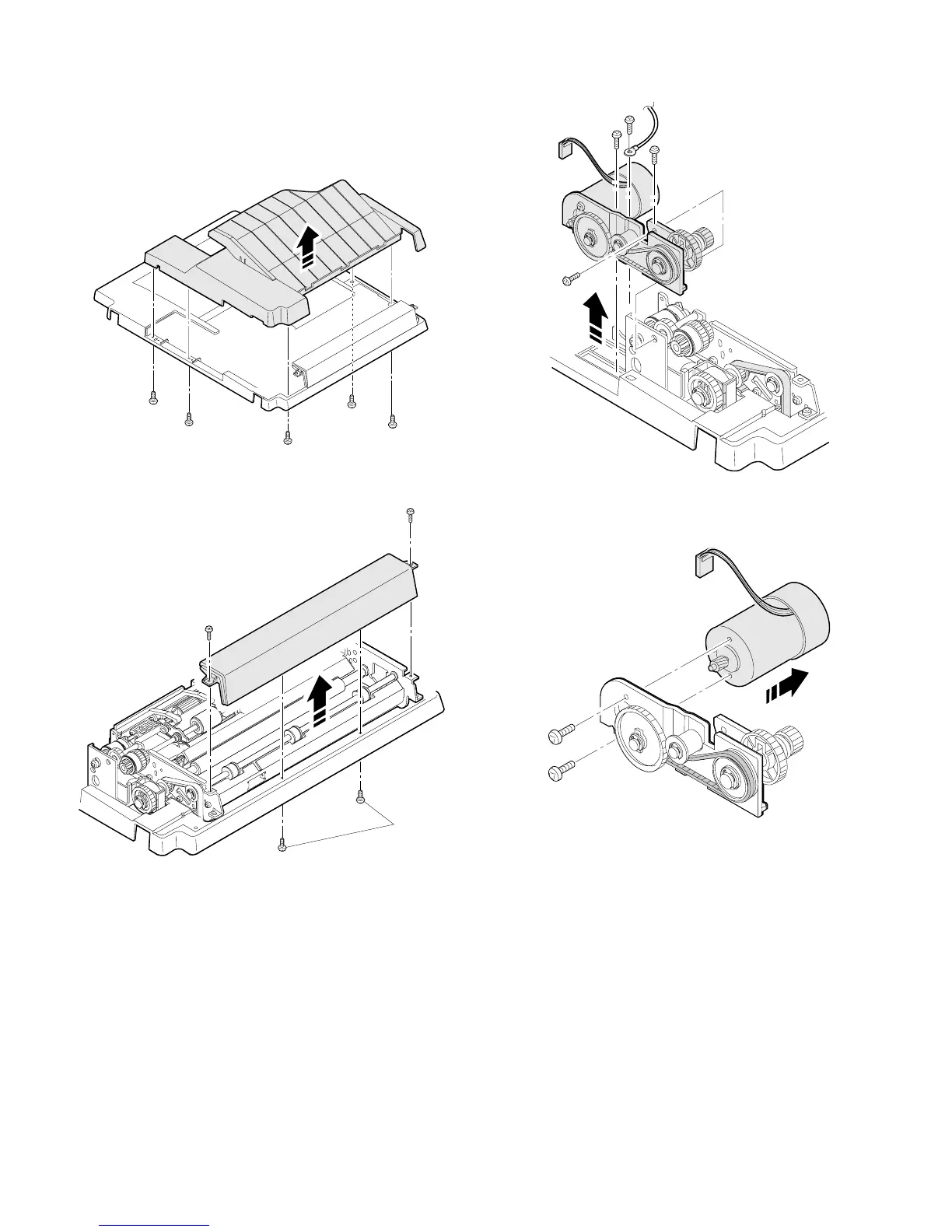

5-1. SPF mechanism removal
1 Open the OC cover, and remove the SPF cover fixing screws (5
pcs.).
2 Remove the SPF upper cover.
3 Remove two fixing screws of paper exit reverse paper guide.
4 Remove the SPF motor ass’y fixing screws (4 pcs.) and the CN-C
connector (4 pin) of the SPF control PWB. Then remove the SPF
motor ass’y.
(Reference)
The SPF motor can be removed by removing two screws from the
SPF motor ass’y.
A
6 – 13
