Sharp UX-1300

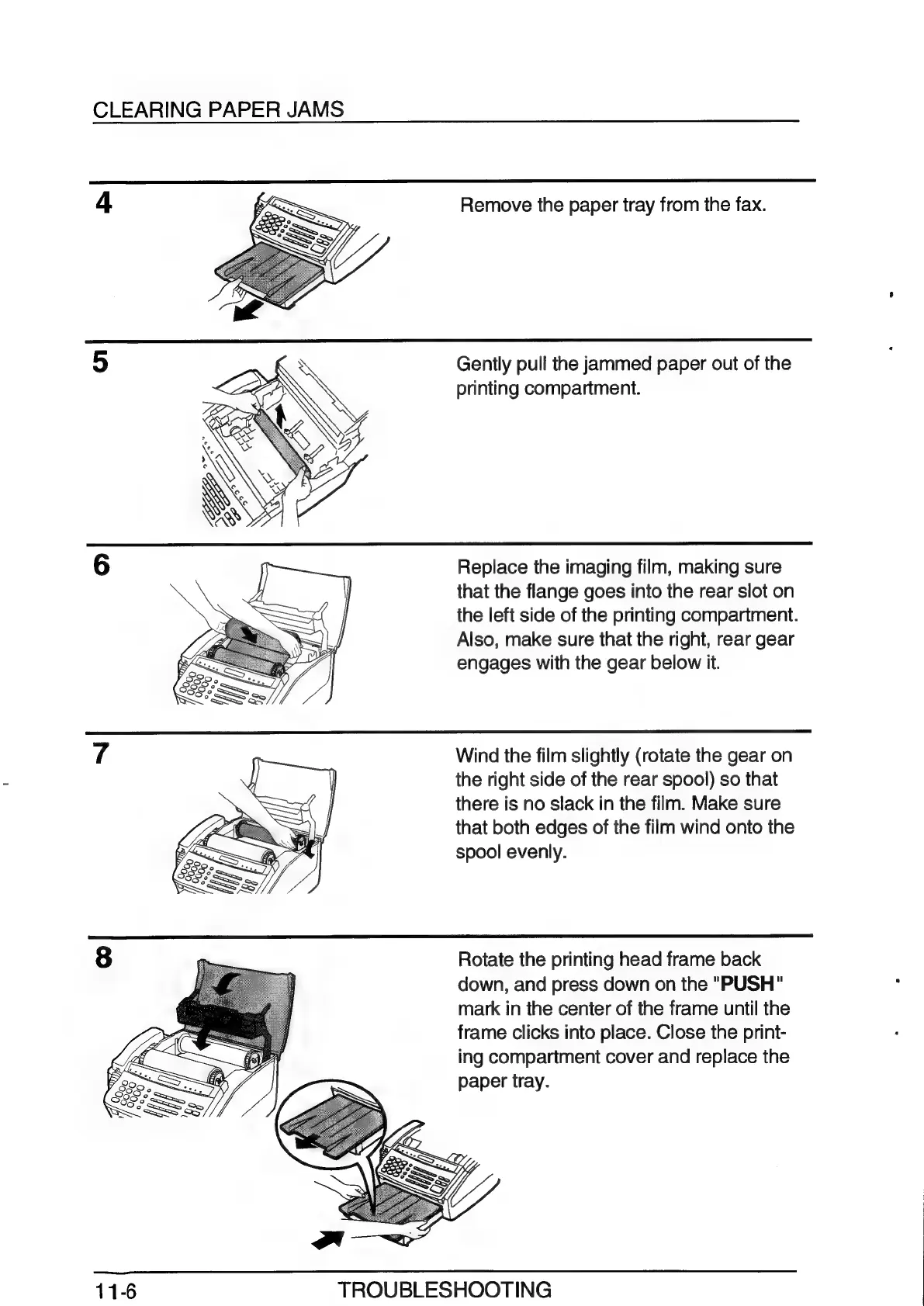

CLEARING PAPER JAMS
Remove the paper tray from the fax.
Gently pull the jammed paper out of the
printing compartment.
Replace the imaging film, making sure
that the flange goes into the rear slot on
the left side of the printing compartment.
Also, make sure that the right, rear gear
engages with the gear below it.
Wind the film slightly (rotate the gear on
the right side of the rear spool) so that
there is no slack in the film. Make sure
that both edges of the film wind onto the
spool evenly.
Rotate the printing head frame back
down, and press down on the "PUSH"
mark in the center of the frame until the
frame clicks into place. Close the print-
ing compartment cover and replace the
paper tray.
11-6 TROUBLESHOOTING
