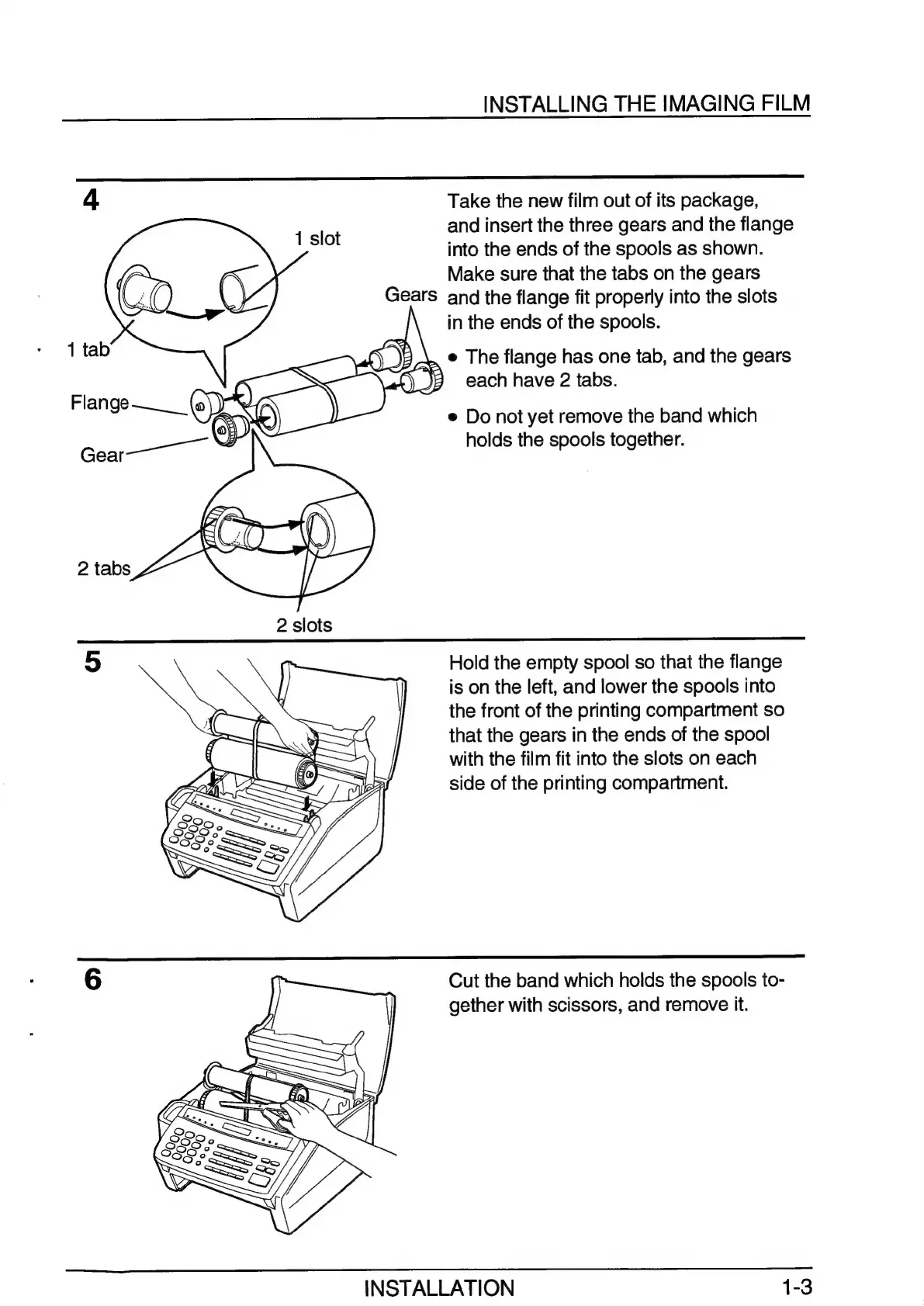

INSTALLING
THE
IMAGING
FILM
Take
the
new
film
out
of
its
package,
and
insert
the
three
gears
and
the
flange
into
the
ends
of
the
spools
as
shown.
Make
sure
that
the
tabs
on
the
gears
Gears
and
the
flange
fit
properly
into
the
slots
in
the
ends
of
the
spools.
.
©
The
flange
has
one
tab,
and
the
gears
3
each
have
2
tabs.
e
Do
not
yet
remove
the
band
which
holds
the
spools
together.
Hold
the
empty
spool
so
that
the
flange
is
on
the
left,
and
lower
the
spools
into
the
front
of
the
printing
compartment
so
that
the
gears
in
the
ends
of
the
spool
with
the
film
fit
into
the
slots
on
each
side
of
the
printing
compartment.
Cut
the
band
which
holds
the
spools
to-
gether
with
scissors,
and
remove
it.
INSTALLATION
1-3
