Sharp UX-1300 User Manual

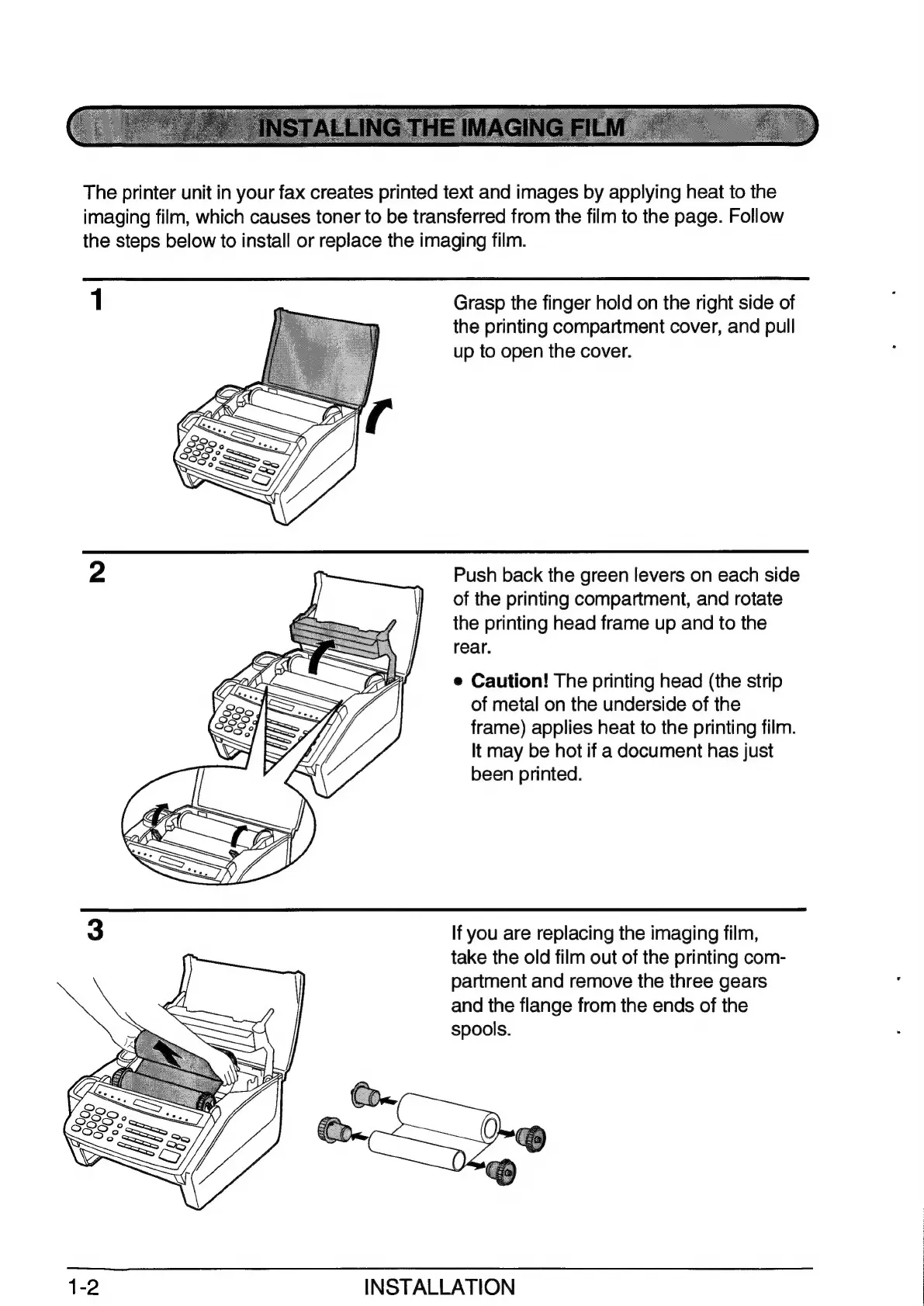

The printer unit in your fax creates printed text and images by applying heat to the
imaging film, which causes toner to be transferred from the film to the page. Follow
the steps below to install or replace the imaging film.
1 Grasp the finger hold on the right side of
the printing compartment cover, and pull
up to open the cover.
Push back the green levers on each side
of the printing compartment, and rotate
the printing head frame up and to the
rear.
e Caution! The printing head (the strip
of metal on the underside of the
frame) applies heat to the printing film.
It may be hot if a document has just
been printed.
If you are replacing the imaging film,
take the old film out of the printing com-
partment and remove the three gears
and the flange from the ends of the
spools.
1-2 INSTALLATION
