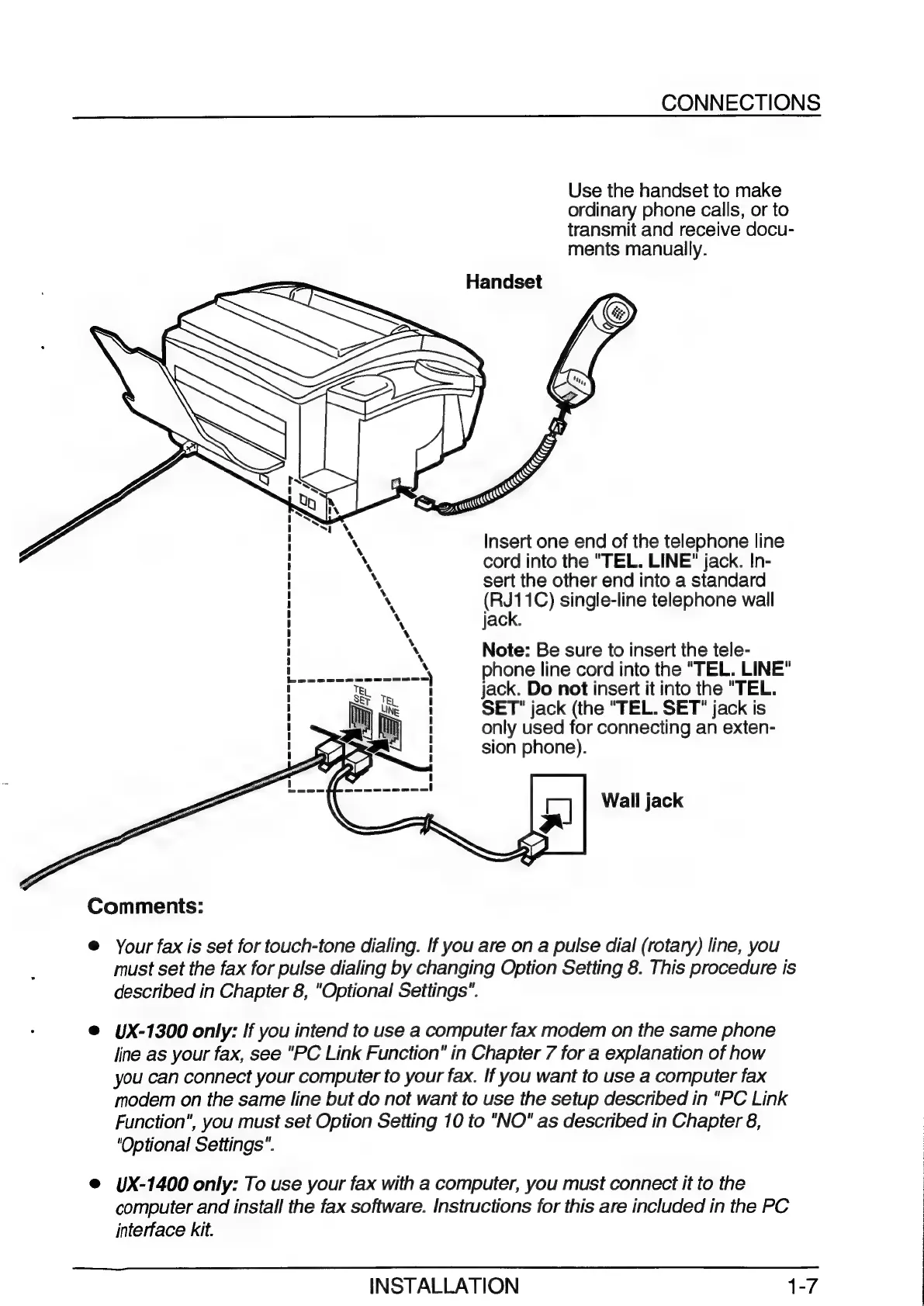

CONNECTIONS
Use
the
handset
to
make
ordinary
phone
calls,
or
to
transmit
and
receive
docu-
ments
manually.
Handset
Insert
one
end
of
the
telephone
line
cord
into
the
"TEL.
LINE"
jack.
In-
sert
the
other
end
into
a
standard
aa
1C)
single-line
telephone
wall
jack.
Note:
Be
sure
to
insert
the
tele-
phone
line
cord
into
the
"TEL.
LINE"
jack.
Do
not
insert
it
into
the
"TEL.
SET’
jack
(the
"TEL.
SET"
jack
is
only
used
for
connecting
an
exten-
sion
phone).
Wall
jack
Comments:
®
Your
fax
is
set
for
touch-tone
dialing.
If
you
are
on
a
pulse
dial
(rotary)
line,
you
must
set
the
fax
for
pulse
dialing
by
changing
Option
Setting
8.
This
procedure
is
described
in
Chapter
8,
"Optional
Settings".
@
UX-1300
only:
If
you
intend
to
use
a
computer
fax
modem
on
the
same
phone
line
as
your
fax,
see
"PC
Link
Function"
in
Chapter
7
for
a
explanation
of
how
you
can
connect
your
computer
to
your
fax.
If
you
want
to
use
a
computer
fax
modem
on
the
same
line
but
do
not
want
to
use
the
setup
described
in
"PC
Link
Function",
you
must
set
Option
Setting
10
to
"NO"
as
described
in
Chapter
8,
"Optional
Settings".
@
UX-1400
only:
To
use
your
fax
with
a
computer,
you
must
connect
it
to
the
computer
and
install
the
fax
software.
Instructions
for
this
are
included
in
the
PC
interface
kit.
INSTALLATION
1-7
