Sharp UX-40 Service Manual

1 – 2
UX-40DE
FO-50DE

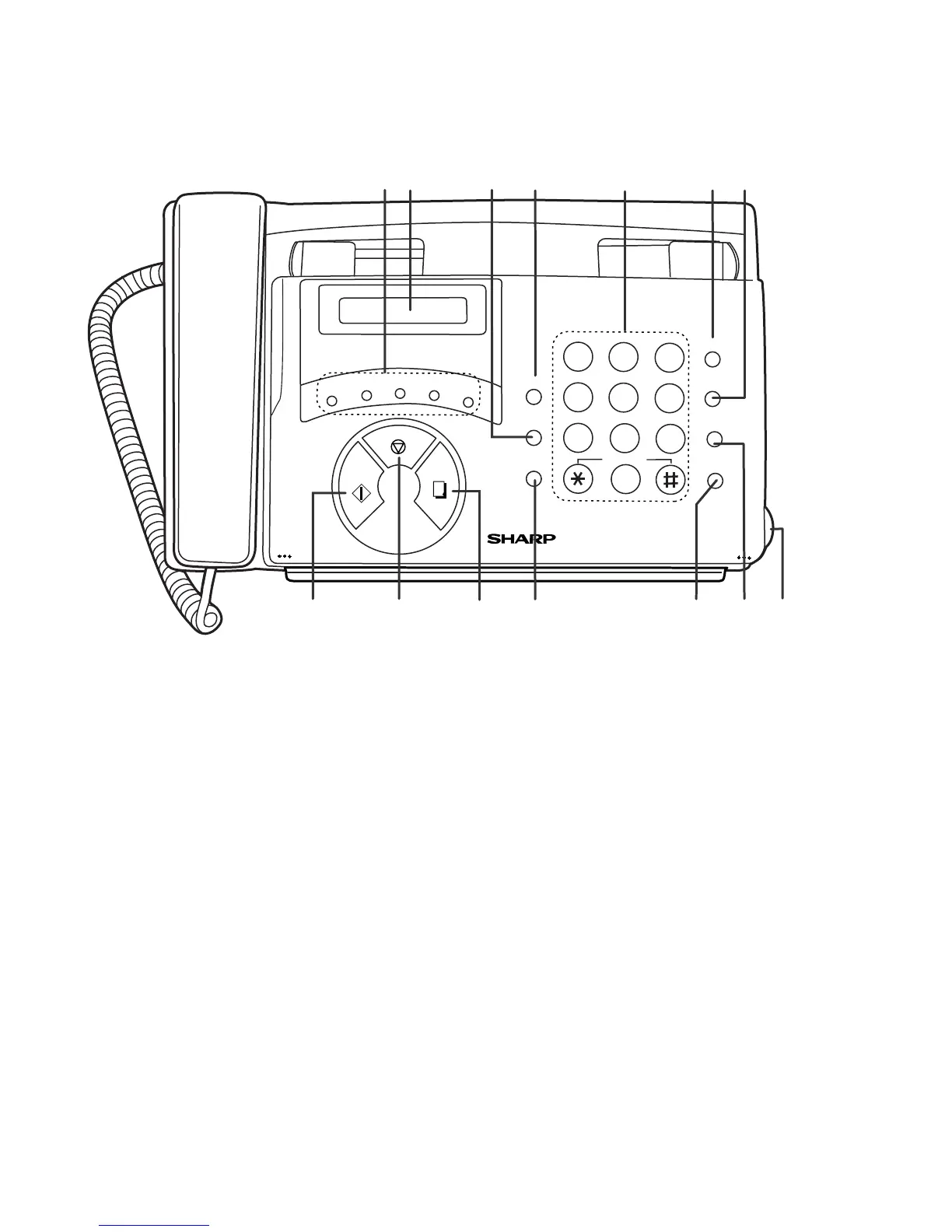

[2] Operation panel
1. Zielwahltasten (Rapid Dial keys)
Press one of these keys to dial a fax number automatically.
2. LCD-Anzeige (Display)
This displays messages and prompts during operation and
programming.
3. FUNKTION (FUNCTION key)
Press this key to select various special functions.
4. Taste LAUTSTÄRKE (VOLUME keys)
Press this keys to adjust the volume of the speaker when
the SPEAKER key has been pressed, the volume of the
ringer at all other times.
5. Zifferntasten (Number keys)
Use these keys to dial numbers, and enter numbers and
letters when storing auto-dial numbers.
6. KURZWAHL (SPEED DIAL key)
Press this key to dial a fax or voice number using an
abbreviated 2-digit Speed Dial number.
7. WAHLWDH. (REDIAL key)
Press this key to automatically redial the last number
dialed.
8. Taste START (START key)
Press this key to begin transmission when using Speed
Dialing, Direct Keypad Dialing, or Normal Dialing.
9. Taste STOP (STOP key)
Press this key to cancel operation before it is completed.
10. KOPIE/HILFE (COPY/HELP key)
When a document is in the feeder, press this key to make
a copy of a document. At any other time, press this key to
print out the Help List, a quick reference guide to the
opeation of your fax machine.
11. Taste AUFLÖSUNG/EMPFANGSART
(RESOLUTION/RECEPTION MODE key)
When a document is in the feeder, press this key to adjust
the resolution for faxing or copying. At any other time,
press this key to select the reception mode (an arrow in the
display will point to the currently selected reception mode).
12. LAUTSPR. (SPEAKER key)
Press this key to listen the line and fax tones through the
speaker when faxing a document.
Note: This is not a speakerphone. You must pick up the
handset to talk with the other party.
13. ALPHAWAHL/R (SEARCH/R key)
Press this key to search for an auto-dial number, or, if you
are on a P.B.X. extension, press this key to transfer a call.
14. BEDIENFELD ENTRIEGELN (Panel release)
Grasp this finger hold and pull toward you to open the
operation panel.
TEL FAX
RECEPTION
MODE
RESOLUTION FUNCTION
DOWN VOLUME UP
A.M.
SPEED DIAL
REDIAL
SPEAKER
01
02
03
04
05
06
07
08
09
10/POLL
ABC
DEF
JKL
MNO
GHI
TUV
WXYZ
PQRS
START
STOP
COPY/HELP
HOLD/SEARCH
TEL FAX
GHI
PQRS
JKL
ABC
DEF
MNO
WXYZ
TUV
A
B
C
D
E/
STOP
KOPIE/
HILFE
START
FUNKTION
LAUTSTÄRKE
KURZWAHL
WAHLWDH.
ALPHAWAHL
LAUTSPR.
AUFLÖSUNG/
EMPFANGSART
1
23
654
7
8
9
0
2
TEL/FAX ANRUFB.
ABRUF
8
1 4 5 62 3
7
11109
12
13 14
R
SYMBOLE
