Sharp UX-40 Service Manual

UX-40DE
FO-50DE
– 4 –

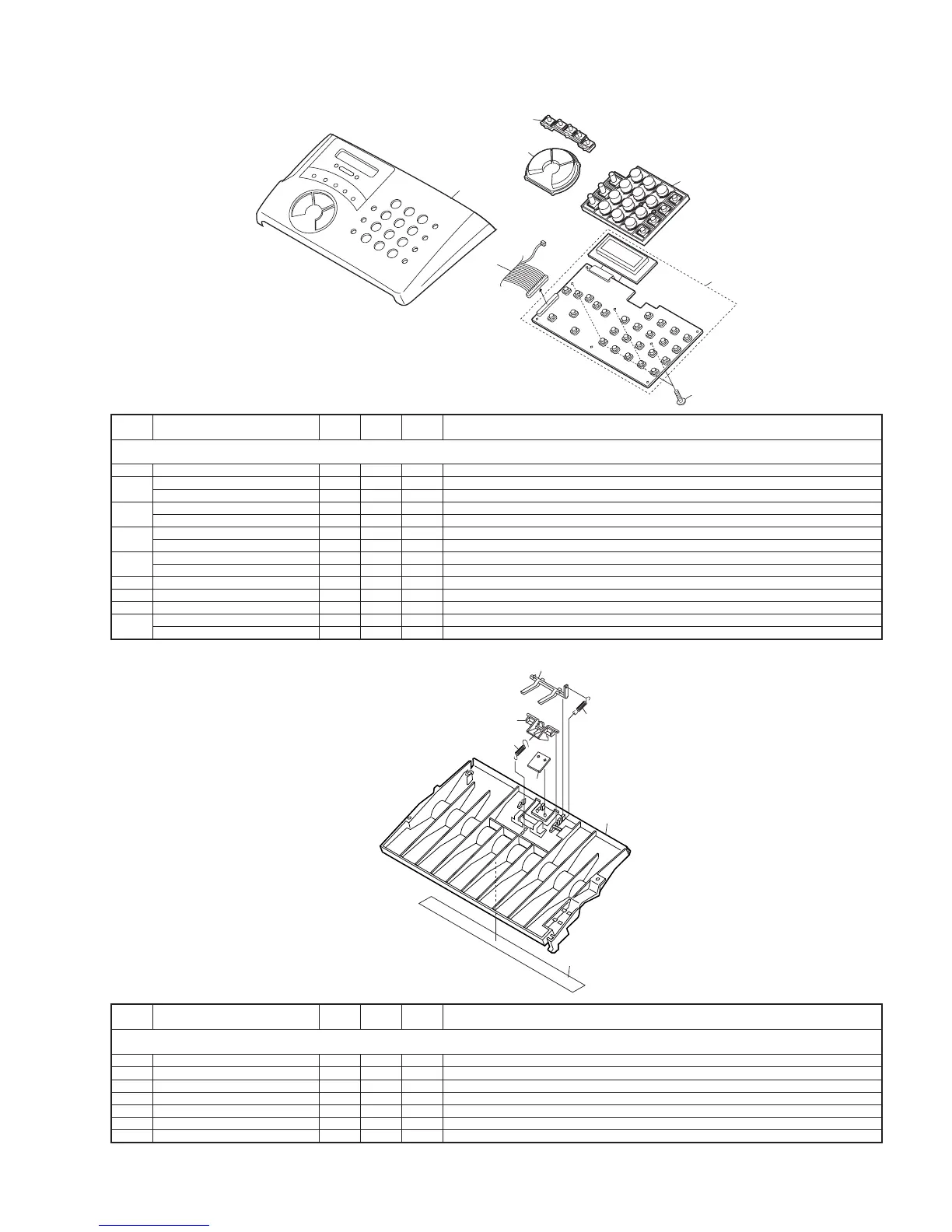

[3] Upper cabinet
3
6
5
4
7
1
B2x3
[4] Document guide upper
3
5
2
4
1
6
7
[3] Upper cabinet
1 CCNW-212AXH01 AK N C Panel cable ass’y
3 GCABA2342FFSR N D Upper cabinet [40]
GCABA2342FFSS N D Upper cabinet [50]
4 JBTN-2257FFSA N C 12 key [40]
JBTN-2257FFSC N C 12 key [50]
5 JBTN-2258FFSA N C Start key [40]
JBTN-2258FFSC N C Start key [50]
6 JBTN-2261FFSA N C Direct key [40]
JBTN-2261FFSC N C Direct key [50]
7 DCEKP203CFF01 N E Operation panel PWB unit
B2 XUBSD20P06000 AA C Screw(2x6)
(Unit)
901 DCEKK201CFF01 N E Operation panel unit [40]
DCEKK201CFF02 N E Operation panel unit [50]
NO.
PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
NO.
PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[4] Document guide upper
1 LPLTG2911XHZZ AE C Separator rubber
2 LPLTP2908XHZZ AE C Separator plate
3 LPLTP3051XHZZ AB N C Feed plate
4 MSPRT3140FFZZ N C Separate spring
5 MSPRT3139FFZZ N C Feed spring
6 PGIDM2554FFZZ N C Document guide upper
7 PSHEZ3517FFZZ N C Blind sheet
