Sharp UX-40 Service Manual

UX-40DE
FO-50DE
4 – 1

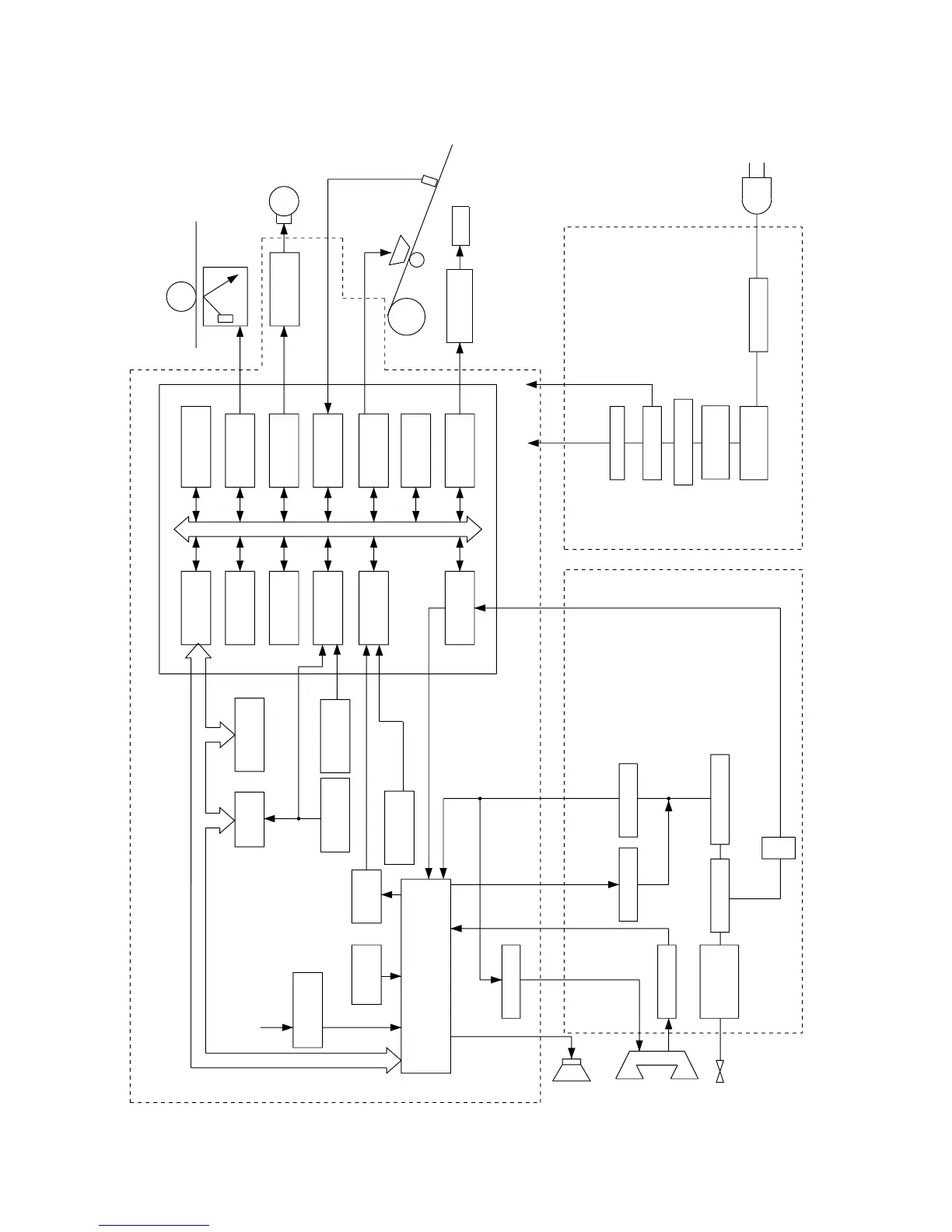

[1] Block diagram
CHAPTER 4. DIAGRAMS
SRAM
256kbit
ROM
1Mbit
CPU
CPU I/F
TIMER
RTC
PIO
WATCHDOG
TIMER
CLOCK
32.768kHz
INTERRUPT
CONTROLLER
CIS I/F
MOTOR I/F
SENSOR I/F
SIO
THERMAL
HEAD I/F
PANEL I/F
PM
OPERATION
PANEL
CONTROL PWB UNIT
1CHIP FAX ENGINE (FC200)
HANDSET
SPEAKER
+5V +24V
OPERATION
PANEL
TEL/LIU
PWB UNIT
DRIVER
THERMAL
HEAD
PM
CONTACT
SENSOR
POWER SUPPLY
PWB UNIT
STABILIZER
MODEM
FM209
AMPLIFIER
AMPLIFIER
SURGE
PROTECT/
FILTER
CML TRANSFORMER
CI
VBT
RECTIFIER
TRANSFORMER
RECTIFIER
DIODE
TRANS
SURGE
ABSORBER
FILTER
LINE
PAPER
SENSOR
RESET IC
AMPLIFIER
BZ
CLOCK
32.256MHz
LCD
D-FF
16MHz
+3.3V
+5V
REGULATOR
AMPLIFIER
