Sharp UX-40 Service Manual

NO.
PARTS CODE
PRICE
RANK
NEW
MARK
PA R T
RANK
DESCRIPTION
UX-40DE
FO-50DE
[2] Scanner unit
– 3 –
13
11
5
5
1
1
12
10
17
16
2
18
14
4
3
6
6
7
8
9
15
19
15
20
16
16
15
20
19
16
15
2
2
19
20

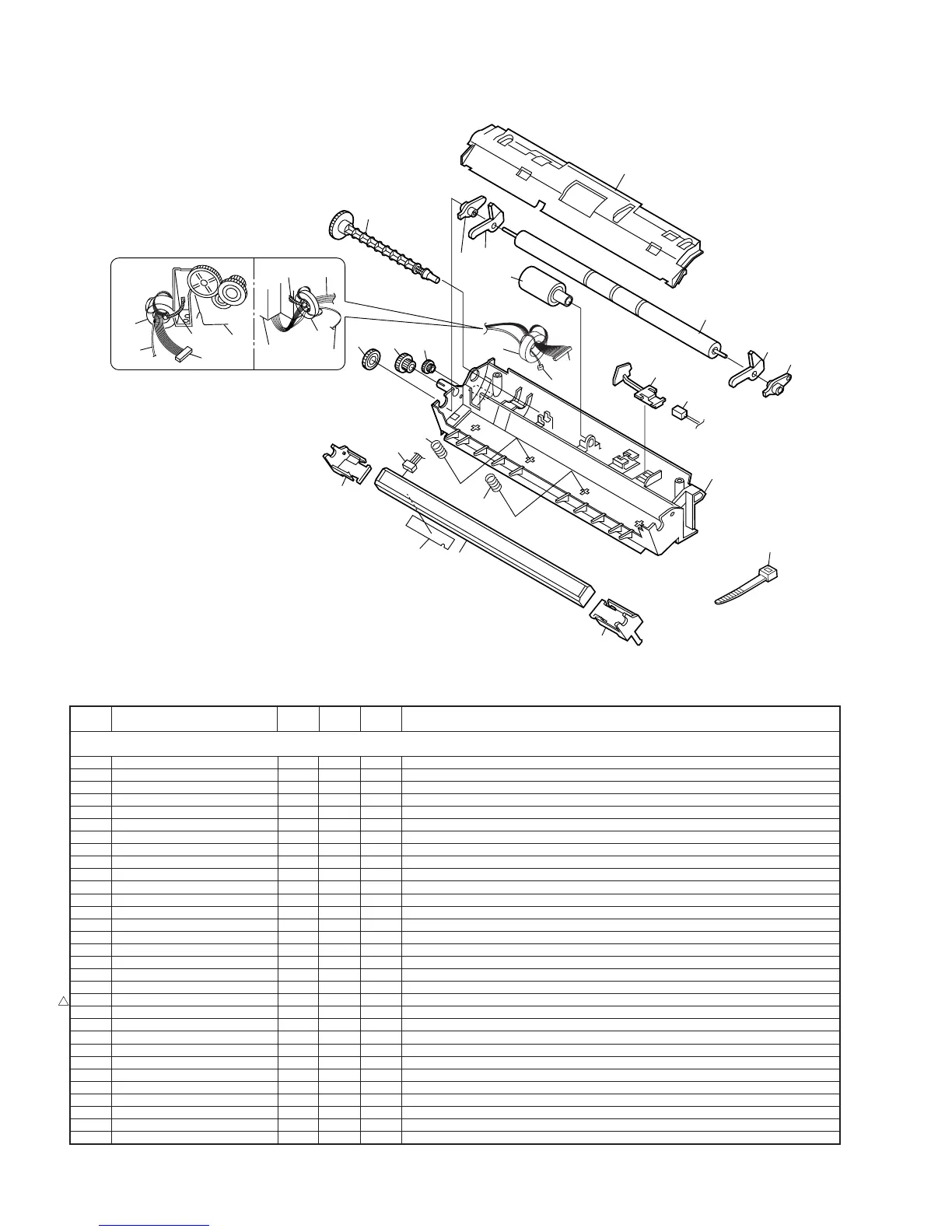

[2] Scanner unit
1 LBSHP2110XHZZ AB N C Back roller bearing
2 LFRM-2209FFZZ N C Scanner frame
3 LHLDZ2180XHZZ AC N C CIS support,left
4 LHLDZ2181XHZZ AC N C CIS support,right
5 MLEVP2317XHZZ AB N C CIS release lever
6 MSPRC3117FFZZ N C CIS spring
7 NGERH2479XHZZ AB N C Back roller gear
8 NGERH2480XHZZ AB N C Reduction gear,17/28Z
9 NGERH2481XHZZ AB N C Reduction gear,17/23Z
10 NROLR2375XHZZ AL C Feed roller
11 NROLR2428XHZZ AP N C Back roller
12 NSFTZ2273XHZZ AF C Feed roller shaft
13 PGIDM2562XHZZ AD N C Document guide lower
14 PSHEZ3436FFZZ N C CIS protect sheet
15 QCNW-4814XHZZ AG C CIS cable
16 QCNW-213AXHZZ AC N C Front sensor cable
17 QSW-M2293XHZZ AE N B Front sensor
18 RUNTZ2054XHZZ BE N B CIS unit
19 LHLDW1033CE00 AA C Band
!
20 RCORF2063XHZZ AF B Core
