17 | Page
INSTALLATION
POWER SOURCE REQUIREMENTS
When selecting a location for the unit, verify each of the following requirements is satisfied.
Power Source: The power source must match the voltage and amperage requirements listed on the
unit data plate. This unit is intended for 220 – 240 volt, 50/60 Hz applications at 3.5 amps.
• The wall power source must be protective earth grounded.
• The unit may be damaged if the supplied voltage varies by more than 10% from the data
plate rating.
• Use a separate circuit to prevent loss of the unit due to overloading or circuit failure.
• The recommended wall circuit breaker for this unit is 20 amps.
• The wall power source must conform to all national and local electrical codes.
Power Cord: The unit must be positioned so that all end-users can quickly unplug the cord in the
event of an emergency.
• The unit is provided with a 230-volt, 10 amp, 2.5 meters (8ft 2in), Euro CEE 7/7 power cord.
Always use this cord or an identical replacement.
Fuses: The unit ships with a fuse installed in the power cord inlet and a second fuse installed in an
adjacent fuse holder.
• Both fuses must be installed and intact for the unit to operate.
• Always find and fix the cause of a blown fuse prior to putting the unit back into operation.
• Fuse type:
o 250V T6.3 Amp, 5x20mm

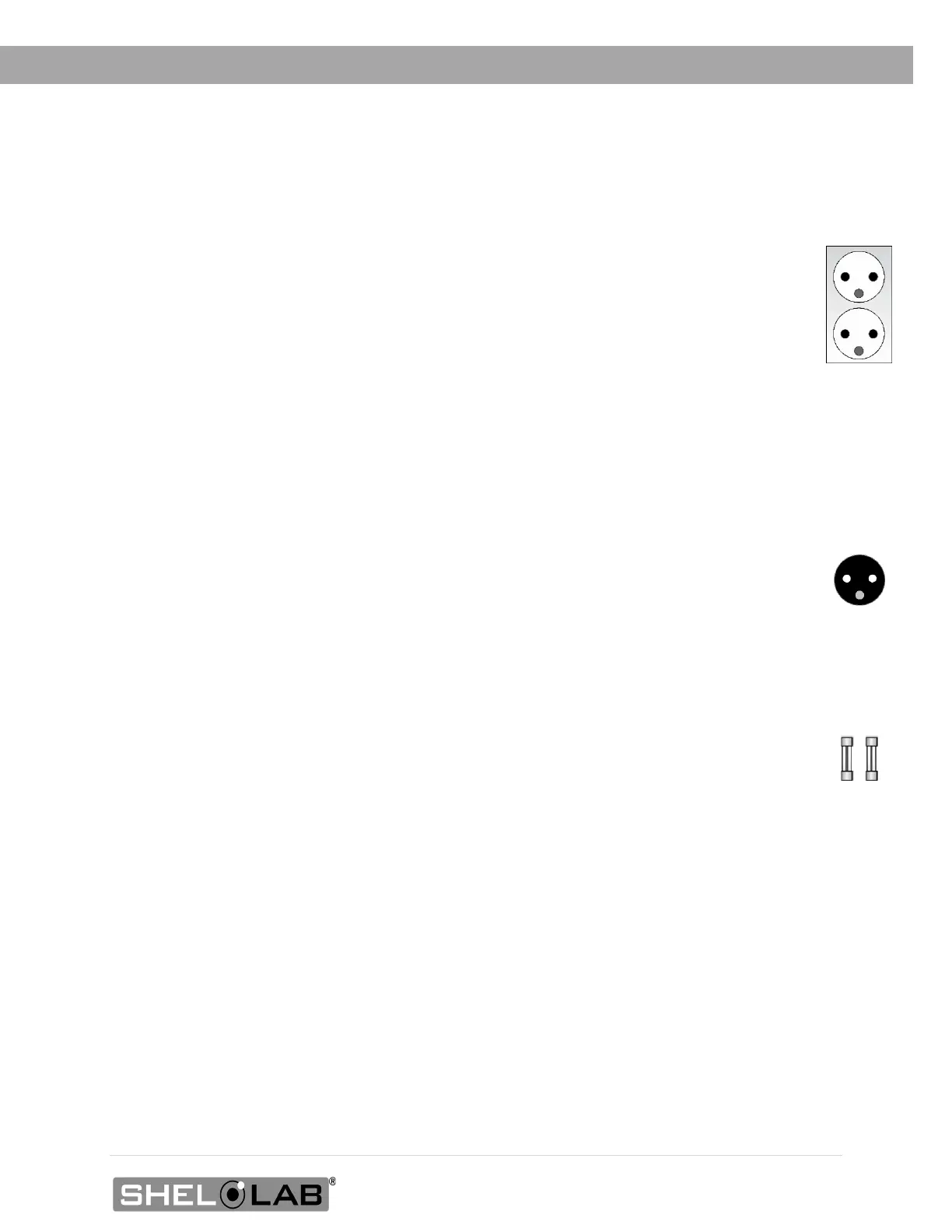

CEE7/7 wall
socket
