INSTALL CHAMBER HEPA FILTER AND CEILING AIR DUCT
The incubator must be unplugged while carrying out this procedure.
Exercise caution when installing the ceiling air duct. A plastic blower fan and the fragile head of the
temperature and CO
2
sensors are located just above the duct and just to the right of the duct.
Attach the HEPA filter to the mounting ring on the ceiling air duct. The filter should snap into
place.
• It may be necessary to tilt the ring slightly to one side while doing so.
Attach the black plastic cap to the HEPA filter. Failure to do so will allow air to blow around
the filter instead of blowing through it.
Place the duct and filter into the chamber, slightly tilted to one side or the other for ease of
movement.
• The filter must be toward the back of the chamber.
Insert the tabbed feet on the duct into the slots on the tops of the shelf standard rails.

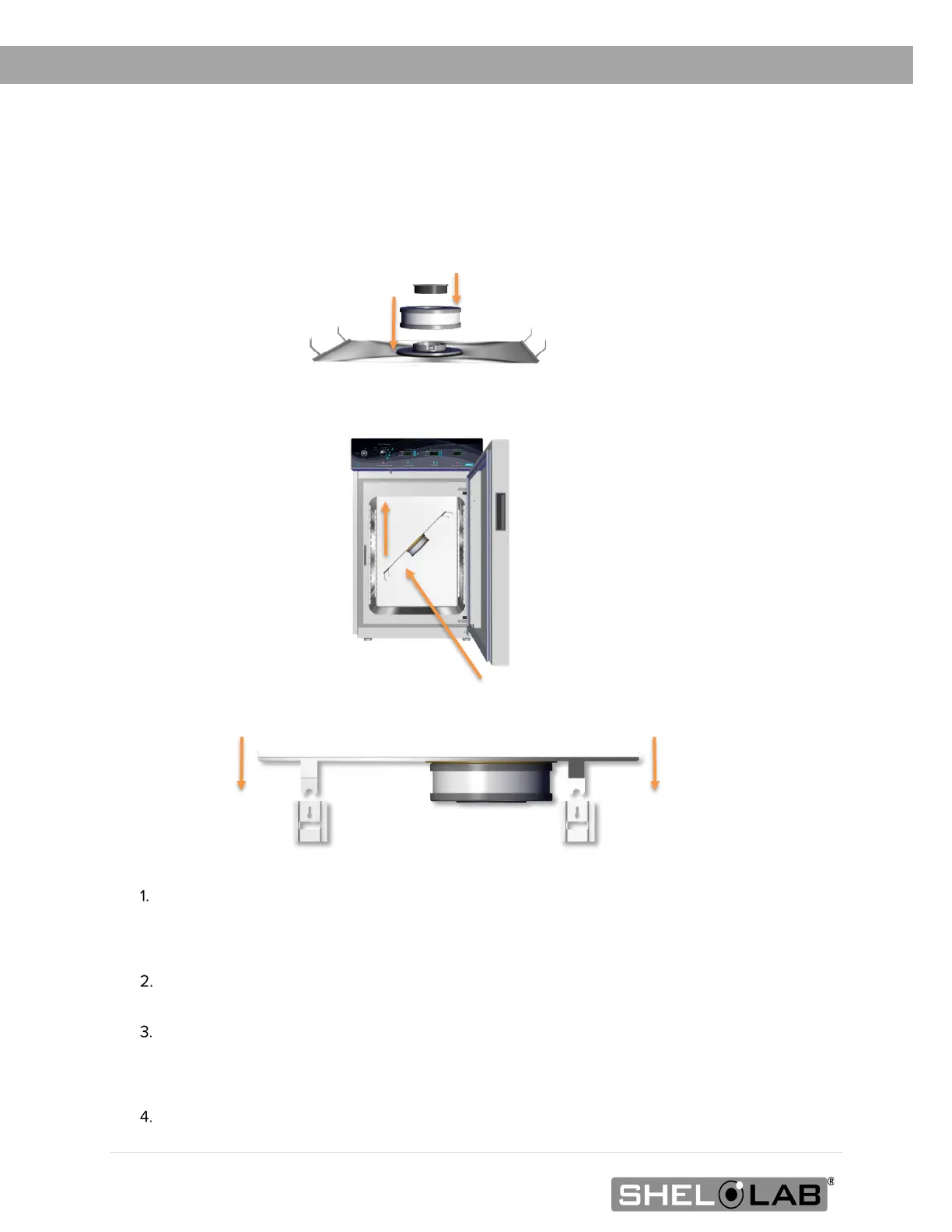

Step 3: Filter and duct feet facing down
Step 2: Attach cap to filter
Step 1: Attach filter to duct
Ceiling Duct: Flipped for ease of
attaching the filter and cap
