19Installation manual – NewMotion Business Pro & Lite 2.1 / 2.2 - 091NMEN13
T20
Ø10 - 13 mm
Ø13 - 15.5 mm
Ø15.5 - 18 mm
Ø18 - 21 mm
Ø21 - 22.5 mm
i

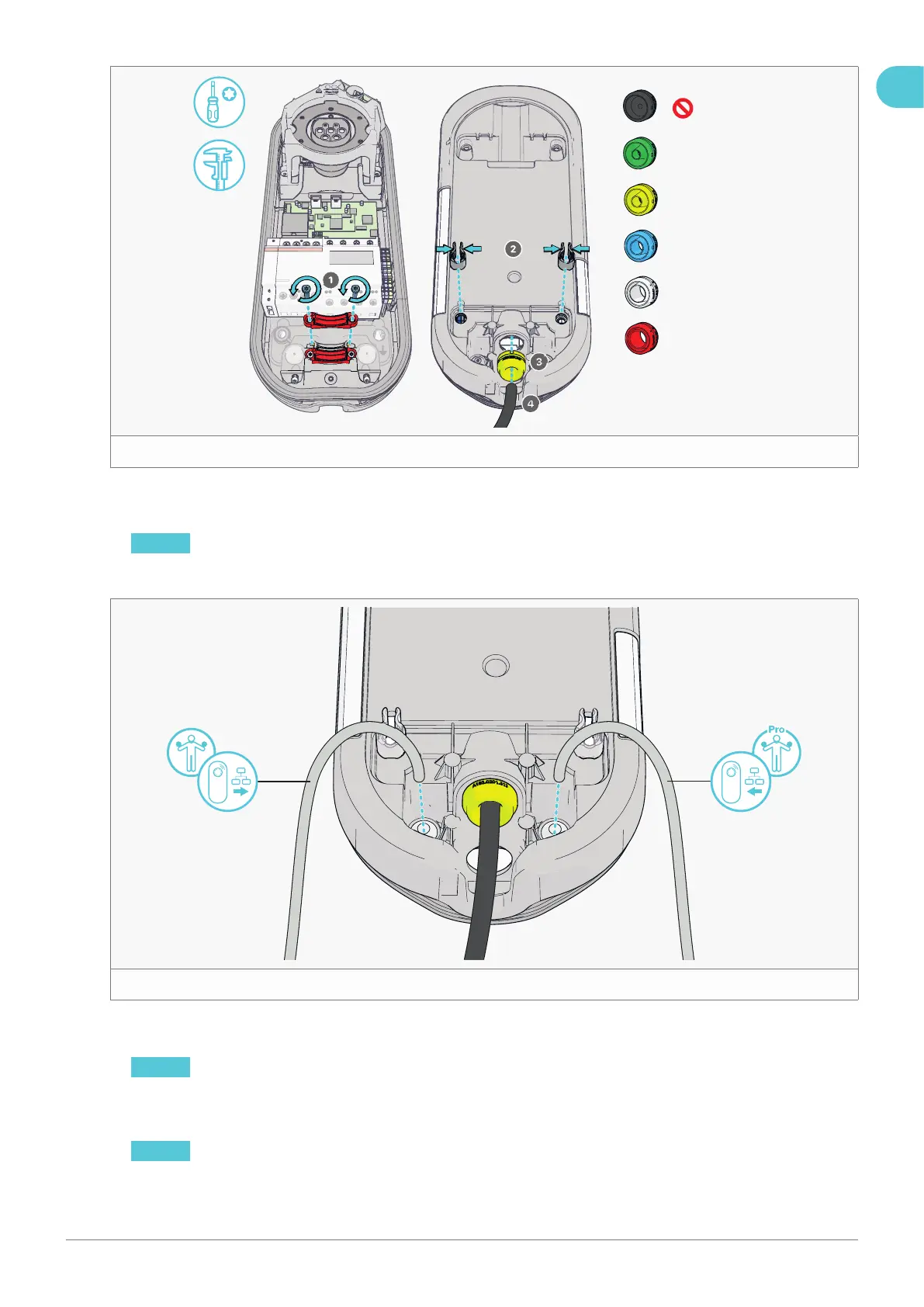

5 . Remove the rear cable clamp (see gure 171 ).
6 . Place the plastic spacers on the back of the casing (see gure 172 ).
7 . Insert the coloured grommet matching the power cable thickness into the rear input hole (see gure 173 ).
NOTICE Use a caliper to measure the thickness of the power cable and determine the correct coloured grommet.
8 . Feed the power cable approx. 15 cm through the coloured grommet. Lubricate if necessary (see gure 174 ).
o
9 . Punch a hole in the grey grommet(s) for the data cable(s) using a screwdriver.
10 . Feed the Ethernet cable for incoming data through the right grommet, as seen from the back. (See gure 18 )
NOTICE For Business Pro charge points: Check the project plan to see if the Business Pro charge point is
connected to the backof ce via Ethernet cable or cellular connection. In case of cellular connection, there is no
Ethernet cable for incoming data.
11 . Feed the Ethernet cable for outgoing data through the left grommet, as seen from the back.
NOTICE For Business Lite charge points: Check the project plan to see if the Business Lite charge point is
connected to a next Business Lite charge point. If this charge point is the last in the con guration, there is no
Ethernet cable for outgoing data.
EN
