25Installation manual – NewMotion Business Pro & Lite 2.1 / 2.2 - 091NMEN13
M8 × 12 mm
b

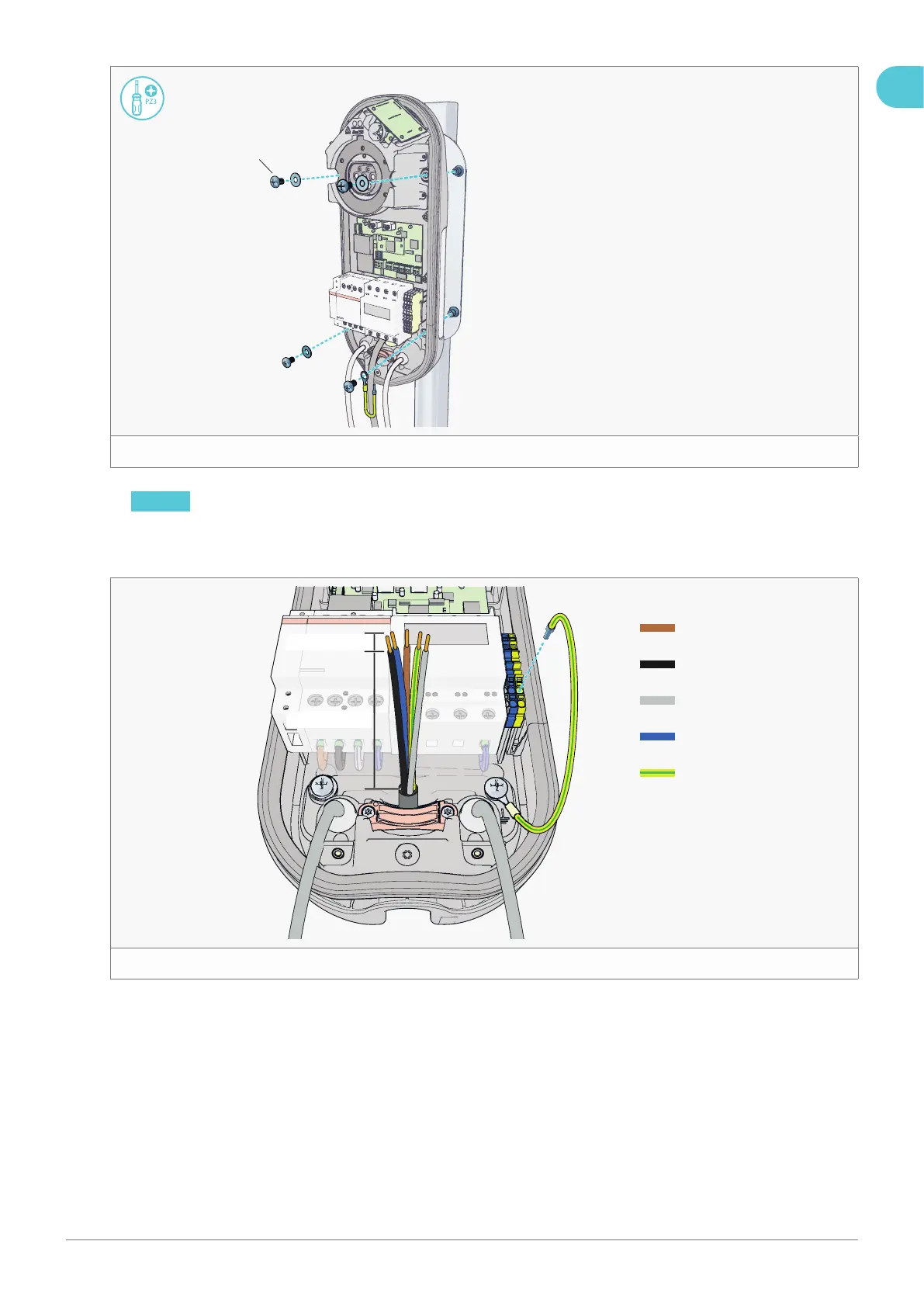

14 . Secure the casing to the pole using 4 provided M8 × 12 mm bolts and washers (see gure 33 ).
NOTICE Secure the supplied earthing wire between the casing and the bottom right screw.
5 . 5 . Electrical connection
5 . 5 . 1 . Power cable
± 10 mm
± 100 mm
L2
L1
L3
N
PE
n
For the next four steps see gure 34 .
1 . Ensure you have ± 15 cm of free power cable, measured from the inlet grommet.
2 . Remove ± 10 cm of the outer insulation from the power cable.
3 . Strip ± 1 cm of the insulation from the ve wires.
4 . Insert the earthing wire into the earth terminal.
EN
