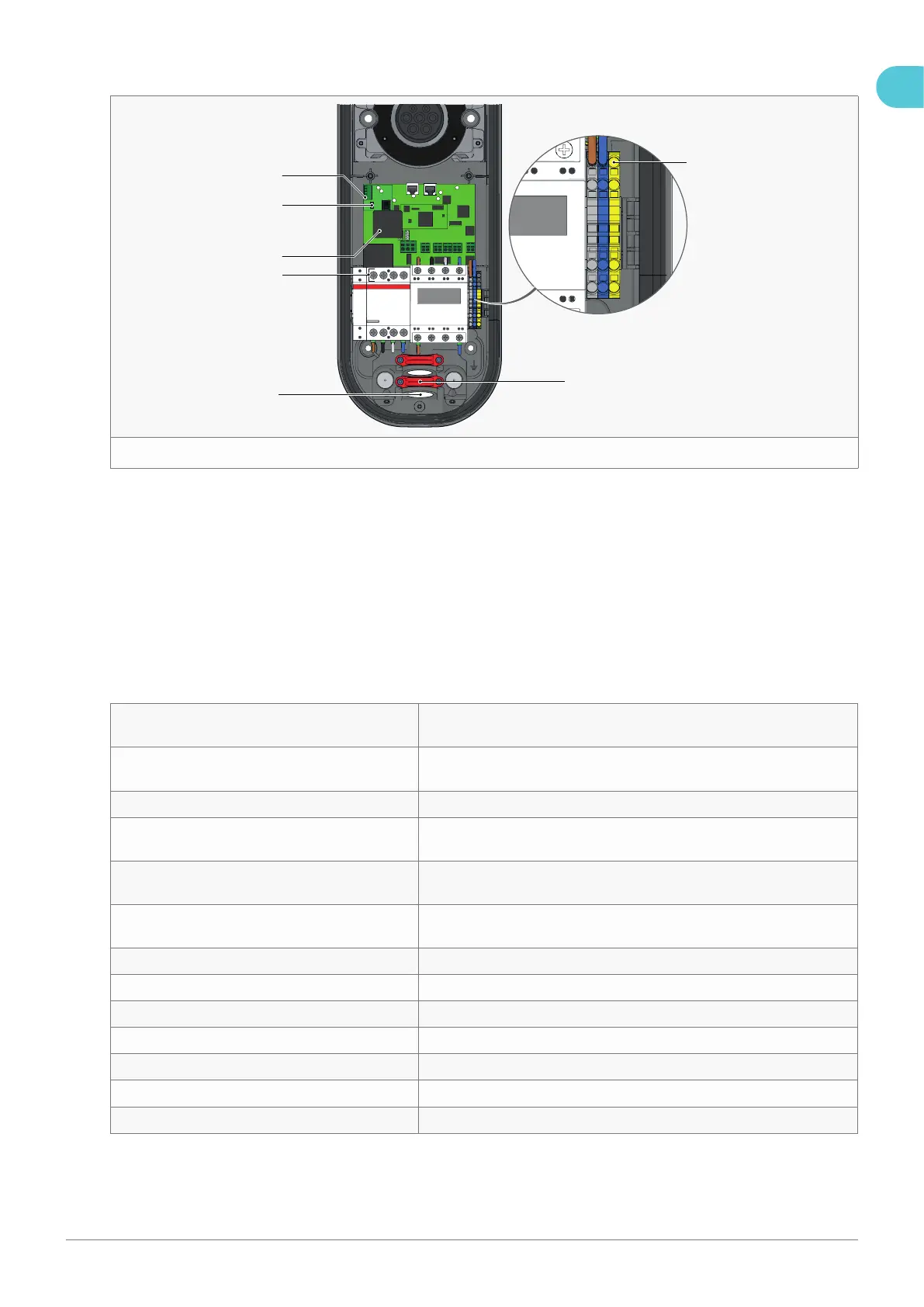

3.2.1. Internal connections for tethered cable
2
3
4
6
7
5
1
3
1. Earthing tethered cable
2. Cable clamp
3. Tethered cable inlet
4. Tethered cable connection. Keep the same
order as the connection under contactor
L1 = portal 1
L2 = portal 2
L3 = portal 5
Neutral = portal 7
5. DC fault detection module
6. Connection DC fault detection module
7. Connector for communication with the car to
red wire
3.3. Technical specifications
Maximum of Business Pro charge points in one
group
1
Maximum of Business Lite charge points per
group
Daisy chain conguration: 15
Star conguration: 40
Models allowed in group Business Pro & Lite 2.0 / 2.1 / 2.2
Serial number format Business Pro (Cable)
Serial number format Business Lite (Cable)
09 1 _ _ _ _ _
08 1 _ _ _ _ _
Maximum charge capacity 1-phase 32 A (7,4 kW)*
3-phase 32 A (22 kW)*
Factory configured charge capacity 1-phase 16 A (3,7 kW)**
3-phase 16 A (11 kW)**
Fail-safe current during data connection failure 8 A per phase
Electric safety category Class I
DC fault current protection Built-in 6 mA fault current protection (≤ 10 sec.)
Dimensions (H × W × D) 503.5 × 200 × 137 mm
Weight ± 4.0 kg
IEC-62262 IK code (robustness) IK10
IEC-60529 IP code (protection class) IP54 (for indoor and outdoor use)
