7Installation manual – NewMotion Business Pro & Lite 2.1 / 2.2 - 091NMEN13

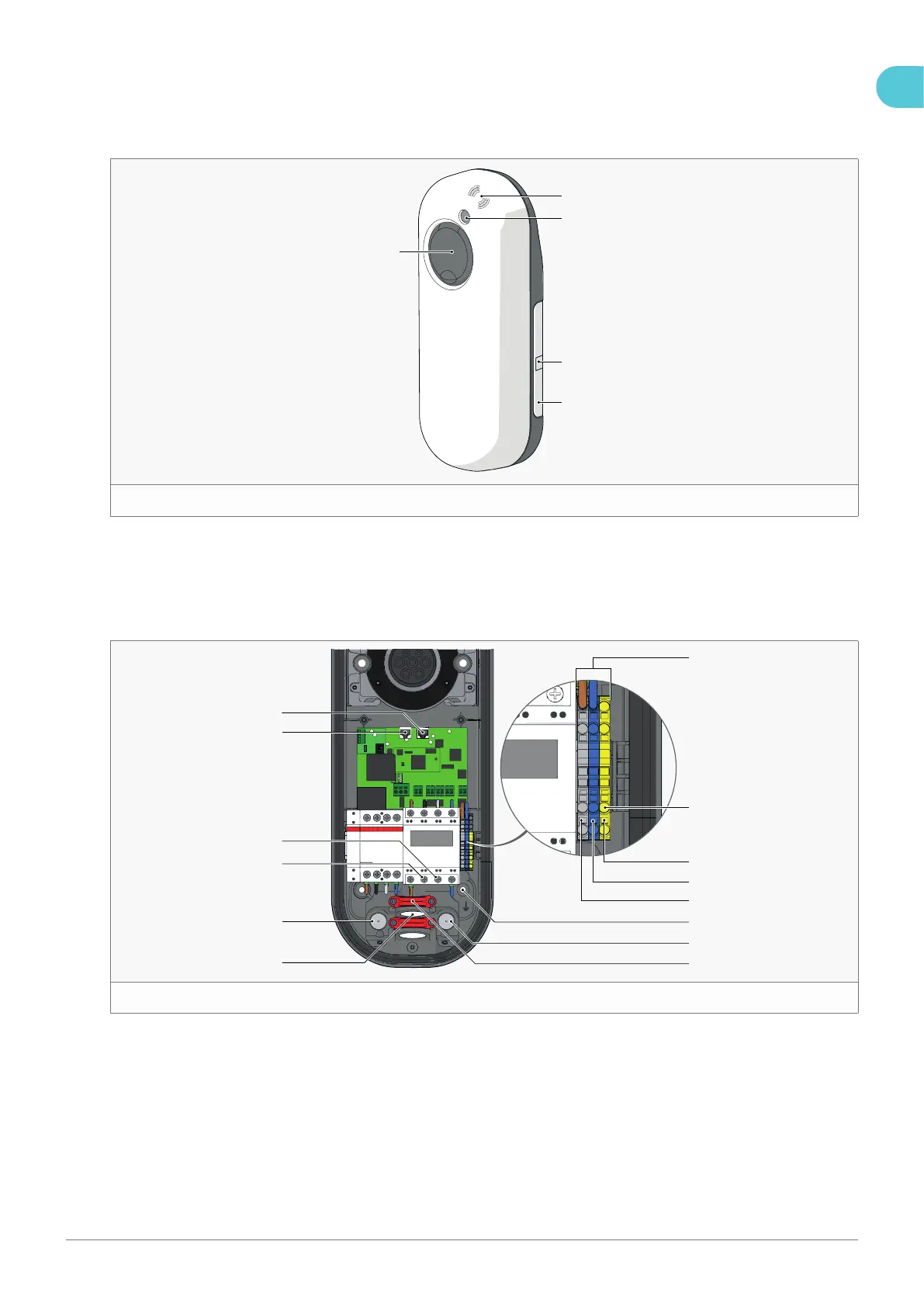

3. Description of the product
3.1. Main parts
1
2
5
3
4
1
1. RFID reader
2. LED status indicator
3. Identication label with serial number
4. Product details
5. Type 2 EV plug socket and cover lid, or dummy
socket for tethered cable
3.2. Internal connections
3
4
5
6
7
8
9
10
11
12
14
13
2
2
1. Terminal blocks
2. Earthing point for pole mount
3. Earth connection
4. Neutral connection
5. Phase 1 connection
6. Earthing pole
7. Data cable inlet with grey rubber rommet
8. Power cable clamps
9. Inlet for power cable
10. Data cable inlet with grey rubber rommet
11. Phase 2 connection
12. Phase 3 connection
13. Ethernet port - incoming data (Business Pro,
upstream Business Lite)
14. Ethernet port - outgoing data (Downstream
Business Lite)
