35Installation manual – NewMotion Business Pro & Lite 2.1 / 2.2 - 091NMEN13
Conductor wire cross section 0.2 - 6 mm2 Solid
0.2 - 4 mm2 Flexible
26 - 14 AWG
Torque (Nm) 0.5 - 0.6 Nm
6.2.2. Rogowski current sensor
General
Insulation Double insulation
Rated insulation voltage 1000 V AC (RMS CAT III)
600 V AC (RMS CAT IV)
Basic accuracy < ±0.21%
Conductor structure single line 2x 0.22mm2 (Signal) tinned
1x 0.22mm2 (Shielding) tinned
Dimensions
Length of measuring coil 300 mm
Diameter of measuring coil 8.3 mm ±0.2 mm
Length of signal cable 3000 mm
Measuring coil diameter when installed 95 mm

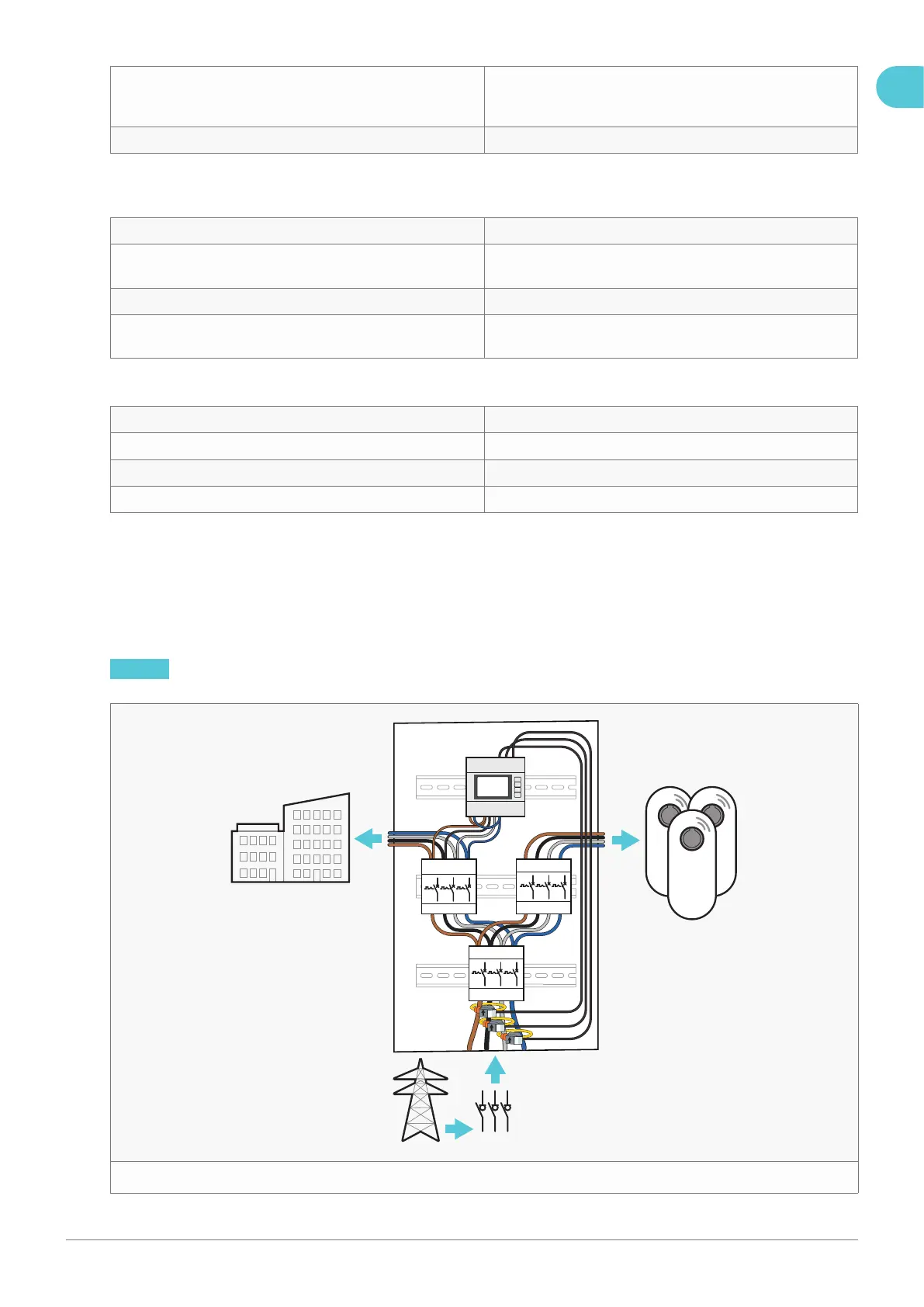

6.3. Installing the DPM for Business module
6 WARNING
The electrical system must be voltage-free during the entire installation procedure. Failing to do so can lead to serious
injury or even death.
NOTICE Carefully read the installation manual of the EMpro power meter and the Rogowski current sensors before
proceeding with the installation.
EMpro
≤16A
H
EN
