11Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13

5. Installation

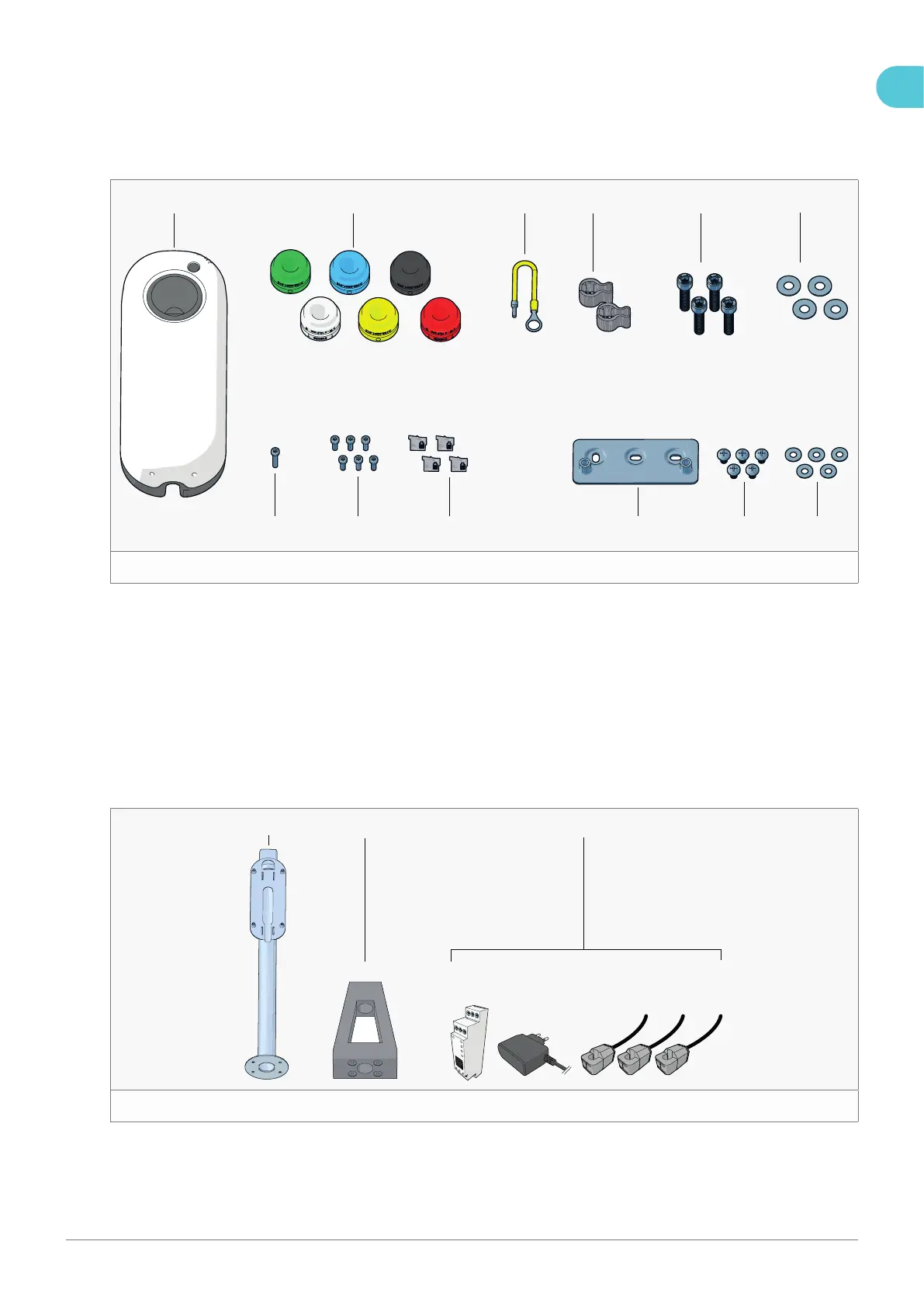

5.1. Scope of delivery/Check the contents

5.1.1. Home Advanced 2.1 / 2.2

1 2 3 4 5 6

789101112

1. Charge point (1×)

2. Coloured grommet 10 - 22.5 mm (6×)

3. Earthing wire (1×)

4. Plastic spacer (2×)

5. M8 × 35 mm Allen bolt (4×)

6. M8 washer - big (4×)

7. M8 washer - small (5×)

8. M8 × 12 mm PZ3 head bolt (5×)

9. Wall mounting bracket (1×)

For wall mount (use only if applicable)

10. M4 × 12 mm Torx bolt (6×)

11. M4 × 20 mm Torx bolt (1×)

12. RJ12 unshielded connector (4×)

5.1.2. Optional

1 2 3

1. Mounting pole

2. Concrete base

3. DPM module
