13Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13
account MCB manufacturer specications and EV-Ready guidelines;
** The electrician is responsible to select a suitable RCD to match the local rules and regulations. Please
note that these may be different from the international rules and regulations.
NOTICE The charge point can be limited between 6 A and 32 A, as described in chapter 6.3. Switching on the product.
5.2.6. Charge point mounting
For wall mounting, use 5 × coach screws (6.3 × 70 mm), washers and plugs.
For pole mounting on a concrete base, use ll sand to cover the hole of the concrete base for optimal stability.
5.2.7. Installation tools and materials
Make sure to have a basic electricians toolkit when installing a NewMotion charge point.

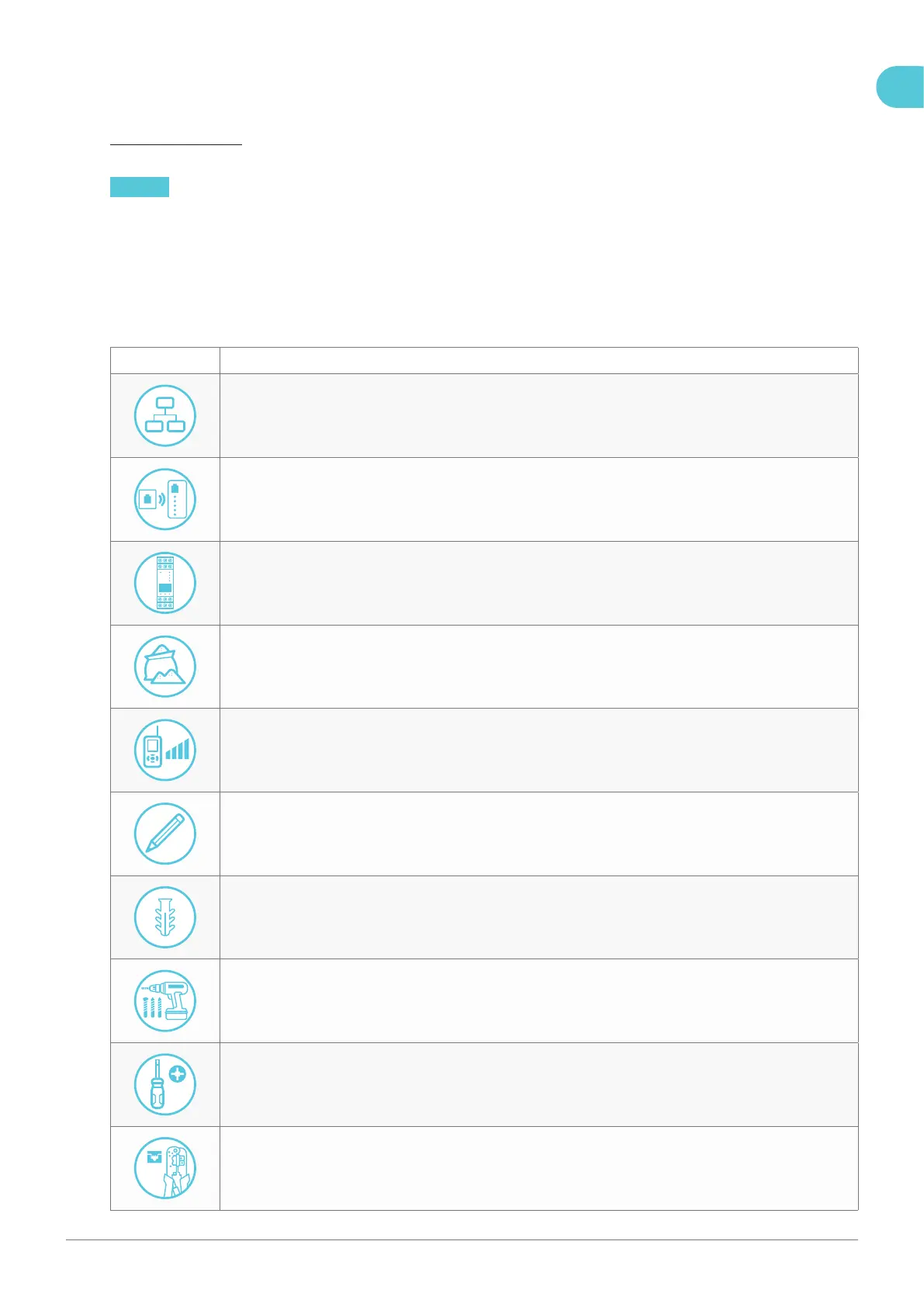

Icon Description
Cabled ethernet connection.
Data cable tester (RJ12 & RJ45).
DPM module.
Fill sand.
Cellular signal strength measuring tool.
Pencil.
Plug for mounting in wall (if applicable).
Power drill and drill bits.
PZ3
PZ3 screwdriver.
RJ12 crimp tool.
