8Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13

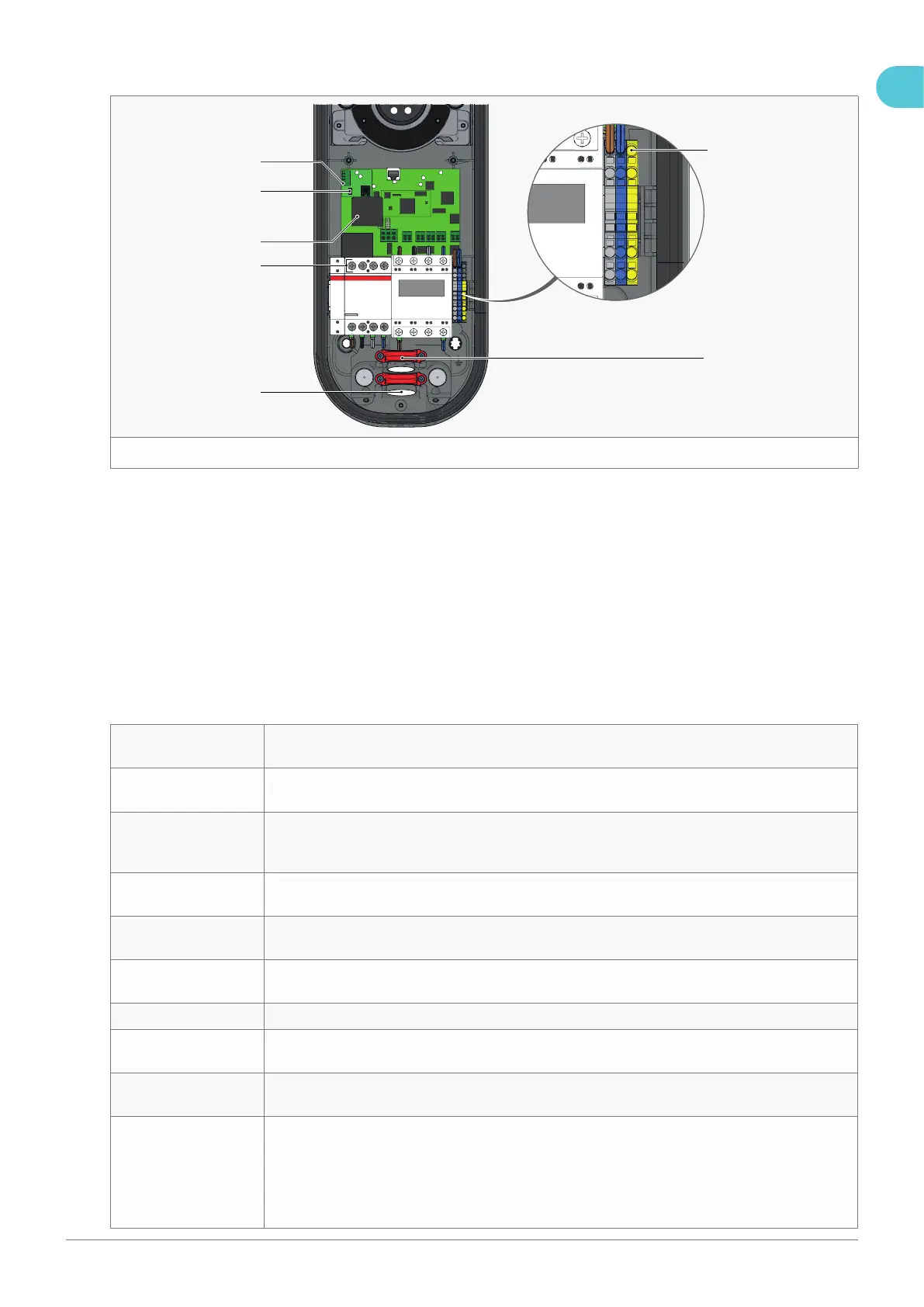

3.2.1. Internal connections for tethered cable
2
3
4
6
7
5
1
3
1. Earthing tethered cable
2. Cable clamp
3. Tethered cable inlet
4. Tethered cable connection. Keep the same
order as the connection under contactor
L1 = portal 1
L2 = portal 2
L3 = portal 5
Neutral = portal 7
5. DC fault detection module
6. Connection DC fault detection module
7. Connector for communication with the car to
red wire
3.3. Technical specifications
Maximum charge
capacity
1-phase 32 A (7,4 kW)*
3-phase 32 A (22 kW)*
Factory configured
charge capacity
1-phase 16 A (3,7 kW)**
3-phase 16 A (11 kW)**
Fail-safe current
during data
connection failure
8 A per phase
Electric safety
category
Class I
DC fault current
protection
Built-in 6 mA fault current protection (≤ 10 sec.)
Dimensions (H × W ×
D)
503.5 × 200 × 137 mm
Weight ± 4.0 kg
IEC-62262 IK code
(robustness)
IK10
IEC-60529 IP code
(protection class)
IP54 (for indoor and outdoor use)
Certificates IEC-61851-1
IEC-61851-22
EV-Ready 1.4 G & ZE-Ready 1.4 G
IEC-62262 -> IK10
IEC-60529 -> IP54
IEC-62955 -> 6 mA DC fault protection
