24Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13
5 . 5 . Electrical connection
5 . 5 . 1 . Power cable
± 10 mm
± 100 mm
L2
L1
L3
N
PE
x

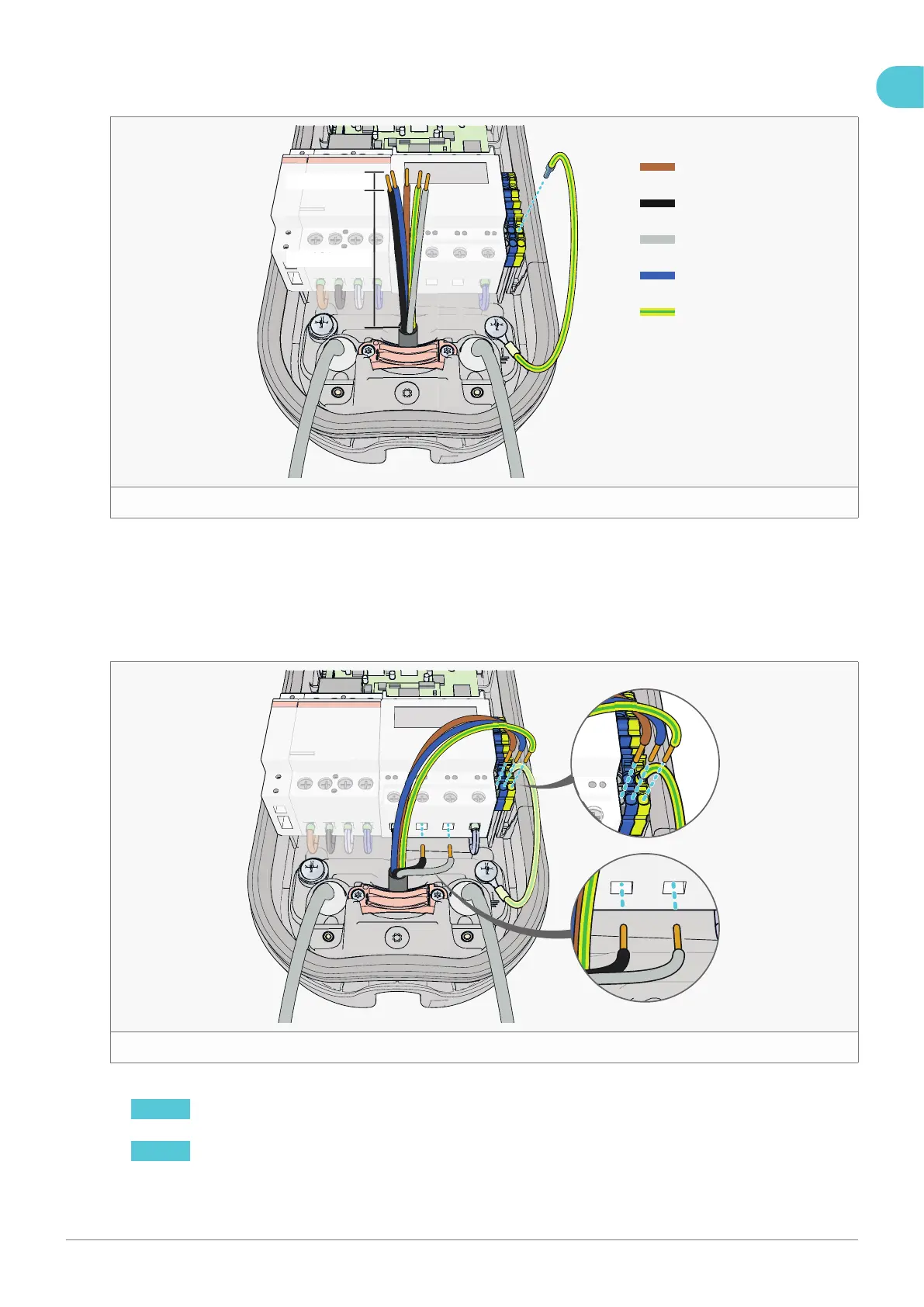

For the next four steps see  gure 30 .
1 . Ensure you have ± 15 cm of free power cable, measured from the inlet grommet.
2 . Remove ± 10 cm of the outer insulation from the power cable.
3 . Strip ± 1 cm of the insulation from the  ve wires.
4 . Insert the earthing wire into the earth terminal.
c
5 . Insert the stripped wires into the matching terminals (see  gure 31 ).
NOTICE Cables L2 and L3 are installed directly into the power meter for 3-phase connection only. Apply a torque
of 2.4 Nm.
NOTICE The L1 cable must always be connected to the grey terminal block.
