28Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13

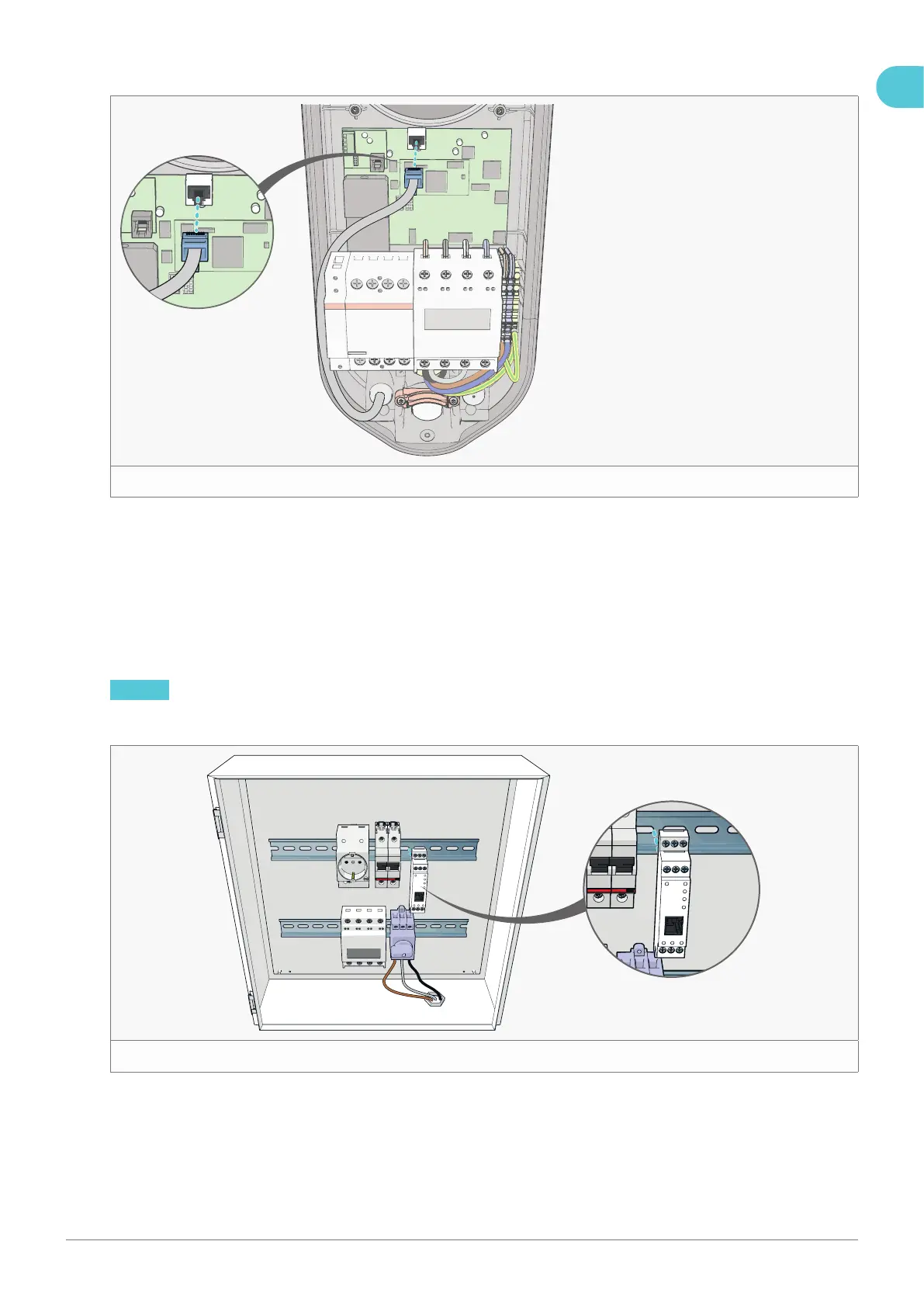

7 . Plug the RJ45 connector into the Ethernet port of the charge point (see  gure 38 ).

8 . Plug the other RJ45 connector into a free Ethernet port on the router.

5 . 7 . Installation DPM module (optional)

If the customer has purchased a Dynamic Power Management (DPM) module along with the charge point, install the

DPM module in the consumer unit, following the steps below. If the DPM module is not included in the package,

proceed to chapter 5 . 7 . 3 . Connecting the charge point to a smart meter.

NOTICE In chapter 5 . 3 . Preparation, you have laid out a DTP data cable for this connection.

5 . 7 . 1 . Installing the DPM for Business module

1 . Mount the DPM module to a free slot on a DIN-rail in the consumer unit (see  gure 39 ).
