16Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13

5 . 4 . Mounting

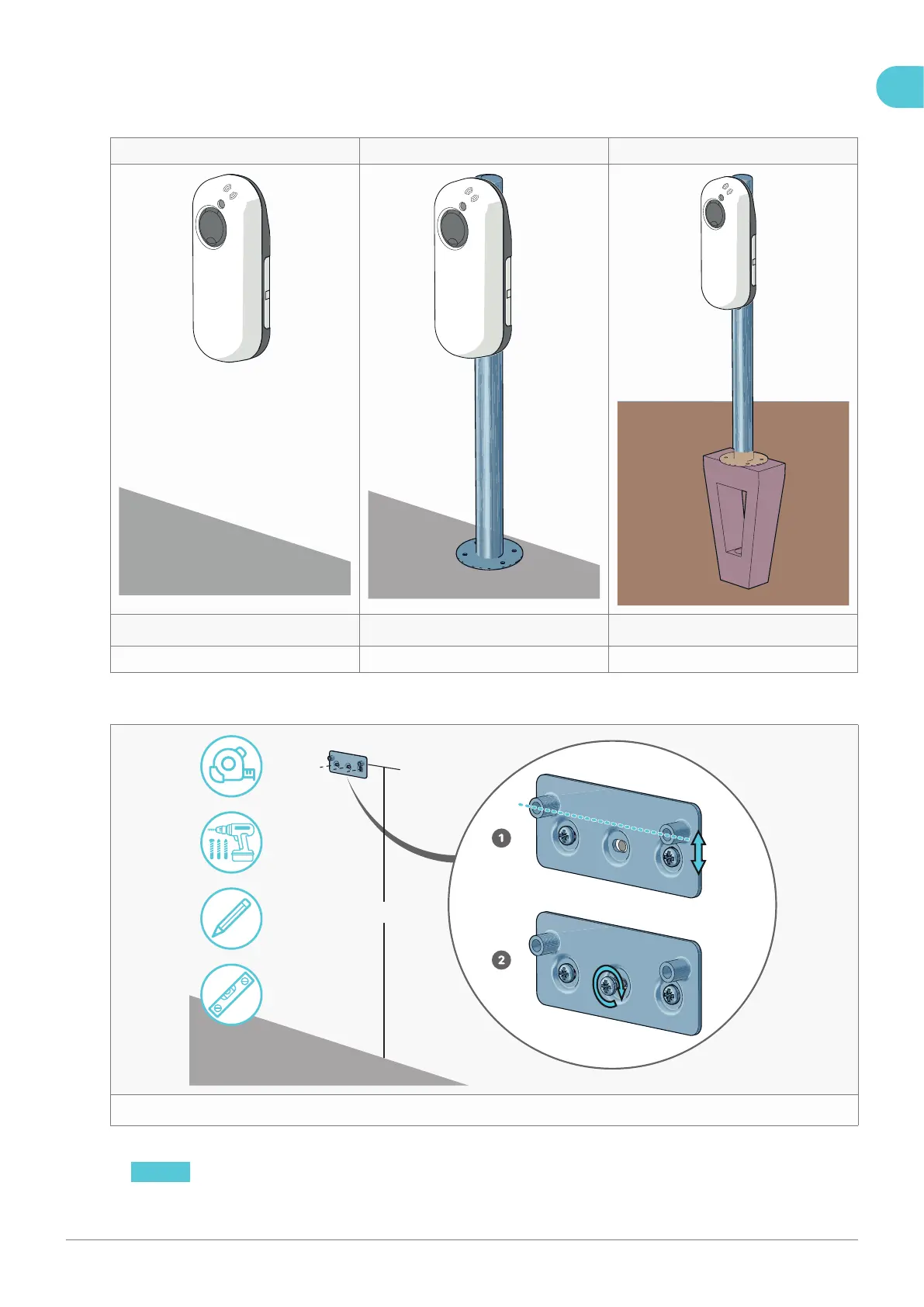

Check the applicable method of installation and continue to the assigned chapter.

Wall mount Pavement mount Soil mount

8 9 q

Go to chapter 5 . 4 . 1 . Wall mount Go to chapter 5 . 4 . 2 . Pavement mount Go to chapter 5 . 4 . 3 . Soil mount

5 . 4 . 1 . Wall mount

±90 cm

1 . Secure the wall bracket to a wall at the appropriate height (± 90 cm) (see  gure 11 ).

NOTICE Make sure the wall is strong enough to withstand the weight of the charge point.
