20Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13

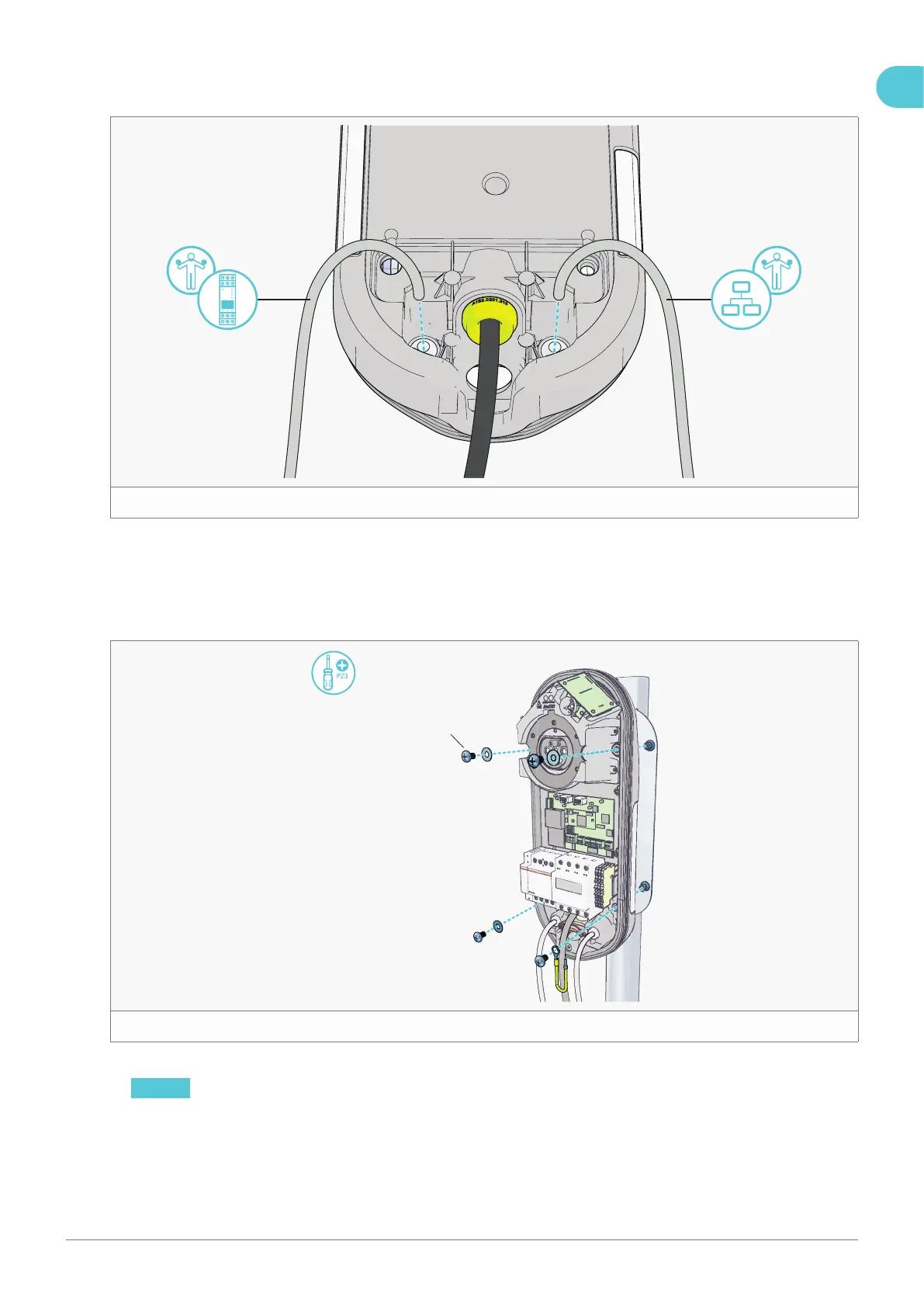

9 . Feed the power cable approx. 15 cm through the coloured grommet. Lubricate if necessary (see gure 193 ).
a
The next three steps are optional (see gure 20 ):
10 . Punch a hole in the grey grommet(s) for the data cable(s) using a screwdriver.
11 . Feed the DPM data cable through the right grommet.
12 . Feed the Ethernet cable through the left grommet.
M8 × 12 mm
s
13 . Secure the casing to the pole using 4 provided M8 × 12 mm bolts and washers (see gure 21 ).
NOTICE Secure the supplied earthing cable between the casing and the bottom right screw.
