26Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13
Ø10 - 13 mm
Ø13 - 15.5 mm
Ø15.5 - 18 mm
Ø18 - 21 mm
Ø21 - 22.5 mm
L2
L1
L3
N
PE
CP
n

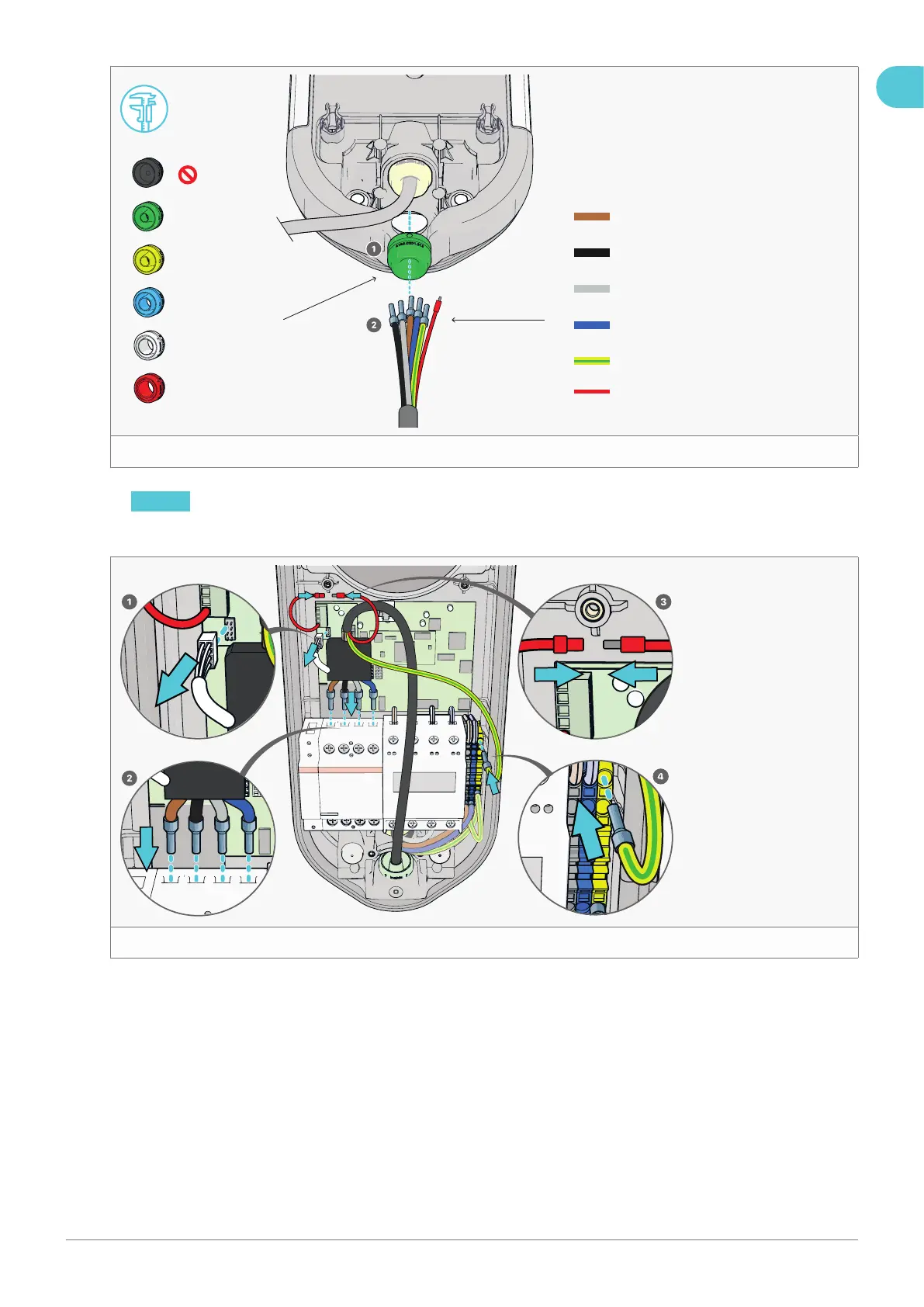

2 . Insert the coloured grommet matching the tethered cable thickness into the front input hole (see  gure 341 ).
NOTICE Use a caliper to measure the thickness of the tethered cable and determine the correct coloured grommet.
3 . Feed the tethered cable through the coloured grommet. Lubricate if necessary (see  gure 342 ).
m
4 . Detach the DC fault detection module (8-pin connector) (see  gure 351 ).
5 . Feed all tethered cable wires except for the earth wire through the DC fault detection module.
6 . Insert the tethered cable wires into the contactors (see  gure 35 2 ).
7 . Connect the red car-communication wire (see  gure 35 3 ).
8 . Insert the earthing wire into the terminal (see  gure 35 4 ).
