 SECTION 2 – OPERATION 
2-2

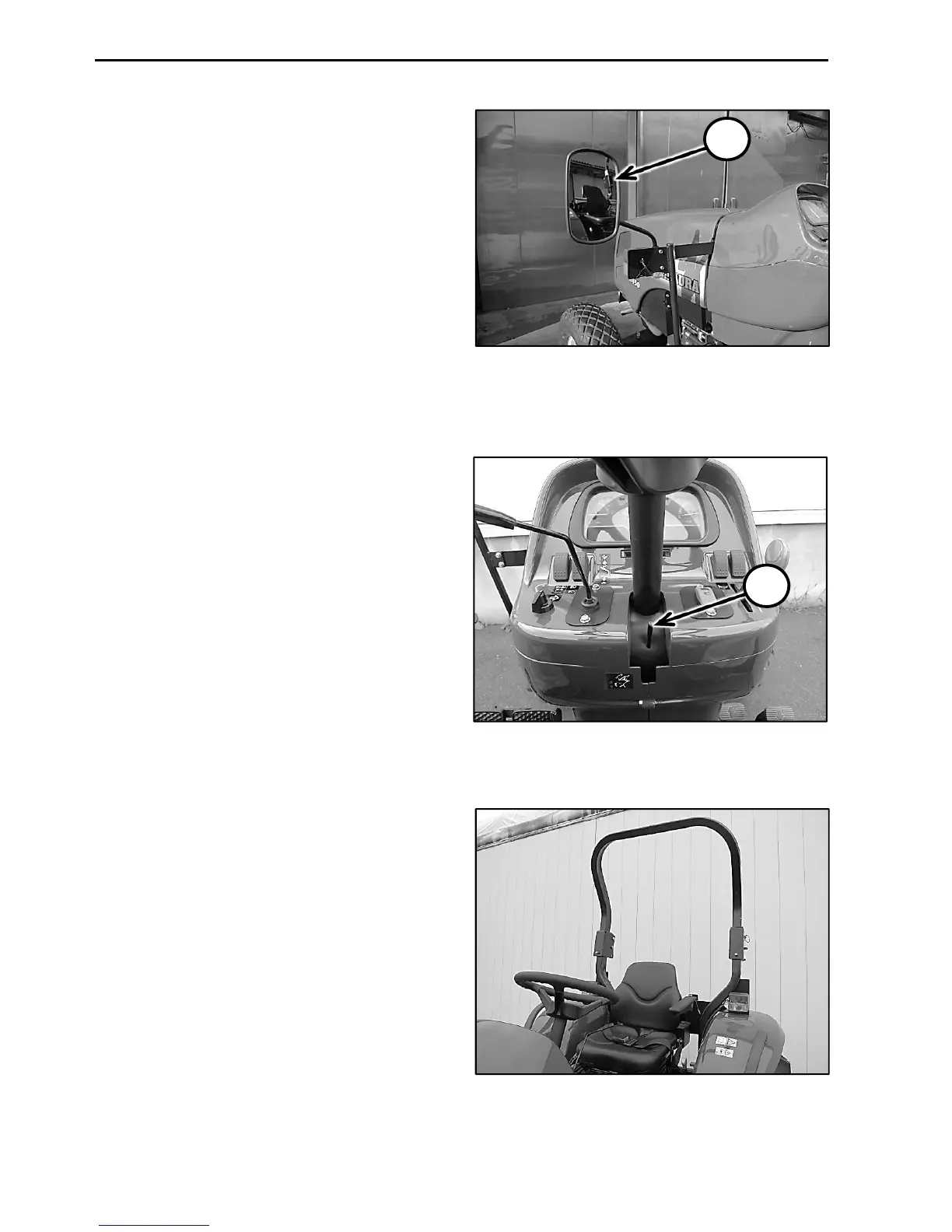

Adjusting the mirror
Your tractor equipped with a mirror (1) in Figure
2-3. The mirror can be moved fore/aft or
outside/inside as desired.
To adjust the mirror, loosen the screw-tightened
clamp for repositioning the mirror.
STEERING WHEEL
Adjusting the Steering Wheel
The tractor is equipped with an adjustable
steering wheel which can tilt.
To tilt the wheel, push forward the lever (2) in
Figure 2-4, and move the steering wheel forward
or backward to the desired position. If the wheel
is not held in position when the lever is raised, the
steering wheel will spring to its most forward
position. Use this feature to gain additional
clearance when mounting and dismounting the
tractor.
ROLLOVER PROTECTIVE STRUCTURE
(ROPS)
Your tractor is equipped with a folding Roll Over
protective Structure (ROPS). If, for some reason,
the ROPS was deleted by the original or has
been removed. It is recommended that you equip
your tractor with a ROPS.
ROPS are effective in reducing injuries during
tractor overturn accidents. Overturning tractor
without a ROPS can result in serious injury or
death.
Roll Over Protective Structure (ROPS), is
available from your SHIBAURA Tractor Dealer.
Figure 2-3
1
2
Figure 2-4
Figure 2-5
