 SECTION 2 – OPERATION 
2-12
Brake Lights

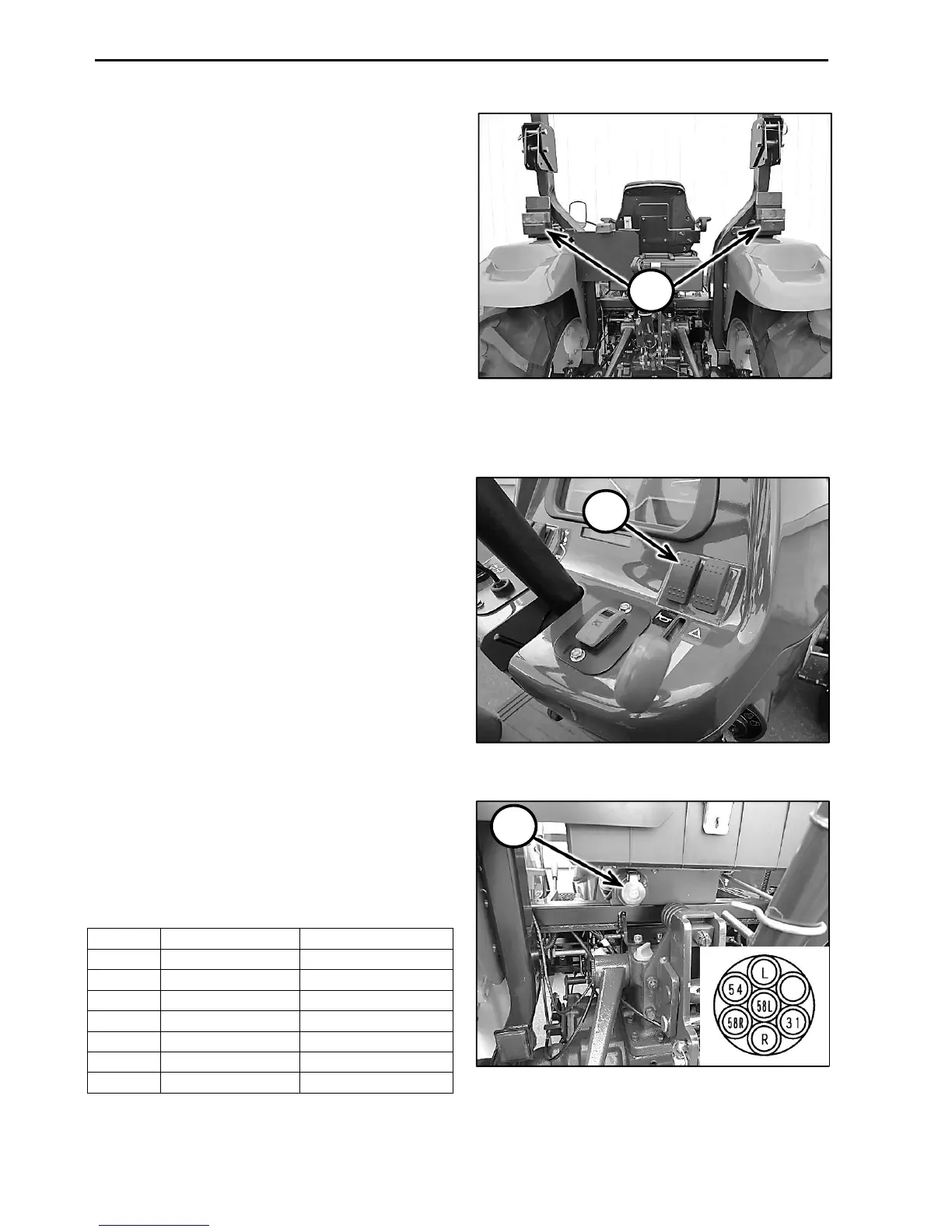

The brake lights (1) in Figure 2-20, are activated
when the brake pedals are depressed, with the
key switch in any position. The brake lights
illuminating, warns anyone following the tractor,
the brakes are being applied and the tractor
ground speed is being reduced.
Horn
To activate the horn, push the rocker switch (2) in
Figure 2-21. Horn can be activated with the key
switch in any position.
ELECTRICAL SOCKET for Trailer
A standard seven pin socket (3) in Figure 2-22, is
provided mounted on the left side of the tractor at
the rear. With reference to the picture inset, the
socket connections (as viewed from the rear of
the tractor) are as follows;
Pin No. Wire Color Circuit
L Green/Red L.H. Turn Signal
Not Used
31 Black Earth (Ground)
R Green/White R.H. Turn Signal
58R Red R.H. Tail lights
54 Green/Orange Brake Lights
58L Red/Black L.H. Tail lights
1
Figure 2-20
2
Figure 2-21
3
Figure 2-22
