SECTION 3 – LUBRICATION AND MAINTENANCE
3-22
FUSE BLOCK

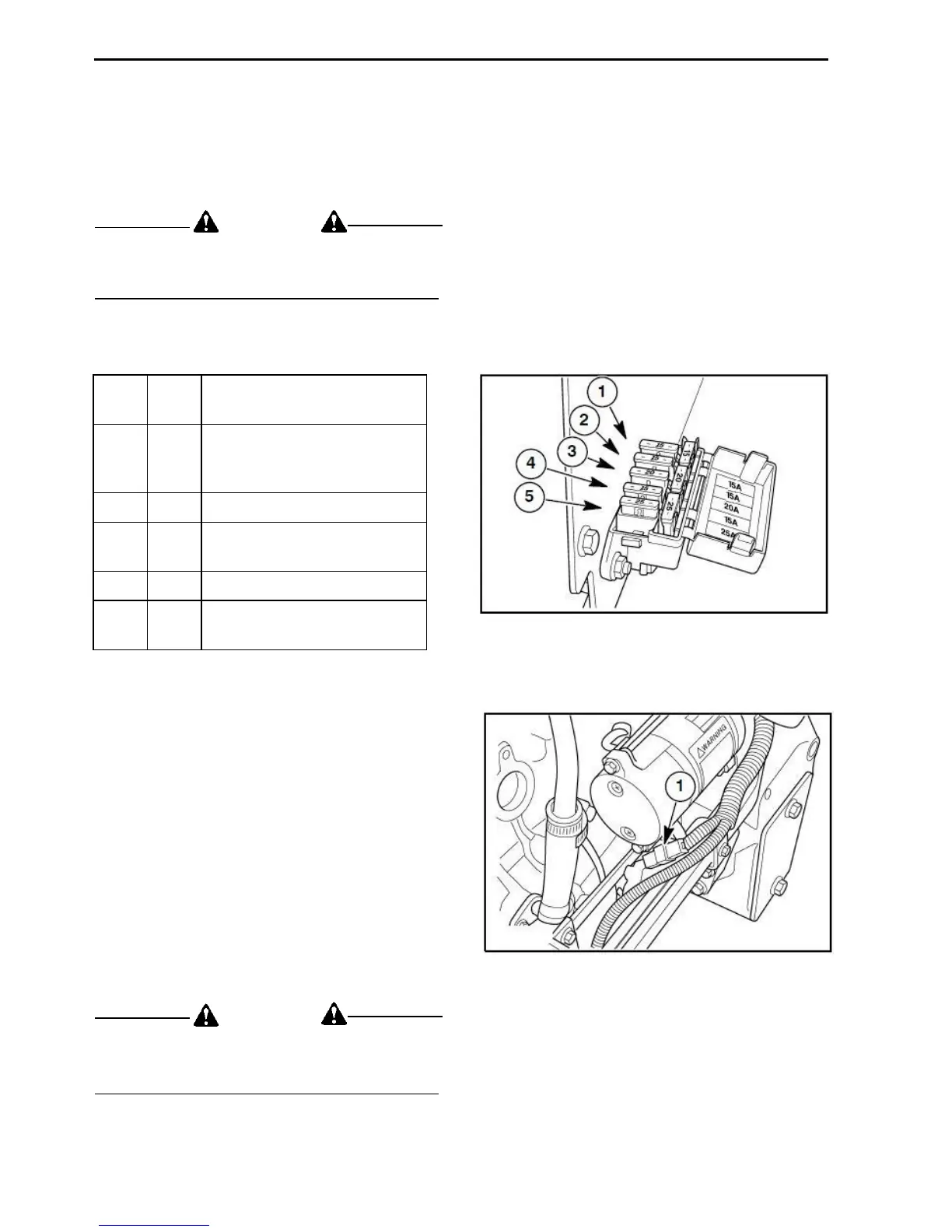

The fuse block in Figure 3-33, is located in the
engine compartment on the right side of the
tractor firewall. Always replace blown fuses with
the size specified for that circuit.
WARNING
Always Disconnect the negative (-) battery
cable from the negative (-) battery terminal
before replace the fuses.
From left to right as viewed from above the tractor,
the fuse block contains the following fuses:
Fuse
Fuse
Size
Circuit Protected
1 15A Alternator, Safety Start,
Indicator Lamps, Gauges,
Road Lights, Tail lights,
2 15A Horn, Brake Lamp,
3 20A Turn Signal, Hazard Lights,
Brake Lamp,
4 15A Work Lamp,
5 25A Road lights, Illumination Lamp
of Instrument Panel.
MAIN FUSE
The main 40-amp fuse (1) in Figure 3-34, is
located on the LH side of the engine, between the
starter and the alternator. This fuse protects the
tractor's entire electrical system.
To replace the main fuse:
1. Unplug the connector, exposing the fuse.
2. Remove the old fuse from the fuse holder and
replace the new one.
IMPORTANT:
Always replace this fuse with a
similar 40
amp fuse; DO NOT increase the
amperage rating.
WARNING
Always Disconnect the negative (-) battery
cable from the negative (-) battery terminal
before replace the fuses.
Figure 3-33
Figure 3-34
