REAR REMOTE CONTROL VALVE(S)
(OPTIONAL)
Your tractor can be equipped with one, two or
three rear remote valves. The control lever(s) are
located on the right-hand control pod, #1 remote
(1) in Figure 2-58, #2 remote (2) in Figure 2-58.
To operate the single-spool valve, pull the control
lever rearward to extend the cylinder. Push the
control lever forward to retract the cylinder.
Release the control lever to stop the cylinder in
any position. The lever automatically returns to
neutral.
The rear remotes are equipped with 1/2” quick
couplers.
NOTE: The lever automatically returns to neutral,
when the cylinder reaches the limit of its stroke in
either direction of travel.
WARNING
Before disconnecting cylinders or equipment,
make sure that the implement or equipment is
supported securely.
Remote couplers must be properly mounted
and securely fastened to the tractor-mounting
bracket for proper functioning of the safety
disconnect feature.
SWITCHING BETWEEN SINGLE AND
DOUBLE ACTING CYLINDERS
To switch a single acting cylinder to a double
acting cylinder, tighten the switching valve
adjustment screw completely. To switch a double
acting cylinder to a single acting cylinder,
unscrew the adjusting screw.

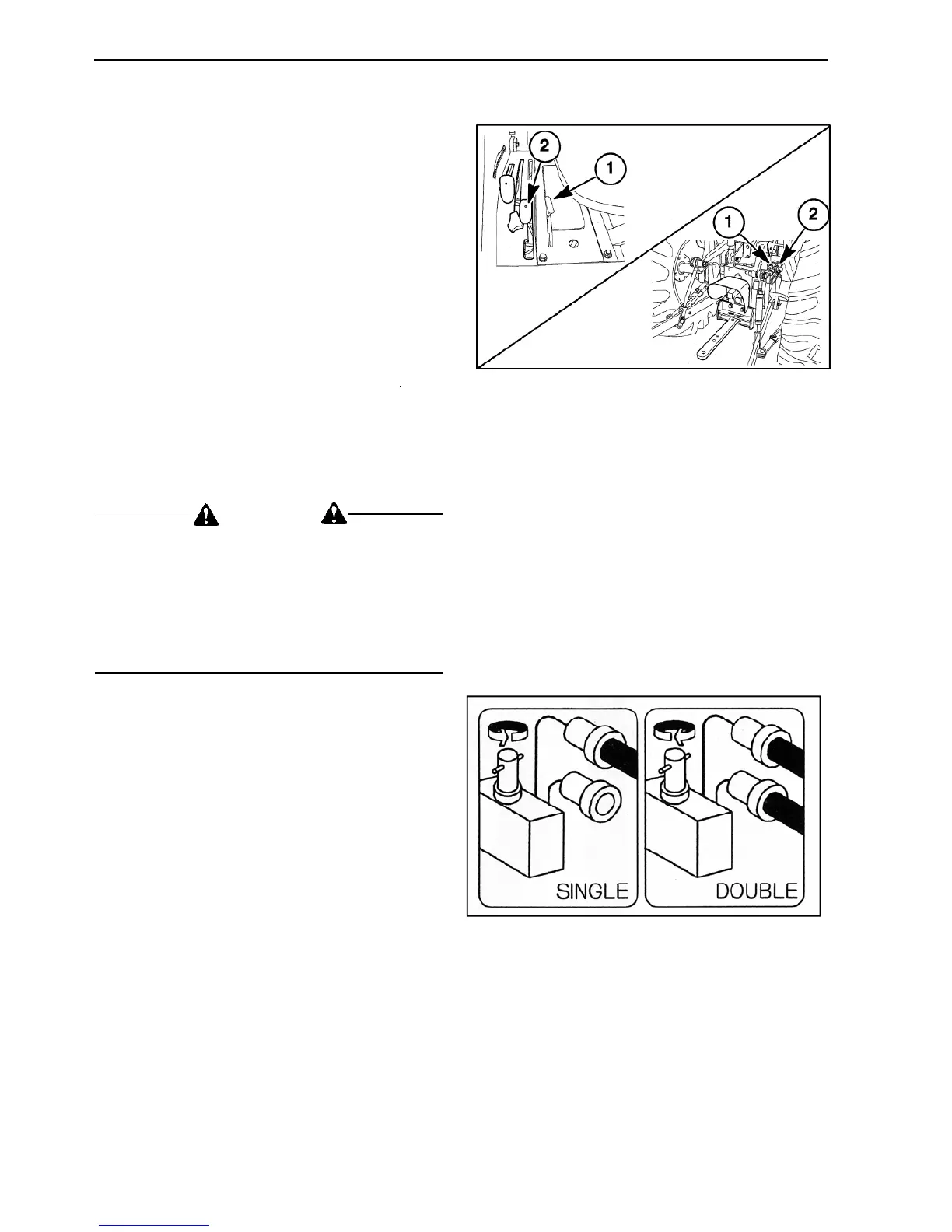

Fi
g
ure 2-58
Fi
g
ure 2-59
