Shibaura ST450 - Head Lamp; Taillight; Flasher Warning Light;Side and Front Position Light

 SECTION 3 – LUBRICATION AND MAINTENANCE 
3-23
HEAD LAMP
If any of the two head lamps fails to operate, the
bulb must be replaced. To change the bulb:
1. Open the tractor hood.
2. Disconnect the negative (-) battery cable
from the negative (-) battery terminal before
replace the fuses.
3. Remove the connector (1) in Figure 3-35,
and rubber (2) in Figure 3-35, from the
housing.
4. Take off the spring.
5. Remove the bulb.
6. Install a new bulb and install the spring,
rubber and connector.
IMPORTANT: Be careful not to touch the bulb
with bare fingers. Oil from the fingers can shorten
the life of the bulb. Use a protective cloth or glove
when installing the new bulb.
TAILLIGHT / FLASHER WARNING LIGHT/SIDE
AND FRONT POSITION LIGHT
The tractor is equipped with two taillights (1) in
Figure 3-36, and four flasher-warning lights (2) in
Figure 3-36, 3-37, and two side-and-front position
lights (3) in Figure 3-37, mounted on the ROPS
and mirror stay.
To replace the bulbs:
1. Disconnect the negative (-) battery cable from
the negative (-) battery terminal before
replace the fuses.
2. Remove the two screws securing the lens to
the housing.
3. Remove the lens, and then remove the bulb.
4. Install a new bulb and reinstall the lens and/or
rim assembly.
2
1

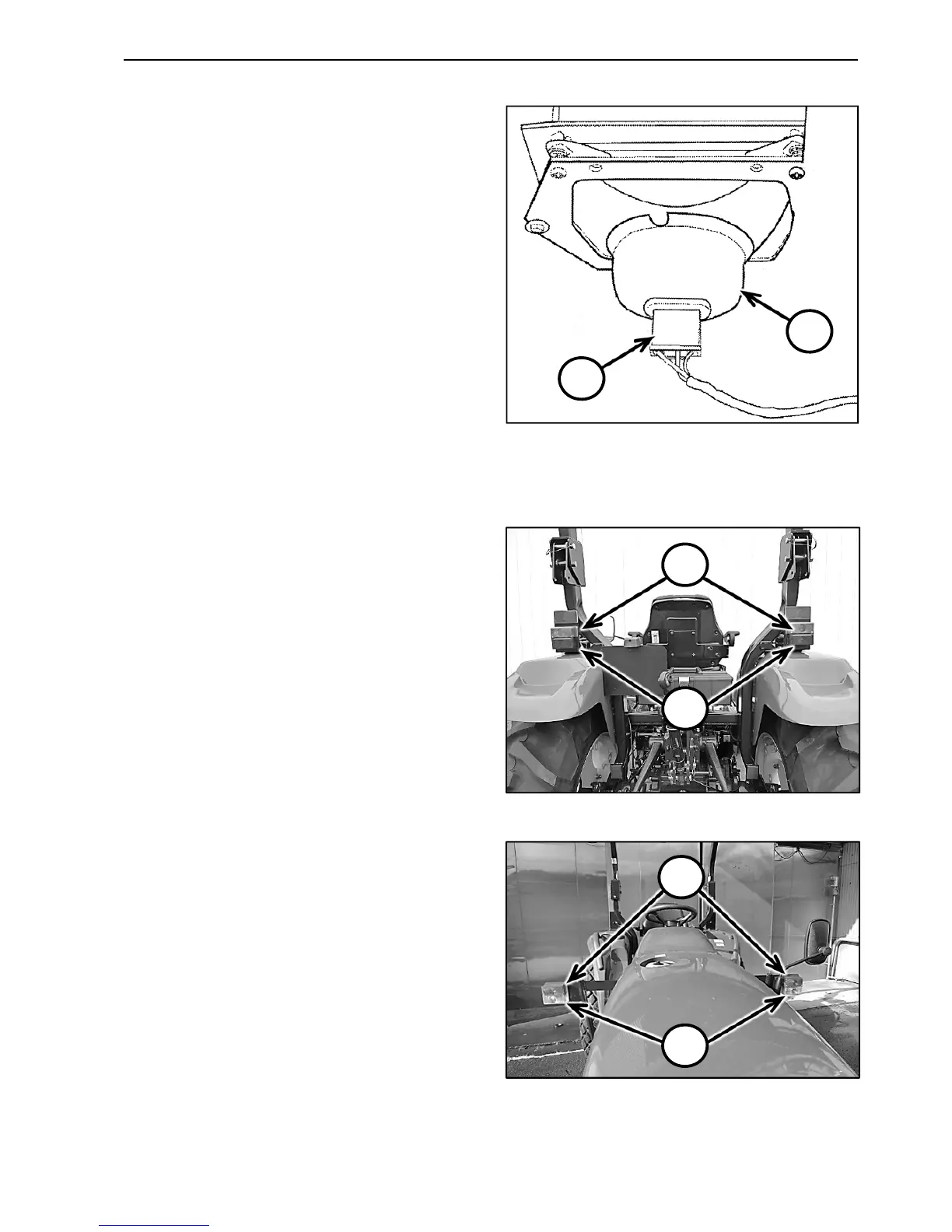

Figure 3-35
2
3
Figure 3-37
2
1
Figure 3-36
