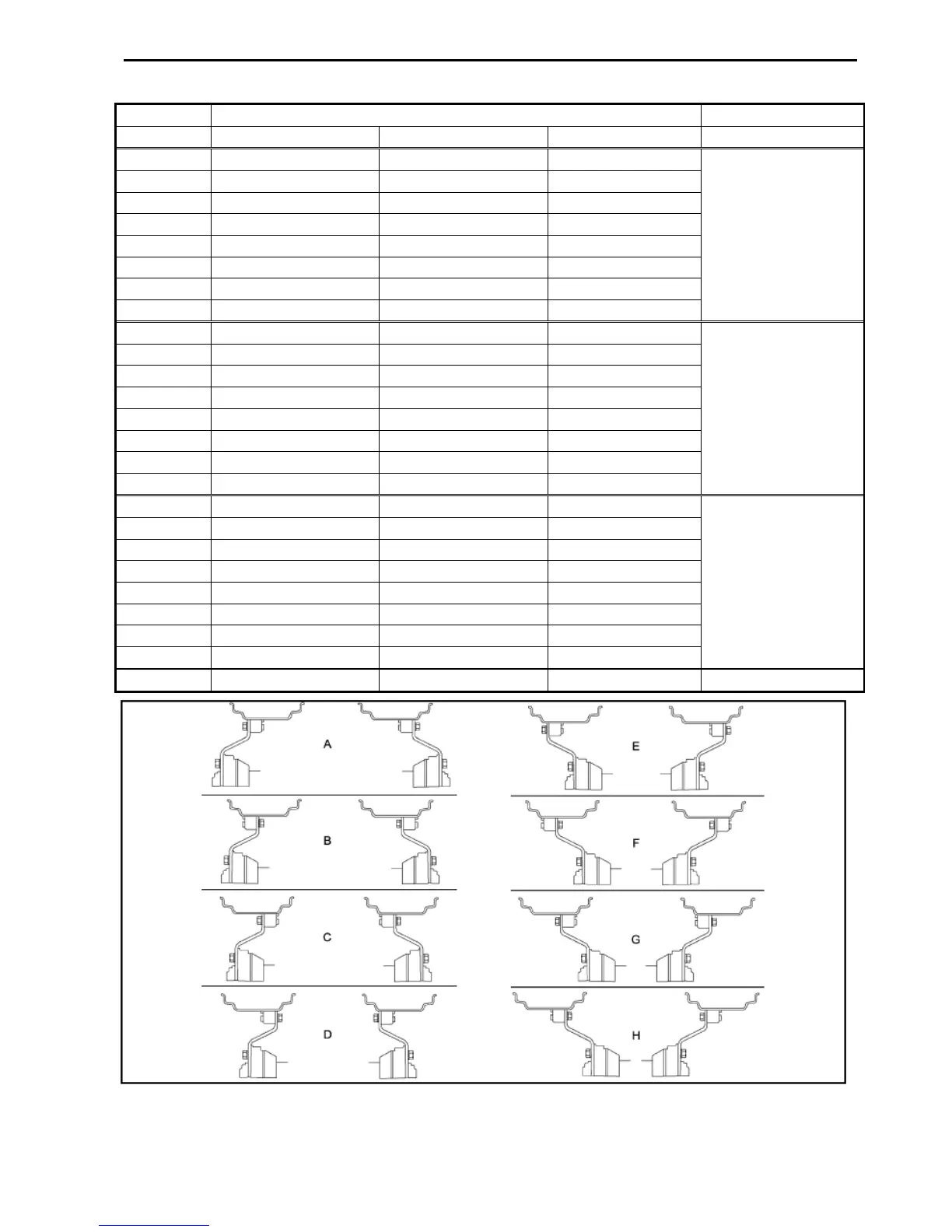

Shibaura ST450 - Page 67

 SECTION 2 – OPERATION 
2-35
Position Rear FWD Tire Dimensions, mm Tire Type
Inside To Inside Tread Setting Outside To Outside
A N/A N/A N/A
AG
13.6 - 24
B 840 1,175 1,510
C 792 1,127 1,462
D 890 1,225 1,560
E 994 1,329 1,664
F 1,092 1,427 1,762
G 1,044 1,379 1,714
H 1,142 1,477 1,812
A N/A N/A N/A
Large Turf (FD)
13.6 - 28
B 820 1,175 1,530
C 772 1,127 1,482
D 780 1,225 1,580
E 974 1,329 1,684
F 1,072 1,427 1,782
G 1,024 1,379 1,734
H 1,122 1,477 1,832
A N/A N/A N/A
Industrial (R4)
17.5L - 24
B N/A N/A N/A
C 771 1,223 1,685
D 869 1,321 1,773
E 781 1,233 1,685
F 879 1,331 1,783
G 1,023 1,475 1,927
H 1,121 1,573 2,025
805 1,269 1,733 TURF 475/65D20
Fi
g
ure 2-61
