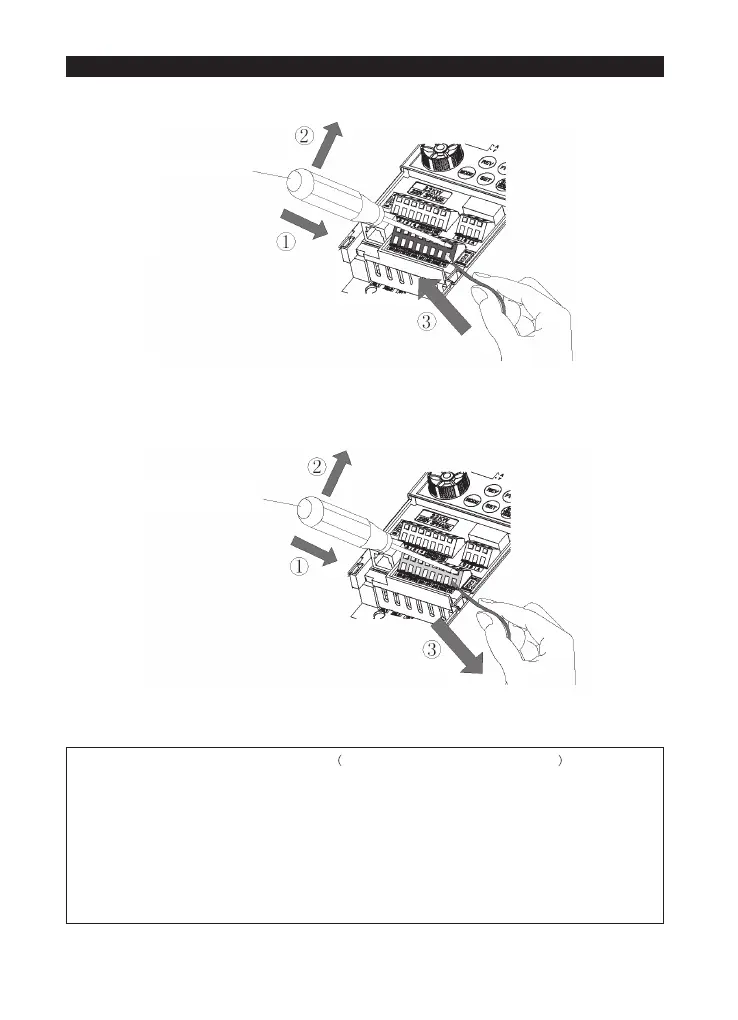

5. Wiring installation
First insert slotted screwdriver with terminal blocks, pressing terminal blocks down, and then insert
the electric wires.
6. Wiring demounting
First insert slotted screwdriver with terminal blocks, and pressing terminal blocks down, and then
pull out the wire.
Note: 1. Screwdriver, use small slotted screwdriver the tip thickness: 0.4mm/tip width: 2.5mm .
2. If you use the screwdriver tip width too narrow, and may cause Terminal damage.
3. Please alignment terminals pressing dowm with the slotted screwdriver, head of the sliding may cause
damage or injury accident inverter.
4. Only qualified electrical professional personnel can carry out the installation, wire arrangement,
dismounting and maintenance.
5. Please follow the wire arrangement notice. In case the installation has not been fully complied with, and
damage of the inverter or dangerous accidence thus be resulted in, our company will not undertake any
legal responsibility. In case there is any question on the wire arrangement, please feel free to contact us.
Slotted screwdriver
Slotted screwdriver
