33
Primary Operation
Primary Operation

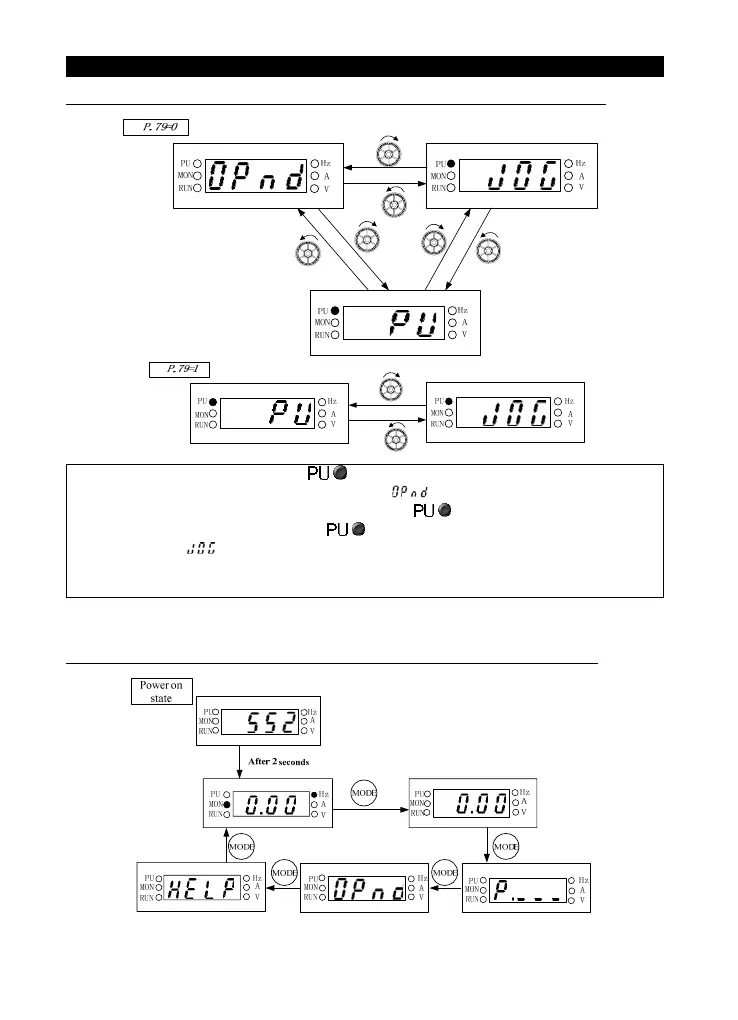

4.1.1 The flow chart for transferring operation modes with operation panel
Note: 1. At the PU mode, the indicating lamp in the operation panel will be lit up.
2. At the external mode, the display screen will display
3. At the combined mode 1, 2, 3, 4 or 5, the indicating lamp will flicker.
4. At the JOG mode, the indicating lamp
will be lit up, and at the same time the display screen
will display
while the motor is not running.
5. The operation mode will be constant if P.79 is equal to 2, 3, 4, 5, 6, 7 or 8, so there are no flow charts for
it.
4.1.2 The flow chart for transferring working modes with operation panel
