Primary Operation
Primary Operation

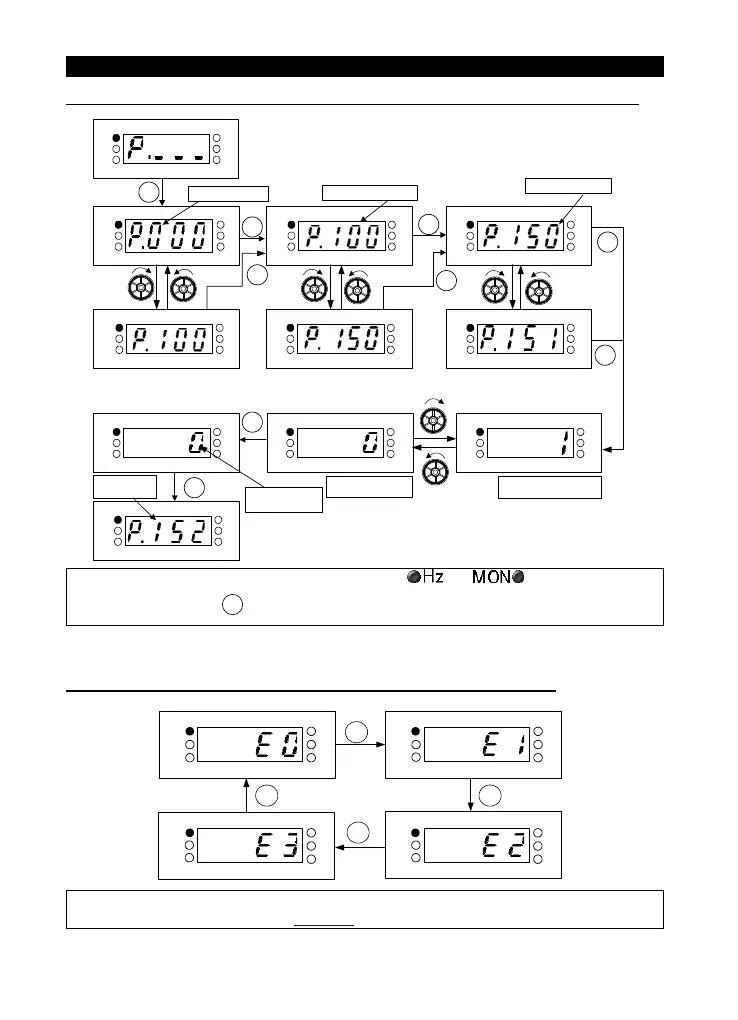

4.1.5 Operating flow chart for the parameter setting mode with operation panel
Note: At the parameter setting mode, both the indicating lamp of and will be off. Please make
sure to hold down the
SET
key for more than 0.5s when writing for the set value of the parameters.
4.1.6 Operating flow chart for the HELP mode with operation panel
Note: 1. Browse different alarm record, the screen shows the recent 4 groups different alarm code.
2. For the alarm code, please refer to Appendix 2
.
Over
